Cloud Kit Based on RX65N MCU Group
Jump to Page Section:
Overview
Description
The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services. With Renesas’ LTE Cellular CAT-M1 module RYZ014A and ethernet network connectivity options the kit provides seamless cloud connectivity experience to most of the global cloud service providers. The kit has complete software stack support using FreeRTOS, Azure RTOS and other middleware stacks, thereby making it an ideal platform for efficiently developing cloud solutions and greatly reducing the time-to-market. For more information on the development environment, please refer to RX Cloud Solutions.
Visit Renesas Cloud Solutions for complete cloud solution package.
Kit Contents

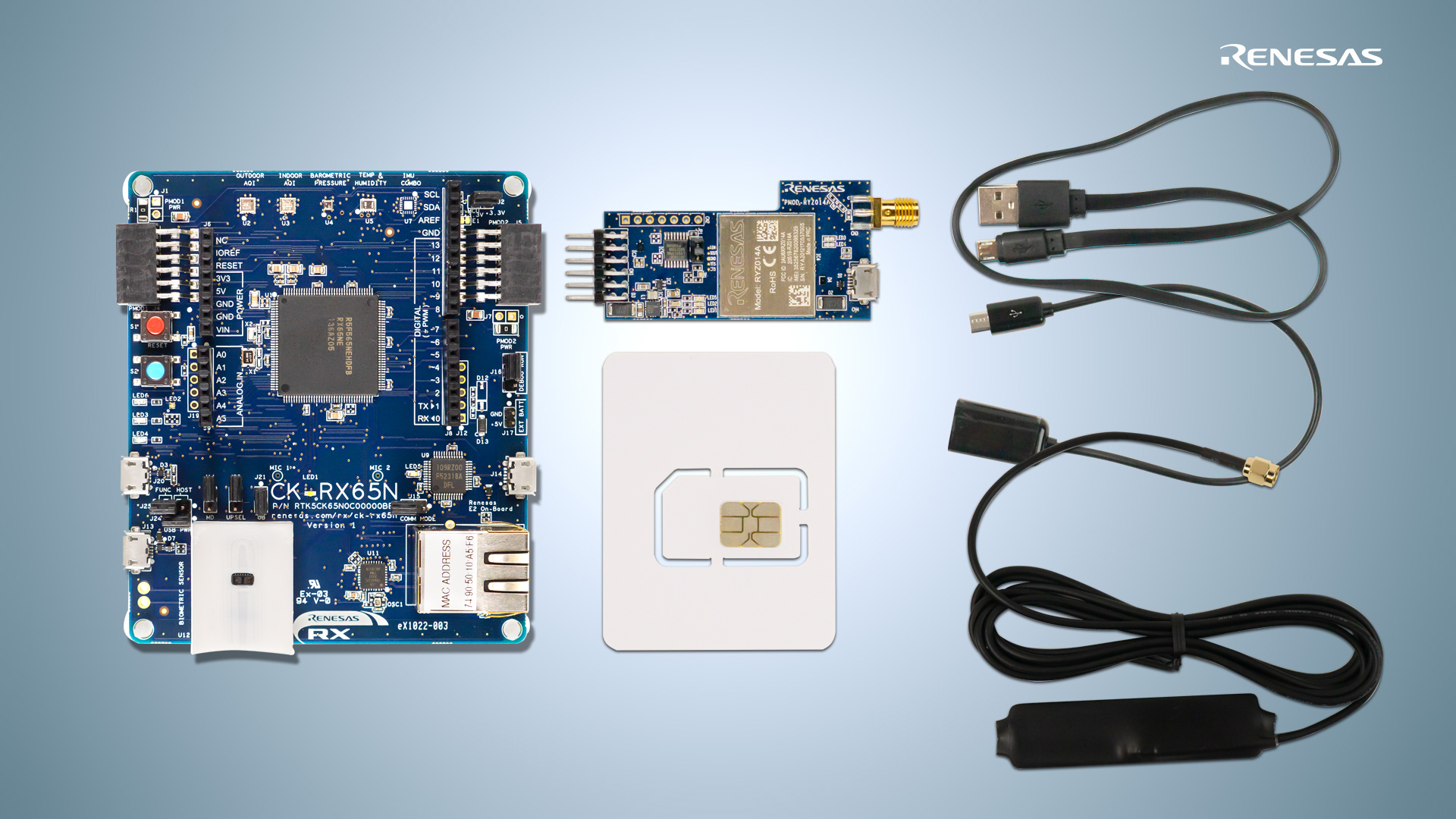

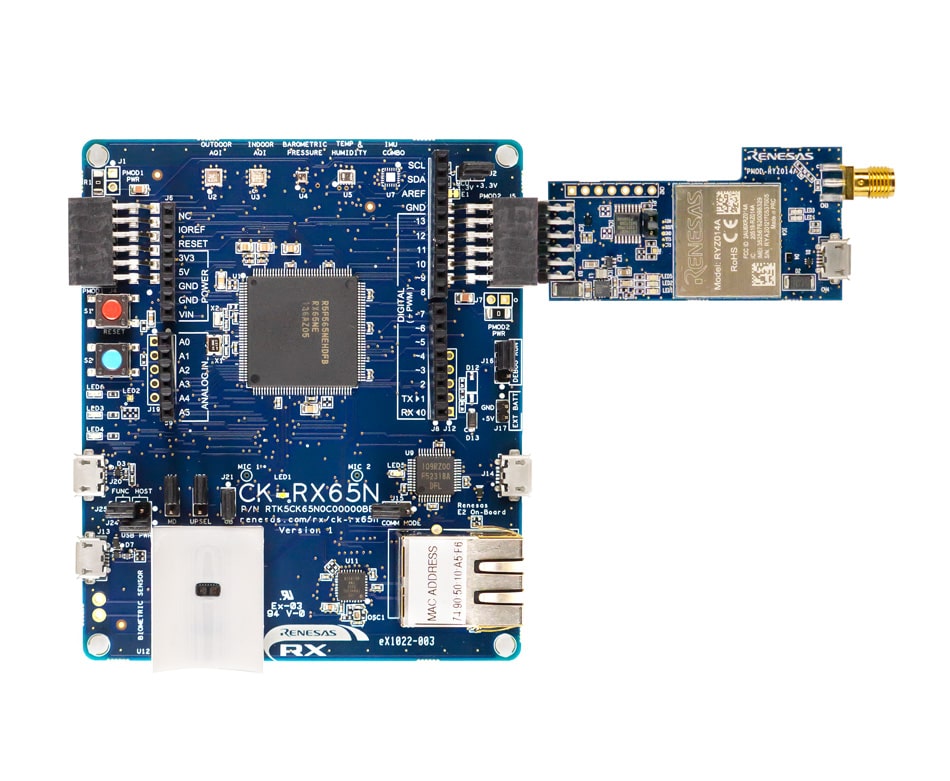

- CK-RX65N v1 board
- RYZ014A PMOD (CAT-M1 Cellular Module)
- Micro USB to A cable
- Micro USB A/B to A adapter cable
- SIM card
- Antenna
Countries supported by the included SIM card
Austria, Belgium, Canada, Denmark, Finland, France, Germany, Japan, Liechtenstein, Luxembourg, Mexico, Netherlands, Norway, Poland, Portugal, Romania, Spain, Sweden, Switzerland, United Kingdom, United States
APN setting information by the included SIM card
| Item | Value (Truphone) | Value (MicroAI) |
|---|---|---|
| APN (Access point name) | iot.truphone.com | globaldata.iot |
| User ID (Access point login ID) | - (Null) | - (Null) |
| Password (Access point password) | - (Null) | - (Null) |
| SIM card PIN code | - (Null) | - (Null) |
| Authentication protocol type | PAP | PAP |
| SIM card plans | First 90-days/50MB Free | First 30-days/50MB Free, Fixed Monthly |
Features
- Key Features
- LTE CAT-M1 with RYZ014A PMOD
- Ethernet
- USB Full Speed Host and Device
- Sensors:
- Humidity and Temperature
- Indoor Air Quality Index
- Outdoor Air Quality Index
- Heart rate, blood oxygen saturation (SpO2), respiration rate
- Barometric Pressure
- 9 axis Motion Tracking
- 2 MEMS Microphones
- Battery connector for portability
- Arduino™ (Uno R3) connector

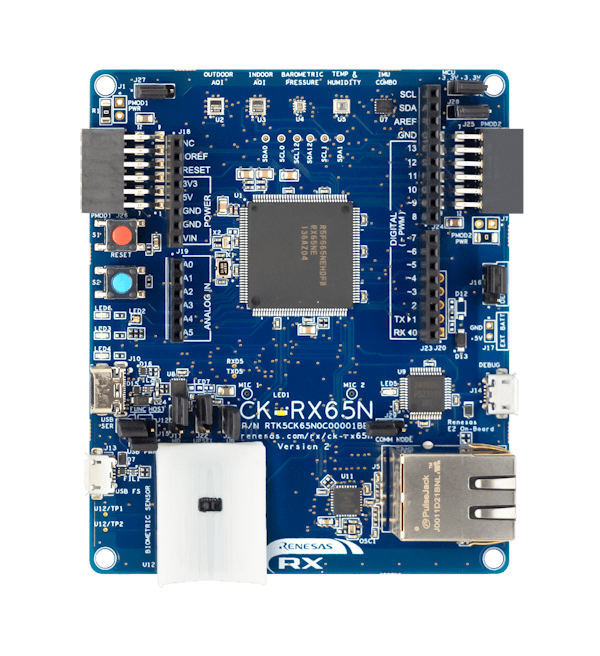

- On-board MCU
- R5F565NEHDFB microcontroller
- 120MHz, RX v2 core
- 2MB Code Flash, 640KB SRAM, TSIP
- 144 pins, LQFP package
- Ecosystem
- MCU and Pmod current measurement points
- 5V input through USB or external power supply
- USB-serial converter
- Debug on-board
- 4 user LEDS
- One user button
- 2 Digilent Pmod™ (SPI/UART/I2C: Type-6A and Type-2A) connectors
Applications
Documentation
