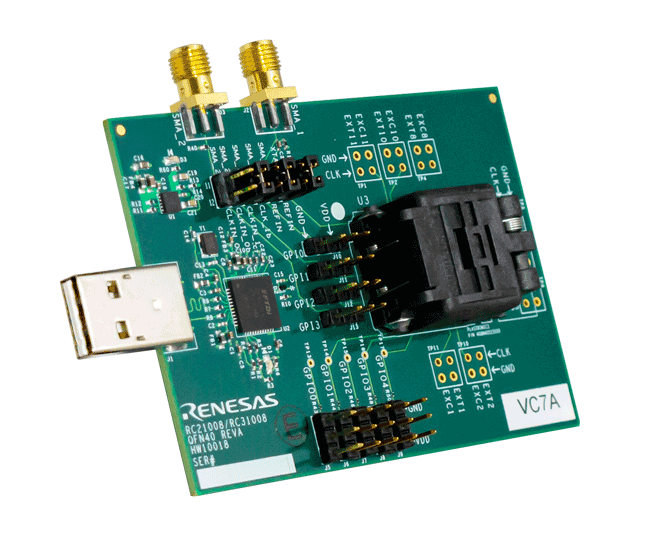

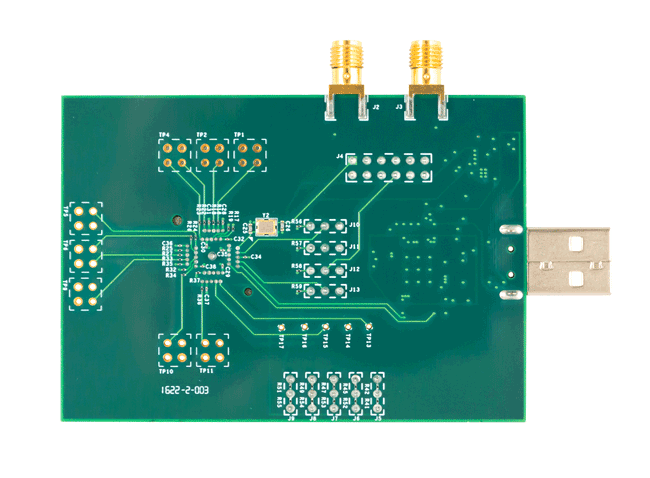

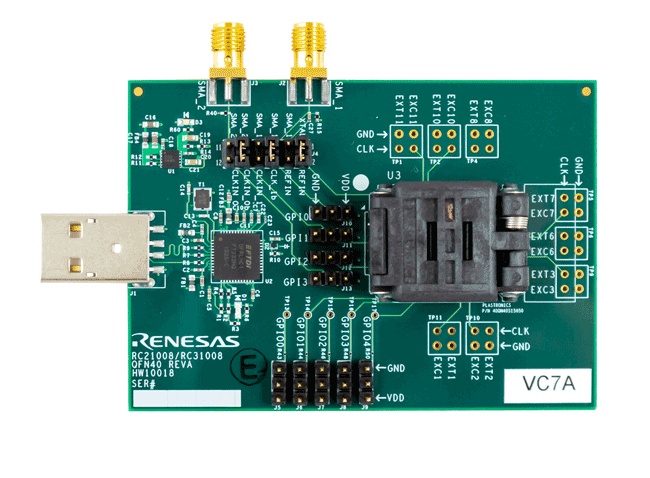

The VersaClock 7 programmer board is made to ease the programming of RC21008, RC31008 blank devices. With the on-board USB interface, RICBox™ GUI can be used to communicate with the blank device in the socket for configuration and programming.


  • Programmer board is powered using USB port.
  • Programmer board uses RICBox™ GUI – to program the blank parts
  • Program VersaClock 7 –RCx1008, RC31008 blank part in the socket
