Power Supply Reference Demo Board for the Xilinx Zynq Ultrascale+™ MPSoC
Jump to Page Section:
Overview
Description
The ISLUSPLUS-UC1DEMO1Z and ISLUSPLUS-UC2DEMO1Z designs provide a power supply reference solution for the Xilinx Zynq UltraScale+™ MPSoC.

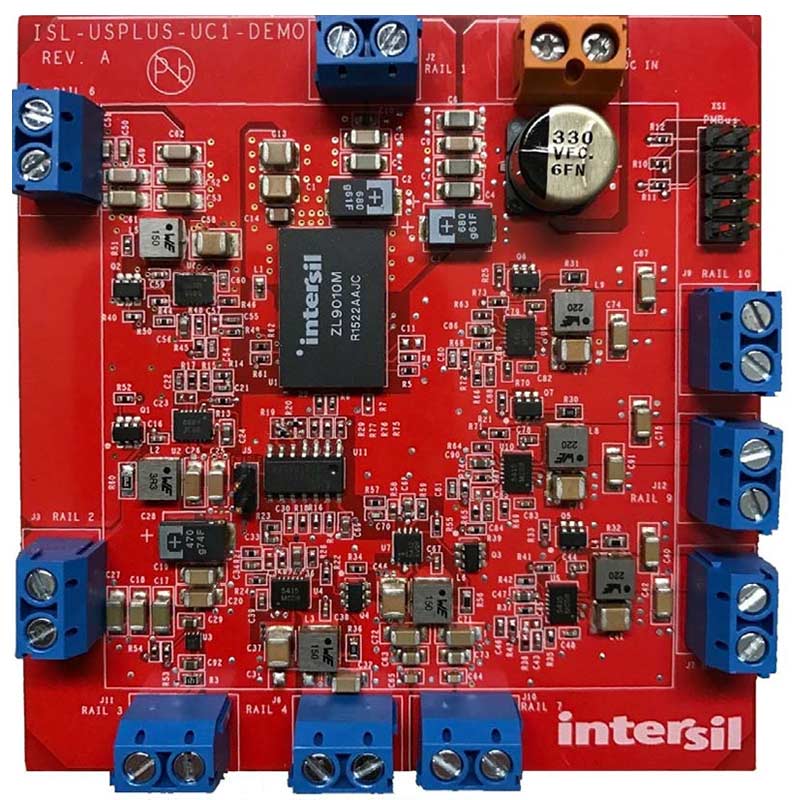

The power supply rail consolidation in the ISLUSPLUS-UC1DEMO1Z design is based on the configuration for always on, optimized for cost (Use Case 1). The ISLUSPLUS-UC1DEMO1Z reference design is suitable for the Zynq UltraScale+ ZU2CG, ZU2EG(A), ZU3CG, and ZU3EG devices.

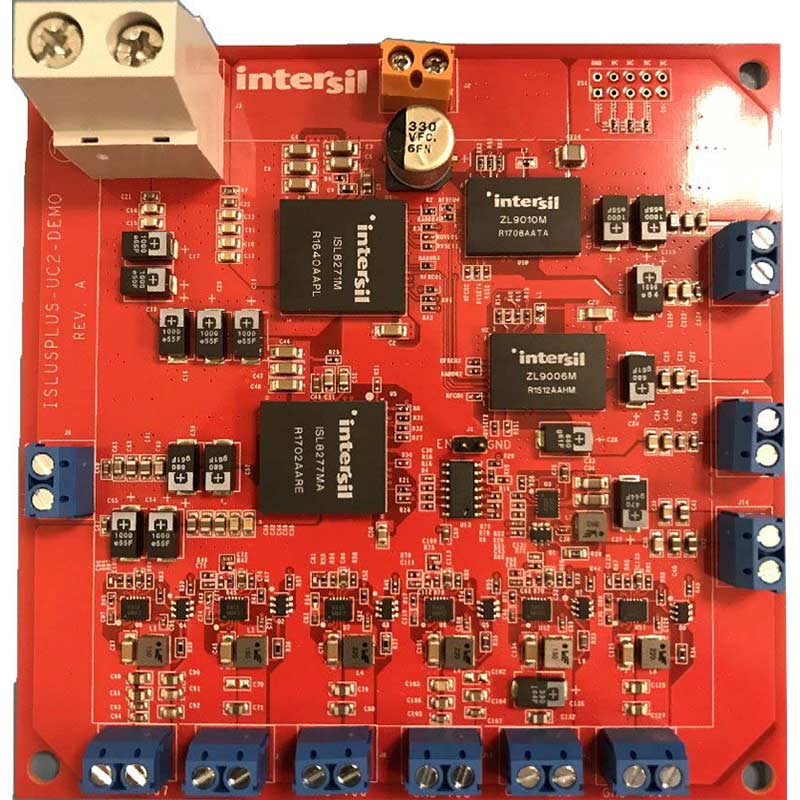

The power supply rail consolidation used in the ISLUSPLUS-UC2DEMO1Z design is based on the configuration for always on, optimized for power and/or efficiency (Use Case 2). The ISLUSPLUS-UC2DEMO1Z reference design is suitable for the Zynq Ultrascale+ ZU11EG, ZU15EG, ZU17EG, and ZU19EG devices.
Learn more about power rail optimization solutions for the Xilinx Zynq UltraScale+ MPSoC
Features
- Complete power supply solution for the Xilinx Zynq Ultrascale+ MPSoC
- Power up and power down sequence
- PMBus interface
Applications
Applications
- Xilinx Zynq UltraScale+ MPSoC
Documentation
|
|
Date | |
|---|---|---|
| PDF 1.82 MB | Manual - Development Tools | |
| PDF 3.32 MB | Datasheet | |
| PDF 2.35 MB 日本語 | Datasheet | |
| PDF 2.35 MB | Datasheet | |
| PDF 2.22 MB 日本語 | Datasheet | |
| PDF 1.55 MB | Manual - Development Tools | |
| PDF 2.58 MB | Datasheet | |
| PDF 1.31 MB | Datasheet | |
| PDF 3.18 MB | Datasheet | |
| PDF 3.12 MB | Datasheet | |
| PDF 625 KB | Datasheet | |
| PDF 707 KB | Datasheet | |
12 items
|
||
