Software and hardware package for realizing FSoE slave function.
- To overcome the challenges to evaluate and develop FSoE system easier and faster
- Best optimized BOM cost by integrating EtherCAT + FSoE Slave function with 2 chips
- Allows evaluation of Renesas’ IEC 61508 Functional Safety Solution FSoE Reference Software for RX MCU
- Keeping flexibility to connect customer’s non-safety system
What is inside:
- Two-chip, RX72M and RX23T configuration, functional safety reference board (user manual, schematics, and BOM list)
- RX FSoE Reference Software (scan QR code inside the kit)
- Software development handbook

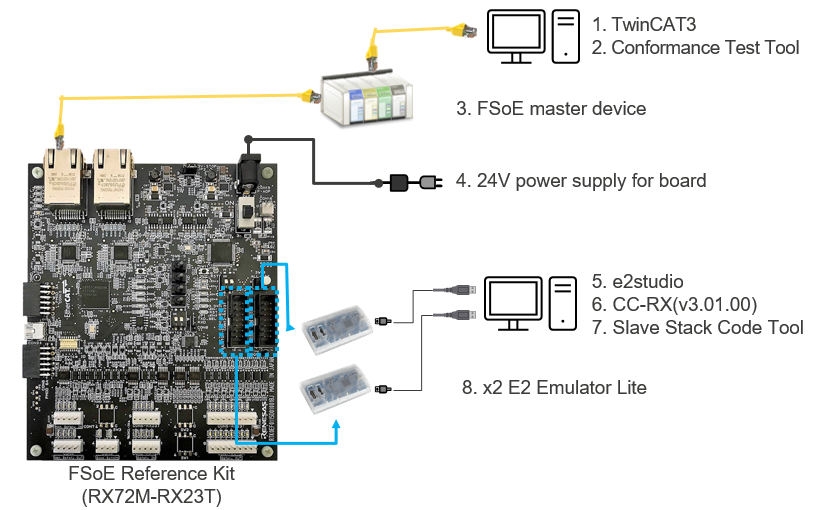

Plug into FSoE master device and other tools to set up your FSoE slave environment (not included in the kit)
Requires commercial license agreement when using the software in customer’s final product.
Features
- Hardware Functionality
- HFT=1
- No external network communication IC needed. Coexist with EtherCAT slave communication by RX72M built-in EtherCAT slave controller and FSoE functions.
- Both RX72M and RX23T have dedicated ICE connectors for software development. LEDs to check Safety/Non-Safety data in/out.
- Software & Documents (scan QR code inside the kit)
- Software packages to run FSoE Remote I/O system
- Sample software for RX72M-RX23T FSoE Reference Kit
- Sample projects for FSoE Remote IO System (emergency stop switch control system, safety input port control system, and analog sensor input)
- Software developer’s handbook: Guidelines on how to use RX FSoE Reference Kit.
- Software packages to run FSoE Remote I/O system
Applications
Applications
- Functional safety application for HFT=1 and SIL3 criteria under IEC61508 standard such as:
- Primary designed to fit Safety Remote IO
- Other safety application e.g. AC Drive / GP Inverter, PLC, and Sensors
- Target market segment: Industrial Automation (Factory Automation, Process Automation), Building Automation
Product Options
Processing table
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Support
For a comprehensive IEC61508 Functional Safety solution, please visit IEC 61508 Functional Safety Solution.
