RX23W microcontrollers incorporate security functions that are vital for Bluetooth® 5.0 Low Energy (BLE) and IoT devices, as well as a wealth of peripheral functions such as touch keys, USB and CAN, enabling system control and wireless communication with devices using a single chip. RX23W MCUs have full function support for Bluetooth 5.0 Low Energy long range and mesh networking, and provide excellent reception performance.

In addition, the RX23W lineup includes a module with a built-in antenna and oscillator. It enables the use of many MCU peripheral function pins while having the industry’s smallest footprint for a module. This module has obtained Radio Law (Japan), FCC/ISED (North America), and CE (Europe) certifications, saving users the trouble of designing an RF circuit or obtaining certifications on their own, shortening time to market.

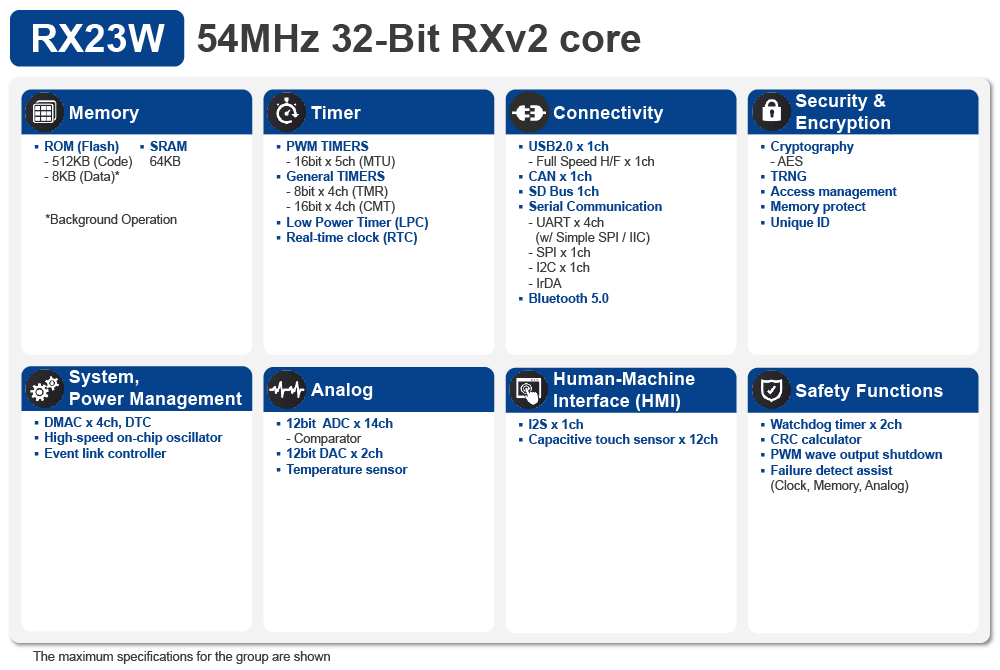

Features

  • RXv2 core 54MHz operation (4.33 CoreMark/MHz)1.8V to 3.6V operation
  • Operating temperature -40°C to 85°C
  • Program Flash up to 512KB, SRAM up to 64KB
  • Communications
    • Bluetooth Low Energy (one channel)
      • Built-in Bluetooth 5.0-compliant RF transceiver and link layer
      • Supports LE 1M PHY, LE 2M PHY, LE Coded PHY (125kbps, 500kbps), LE Advertising Extensions
      • Built-in Bluetooth dedicated AES-CCM (128-bit) encryption circuit
    • USB 2.0 Host/Function/OTG (one channel)
      • Full speed (12Mbps), low speed (1.5Mbps), isochronous transfer
      • BC (battery charger) support
    • CAN (one channel)
      • ISO11898-1 compliant CAN, up to 1Mbps transfer
    • SD Host I/F (on channel)
      • SD memory/SDIO 1- or 4-bit SD bus support
  • Capacitive Touch Sensing
    • Self-capacitive method: Up to 12 keys supported in a 1-terminal 1-key configuration
    • Mutual capacitive method: Supports up to 36 keys in a 12-terminal matrix configuration
  • Enhanced analog
    • Enhanced analog: 12-bit A/D converter (14 channels), 12-bit D/A converter (2 channels)
  • Trusted Secure IP Lite (AES/TRNG)
  • Module package size
    • 6.1 × 9.5 mm, 0.5mm pitch (83-pin LGA)

descriptionDocumentation

Title language Type Format File Size Date
Datasheets & Errata
RX23W Group Datasheet 日本語 Datasheet PDF 1.70 MB
User Guides & Manuals
star RX23W Group User's Manual: Hardware 日本語 Manual - Hardware PDF 21.62 MB
Bluetooth Low Energy Protocol Stack Basic Package User's Manual 日本語 Manual - Development Tools PDF 2.20 MB
Target Board for RX23W Declaration of conformity for CE Manual - Development Tools PDF 593 KB
RX23W Group Target Board for RX23W module Quick Start Guide
Related Files: Sample Code
日本語 Quick Start Guide PDF 1.15 MB
Target Board for RX23W module Declaration of Conformity for CE Manual - Development Tools PDF 447 KB
Target Board for RX23W module Declaration of Conformity for China RoHS Manual - Development Tools PDF 236 KB
RX23W Group Target Board for RX23W module User's Manual 日本語 Manual - Development Tools PDF 1.35 MB
Target Board for RX23W module BOM list Guide PDF 209 KB
Target Board for RX23W module Schematic Manual - Development Tools PDF 1.46 MB
e² studio Integrated Development Environment User's Manual: Getting Started Guide RX, RL78, RH850 Family 日本語 Manual - Development Tools PDF 3.73 MB
RX Family C/C++ Compiler Package (CC-RX) How to Divide Boot and Flash Areas 日本語 Manual - Development Tools PDF 1.73 MB
Technical Updates
RX230 Group, RX231 Group, RX23W Group Errata to User's Manual: Hardware Regarding the Realtime Clock (RTC) 日本語 Technical Update PDF 200 KB
Errata to the RX23W Group User's Manual: Hardware Rev.1.00 日本語 Technical Update PDF 191 KB
RX Family Note on Rewriting the System Clock Control Register 3 (SCKCR3) 日本語 Technical Update PDF 157 KB
Errata to User's Manual: Hardware Regarding the I2C-bus Interface (RIIC) (TN-RX*-A0227A/E) 日本語 Technical Update PDF 611 KB
Application Notes & White Papers
RX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software
Related Files: Sample Code
日本語 Application Note PDF 934 KB
RX23W Group Apple Notification Center Service Sample Program Application Note
Related Files: Sample Code
日本語 Application Note PDF 1.06 MB
RX family TSIP (Trusted Secure IP) Module Firmware Integration Technology (Binary version)
Related Files: Sample Code
日本語 Application Note PDF 1.87 MB
RX23W Group BLE Module Firmware Integration Technology Application Note
Related Files: Sample Code
日本語 Application Note PDF 3.25 MB
HS300x Sample application
Related Files: Sample Code
日本語 Application Note PDF 3.18 MB
RX Family HS300x Firmware Integration Technology
Related Files: Sample Code
Application Note PDF 197 KB
RX Family Sensor Communications Firmware Integration Technology
Related Files: Sample Code
Application Note PDF 191 KB
RX23W Group Firmware update over the air sample program
Related Files: Sample Code
日本語 Application Note PDF 3.58 MB
RX23W Group Bluetooth Low Energy Application Developer's Guide
Related Files: Sample Code
日本語 Application Note PDF 3.62 MB
RX23W Group Smartphone Application TryBT for Android
Related Files: Sample Code
日本語 Application Note PDF 2.28 MB
Bluetooth LE MCU Bluetooth Test Tool Suite operating instructions Application Note
Related Files: Sample Code
日本語 Application Note PDF 3.15 MB
Bluetooth LE microcomputer / module Bluetooth qualification acquisition Application Note 日本語 Application Note PDF 1.15 MB
RX Family Sample Program for Performing FFT on Analog Input Signals
Related Files: Sample Code
日本語 Application Note PDF 1.35 MB
Capacitive Sensor Microcontrollers CTSU Capacitive Touch Electrode Design Guide 日本語 Application Note PDF 2.72 MB
Bluetooth® Low Energy microcomputer Design Guidelines for a Pattern Antenna Application Note (R01AN3134EJ0105) 日本語 Application Note PDF 2.93 MB
RX Family Changes to Reset Status Registers when Resets Occur 日本語 Application Note PDF 393 KB
RX23W Group Bluetooth Low Energy Profile Developer's Guide 日本語 Application Note PDF 1.61 MB
RX23W Group Guidelines for Bluetooth Board Design Application Note 日本語 Application Note PDF 5.92 MB
RX Family HS300x Relative Humidity and Temperature Sensor Control Module Firmware Integration Technology Application Note
Related Files: Sample Code
日本語 Application Note PDF 836 KB
RX Family Clock Synchronous Control Module for EEPROM Access Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 391 KB
Differences Between RX23W Group and RX231 Group 日本語 Application Note PDF 868 KB
RX Family How to implement FreeRTOS OTA by using Amazon Web Services on RX65N 日本語 Application Note PDF 1.59 MB
RX23W Group Bluetooth Mesh Stack Development Guide 日本語 Application Note PDF 643 KB
RX23W Group Bluetooth Mesh Stack Package Startup Guide 日本語 Application Note PDF 891 KB
RX23W Group Bluetooth Mesh Module Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 1.56 MB
M3S-TFAT-Tiny Memory Driver Interface Module Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 422 KB
Open Source FAT File System M3S-TFAT-Tiny Module Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 470 KB
RX Family Memory Access Driver Interface Module Using Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 245 KB
RX Family Renesas FreeRTOS
Related Files: Sample Code
日本語 Application Note PDF 991 KB
Renesas MCU Firmware Update Design Policy 日本語 Application Note PDF 707 KB
RX Family Read/Write Operations in SDRAM Using the SDRAMC
Related Files: Sample Code
日本語 Application Note PDF 1.60 MB
RX Family Flash Module Using Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 1.92 MB
RX Family Sample Program using USB Host Human Interface Device Class Driver (HHID) to communicate via USB with HID device Firmware Integration Technology (R01AN2294EJ0120) 日本語 Application Note PDF 1.45 MB
- RX Family Sample Program using USB Host Human Interface Device Class Driver (HHID) to communicate via USB with HID device Firmware Integration Technology - Sample Code (r01an2294xx0120) 日本語 Sample Code ZIP 101.02 MB
RX Family Sample Program using USB Host Mass Storage Class Driver (HMSC) for USB Mini Firmware to communicate via USB with MSC device Firmware Integration Technolog
Related Files: Sample Code
日本語 Application Note PDF 1.44 MB
RX Family Sample Program using USB Peripheral Communication Device Class Driver (PCDC) for USB Mini Firmware to communicate via USB with USB Host Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 1.57 MB
RX Family Sample Program using USB Peripheral Human Interface Device Class Driver (PHID) for USB Mini Firmware to communicate via USB with USB HostFirmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 1.46 MB
RX Family Sample Program using using USB Peripheral Mass Storage Class Driver (PMSC) for USB Mini Firmware to communicate via USB with USB Host Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 1.48 MB
RX23W Group Sample Program for Highspeed Communication
Related Files: Sample Code
日本語 Application Note PDF 1.60 MB
RX Family Flash ROM Correction
Related Files: Sample Code
日本語 Application Note PDF 889 KB
RX Family Specification Differences Between the RIIC and SCI(Simple I2C Mode) and Selection Guide 日本語 Application Note PDF 77 KB
RX Family SD Mode SD Memory Card Driver Firmware Integration Technology 日本語 Application Note PDF 1.01 MB
- SD Mode SD Memory Card Driver Firmware Integration Technology Rev.3.00 - Sample Code 日本語 Sample Code ZIP 14.45 MB
RX Family Amazon FreeRTOS download with e² studio 日本語 Application Note PDF 2.71 MB
RX Family System Timer Module Firmware Integration Technology Application Note
Related Files: Sample Code
日本語 Application Note PDF 223 KB
RX Family Using the Exception Vector Table and Software Configurable Interrupts
Related Files: Sample Code
日本語 Application Note PDF 660 KB
Design Guide for Migration between RX Family Differences in Package External Dimensions 日本語 Application Note PDF 3.61 MB
RX Family Embedded TCP/IP M3S-T4-Tiny Socket API Module Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 836 KB
RX Family Flash Memory Data Management Module Using Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 770 KB
RX Family RX DSP Library Version 5.0
Related Files: Sample Code
日本語 Application Note PDF 923 KB
RX Family, H8S Family H8S to RX Migration Guide: ADC 日本語 Application Note PDF 483 KB
RX Family, H8S Family H8S to RX Migration Guide: DTC 日本語 Application Note PDF 738 KB
RX Family C/C++ Compiler Package (CC-RX) Programming Techniques 日本語 Application Note PDF 791 KB
RX Family Guide for Porting the FIT Project to the Other RX Family 日本語 Application Note PDF 954 KB
RX Family Adding Firmware Integration Technology Modules to Projects 日本語 Application Note PDF 1.33 MB
RX Family Adding Firmware Integration Technology Modules to CS+ Projects 日本語 Application Note PDF 1.67 MB
RX Family Sample program that uses Open Source FAT File System [M3S-TFAT-Tiny] Module Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 176 KB
RX Family Sample program that uses Sound Playback/Compression System (Original ADPCM Codec) [M3S-S2-Tiny] Module Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 266 KB
RX Family JPEG Decoder Module Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 172 KB
RX Family JPEG Encoder Module Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 239 KB
RX Family Sound Playback/Compression System (Original ADPCM Codec) [M3S-S2-Tiny] Module Firmware Integration Technology
Related Files: Sample Code
日本語 Application Note PDF 151 KB
RX Family Hardware Design Guide 日本語 Application Note PDF 998 KB
RX Family Setting for Using Firmware Integration Technology 日本語 Application Note PDF 560 KB
Integrated Development Environment e² studio: how to utilize Jenkins from e² studio 日本語 Application Note PDF 324 KB
Integrated Development Environment e² studio: how to use CUnit in e² studio 日本語 Application Note PDF 258 KB
RX Family Margin of Error for the Bit Rate in Asynchronous Communications 日本語 Application Note PDF 391 KB
RX Family Specification Differences Between the RSPI and SCI(Simple SPI Mode) and Selection Guide 日本語 Application Note PDF 226 KB
RX Family Setting Example of DTC Block Transfer Mode and Chain Transfer
Related Files: Sample Code
日本語 Application Note PDF 398 KB
RX Family RSPI Sequence Control and Interrupt Generation Timing 日本語 Application Note PDF 350 KB
RX Family Using Multiple Interrupts
Related Files: Sample Code
日本語 Application Note PDF 173 KB
Integrated Development Environment e² studio: how to use Unity in e² studio 日本語 Application Note PDF 319 KB
Integrated Development Environment e² studio: Debugging in C and Assembly 日本語 Application Note PDF 412 KB
Integrated Development Environment e² studio: Usage of Eventpoints Debug Feature 日本語 Application Note PDF 655 KB
Integrated Development Environment e² studio: Usage of Memory Debug Feature 日本語 Application Note PDF 457 KB
Integrated Development Environment e² studio: Usage of Trace Debug Features 日本語 Application Note PDF 709 KB
RX Family Coding Example of Wait Processing by Software
Related Files: Sample Code
日本語 Application Note PDF 262 KB
Integrated Development Environment e² studio: e² studio with plug-in AgileReview 日本語 Application Note PDF 803 KB
Integrated Development Environment e² studio: e² studio with Subversion and plug-in Subversive 日本語 Application Note PDF 969 KB
Integrated Development Environment e² studio: e² studio with Doxygen and its bridge plug-in eclox 日本語 Application Note PDF 666 KB
Integrated Development Environment e² studio: e² studio with Trac and Mylyn Trac Connector plug-in 日本語 Application Note PDF 543 KB
RX Family Block Access Media Driver API
Related Files: Sample Code
Application Note PDF 151 KB
RX Family Fixed-point Library
Related Files: Sample Code
日本語 Application Note PDF 277 KB
RX Family M3S-SHA-LIB: SHA-1/SHA-256 Library Introduction Guide
Related Files: Sample Code
日本語 Application Note PDF 87 KB
RX Family Application Note Using Multiply-Accumulate Operation Instructions
Related Files: Sample Code
日本語 Application Note PDF 160 KB
Compiler Package Application Note: STL V.1.00.00 User's Manual 日本語 Application Note PDF 478 KB
- STL V.1.00.00 Sample Code Sample Code ZIP 277 KB
RX Compiler Application Notes: 2-Compiler Usage Guide: Option Edition 日本語 Application Note PDF 514 KB
RX Compiler Application Notes: 2-Compiler Use Guide: #pragma Extension Guide 日本語 Application Note PDF 251 KB
RX Compiler Application Notes: 5-Reference: Data of Library 日本語 Application Note PDF 1019 KB
Other
RX23W module Declaration of Conformity for CE Other PDF 428 KB
RX23W Flyer PDF 464 KB
RX Family Development Tools ( R20CD0008EJ0100 ) Brochure PDF 3.41 MB
Renesas Flash Programmer V3.06.02 Release Notes 日本語 Release Note PDF 324 KB
RX Family Brochure 日本語, 简体中文 Brochure PDF 6.43 MB
[Flyer] E2Emulator[RTE0T00020KCE00000R] 日本語, 简体中文 Flyer PDF 381 KB
[Flyer] Renesas C Compilers 日本語 Flyer PDF 245 KB
Renesas Software and Tools Flash Memory Programmer PG-FP6 日本語, 简体中文 Flyer PDF 417 KB
Building Automation Brochure 日本語 Brochure PDF 6.65 MB
Semiconductor Package Mount Manual 日本語, 简体中文 Other PDF 10.28 MB
Powered Up and Ready to Go Renesas/Intersil Joint Brochure Brochure PDF 5.27 MB
Semiconductor Reliability Handbook 日本語 General Reliability Literature PDF 14.70 MB
The Core Difference in Your DesignRX Microcontroller Platform 日本語 Flyer PDF 1.46 MB
Renesas General-Purpose Microcontrollers/Microprocessors Lineup Catalog 日本語 Brochure PDF 6.12 MB
RX: One Core, Countless Options Explained Flyer PDF 1.88 MB
R01CP0016ES0002_RX100 Brochure PDF 3.80 MB
The Core Difference in Your Design ( R01CL0032ED0200 ) 日本語 Flyer PDF 2.66 MB
R01CP0015ES0600_RX600 Brochure PDF 10.67 MB
Renesas RX200 Series MCU Brochure PDF 5.28 MB
Smart Energy Solutions Brochure PDF 5.42 MB
Smart Factory Flyer PDF 3.74 MB
The Core Difference in Your Design RX600 Microcontrollers Brochure PDF 6.32 MB
Renesas Semiconductor Lead-Free Packages Brochure PDF 1.32 MB
The Core Difference in Your Design ( R01PF0104ET0000 ) Flyer PDF 9.24 MB

file_downloadDownloads

Title language Type Format File Size Date
Software
QE for BLE[RA,RE] V1.2.0 : A Dedicated Tool for Bluetooth® low energy. 日本語 Software & Tools - Other ZIP 10.00 MB
[technical preview version] QE for UART V1.0.0 日本語 Software & Tools - Other ZIP 952 KB
[technical preview version]QE for TCP/IP V1.0.1 日本語 Software & Tools - Other ZIP 589 KB
Upgrades
RX Compiler CC-RX V3.03.00 日本語 Upgrade - Compiler ZIP 19.18 MB
RX Family C/C++ Compiler Package V3 (without IDE) V3.03.00 日本語 Upgrade - Compiler ZIP 22.94 MB
CS+ Partner OS Aware Debugging Plug-in V3.01.00 日本語 Upgrade - OS ZIP 2.47 MB
CubeSuite+ Partner OS Aware Debugging Plug-in V2.01.00 日本語 Upgrade - OS ZIP 2.54 MB
Sample Code
RX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.02 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 2.21 MB
RX23W Group Apple Notification Center Service Sample Program Application Note Rev.1.00 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 7.26 MB
RX23W Group BLE Module Firmware Integration Technology Application Note Rev.2.20 - Sample Code
Related Files: Application Note
Sample Code ZIP 69.61 MB
HS300x Sample application Rev.1.00 - Sample Code
Related Files: Application Note
Sample Code ZIP 16.72 MB
RX Family HS300x Firmware Integration Technology Rev.1.00 - Sample Code
Related Files: Application Note
Sample Code ZIP 872 KB
RX Family Sensor Communications Firmware Integration Technology Rev.1.00 - Sample Code
Related Files: Application Note
Sample Code ZIP 875 KB
RX23W Group Firmware update over the air sample program Rev.1.00 - Sample Code
Related Files: Application Note
Sample Code ZIP 19.38 MB
RX23W Group Bluetooth Low Energy Application Developer's Guide Rev.1.10 - Sample Code
Related Files: Application Note
Sample Code ZIP 22.09 MB
RX23W Group Smartphone Application TryBT for Android Rev.1.00 - Sample Code
Related Files: Application Note
Sample Code ZIP 8.41 MB
Bluetooth LE MCU Bluetooth Test Tool Suite operating instructions Application Note Rev.1.05 - Sample Code
Related Files: Application Note
Sample Code ZIP 23.51 MB
RX Family Sample Program for Performing FFT on Analog Input Signals Rev.1.10 - Sample Code
Related Files: Application Note
Sample Code ZIP 11.16 MB
RX23W Group Target Board for RX23W module Quick Start Guide Rev.1.00 - Sample Code
Related Files: Quick Start Guide
日本語 Sample Code ZIP 1.34 MB
RX Family HS300x Relative Humidity and Temperature Sensor Control Module Firmware Integration Technology Application Note Rev.1.01 - Sample Code
Related Files: Application Note
Sample Code ZIP 12.00 MB
RX Family I2C Bus Interface(RIIC) Module Using Firmware Integration Technology Rev.2.47 - Sample Code
Related Files: Application Note
Sample Code ZIP 41.29 MB
RX Family Simple I2C Module Using Firmware Integration Technology Rev.2.47 - Sample Code
Related Files: Application Note
Sample Code ZIP 27.49 MB
RX Family RX Driver Package Ver.1.27 Rev.1.27 - Sample Code
Related Files: Application Note
Sample Code ZIP 198.93 MB
RX23W Group Bluetooth Mesh Module Firmware Integration Technology Rev.1.10 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 32.07 MB
M3S-TFAT-Tiny Memory Driver Interface Module Firmware Integration Technology Rev.2.20 - Sample Code
Related Files: Application Note
Sample Code ZIP 1.90 MB
Open Source FAT File System M3S-TFAT-Tiny Module Firmware Integration Technology Rev.4.02 - Sample Code
Related Files: Application Note
Sample Code ZIP 81.24 MB
RX Family Memory Access Driver Interface Module Using Firmware Integration Technology Rev.1.03 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 13.23 MB
RX Family RSPI Module Using Firmware Integration Technology Rev.3.00 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 25.98 MB
RX Family Renesas FreeRTOS - Sample Code (r01an4307xx0104)
Related Files: Application Note
日本語 Sample Code ZIP 2.58 MB
RX Family SCI Module Using Firmware Integration Technology Rev.3.60 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 39.06 MB
RX Family Read/Write Operations in SDRAM Using the SDRAMC Rev.1.00 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 26.11 MB
RX Family Flash Module Using Firmware Integration Technology Rev.4.60 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 96.28 MB
RX Family RX Driver Package Ver.1.26 Rev.1.26 - Sample Code
Related Files: Sample Code
日本語 Sample Code ZIP 128.04 MB
RX23W Group Sample Program for Highspeed Communication Rev.1.00 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 60.92 MB
RX23W Renesas Solution Starter Kit Sample Code (e2 studio for CC-RX) Rev.1.00 - Sample Code
Related Files: Application Note
Sample Code ZIP 54.04 MB
RX Family Flash ROM Correction Rev.1.00 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 11.60 MB
SD Mode SD Memory Card Driver Firmware Integration Technology Rev.3.00 - Sample Code 日本語 Sample Code ZIP 14.45 MB
- RX Family SD Mode SD Memory Card Driver Firmware Integration Technology 日本語 Application Note PDF 1.01 MB
RX Family RX Driver Package Ver.1.23 Rev.1.23 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 120.73 MB
RX Family System Timer Module Firmware Integration Technology Application Note Rev.1.01 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 998 KB
RX Family Using the Exception Vector Table and Software Configurable Interrupts Rev.1.10 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 2.98 MB
RX Family Embedded TCP/IP M3S-T4-Tiny Socket API Module Firmware Integration Technology Rev.1.32 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 14.05 MB
RX Family Flash Memory Data Management Module Using Firmware Integration Technology Rev.2.01 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 29.38 MB
RX Family RX DSP Library Version 5.0 Rev.1.00 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 20.53 MB
RX Family Sample program that uses Open Source FAT File System [M3S-TFAT-Tiny] Module Firmware Integration Technology Rev.1.01 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 38.03 MB
RX Family Sample program that uses Sound Playback/Compression System (Original ADPCM Codec) [M3S-S2-Tiny] Module Firmware Integration Technology Rev.1.01 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 18.52 MB
RX Family JPEG Decoder Module Firmware Integration Technology Rev.2.06 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 4.44 MB
RX Family JPEG Encoder Module Firmware Integration Technology Rev.1.01 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 4.57 MB
RX Family Sound Playback/Compression System (Original ADPCM Codec) [M3S-S2-Tiny] Module Firmware Integration Technology Rev.3.04 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 4.18 MB
RX Family Setting Example of DTC Block Transfer Mode and Chain Transfer Rev.1.00 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 605 KB
RX Family Using Multiple Interrupts Rev.1.00 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 367 KB
RX Family Coding Example of Wait Processing by Software Rev.1.00 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 183 KB
RX Family Debug Console Function Using E1 Rev.1.01 - Sample Code 日本語 Sample Code ZIP 614 KB
- On-chip Debugging Emulator E1 Application Note: RX Family Using E1 Debug Console Function 日本語 Application Note PDF 234 KB
RX Family Block Access Media Driver API Rev.1.00 - Sample Code
Related Files: Application Note
Sample Code ZIP 850 KB
RX Family Fixed-point Library Rev.1.01 - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 285 KB
RX Family M3S-SHA-LIB: SHA-1/SHA-256 Library Introduction Guide - Sample Code
Related Files: Application Note
Sample Code ZIP 9.26 MB
RX Family Application Note Using Multiply-Accumulate Operation Instructions - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 219 KB
Hardware
RSSK RX23W Design Data 日本語 PCB Design Files ZIP 1.12 MB

select_allSoftware & Tool Pages

Title Type Description Company
RX Driver Package Software Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
Renesas
USB Drivers USB Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP Renesas
Bluetooth® Low Energy Protocol Stack for RX family Protocol Stack Bluetooth v5.0 certified protocol stack [Target device: RX23W]
Renesas
Trusted Secure IP Driver Security / Crypto Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds. Renesas
DSP Library for RX Family DSP / FFT Software library that implements numeric operation function used in DSP with general purpose MCU
Renesas
RI600PX Real-time OS for RX Family ITRON OS μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
Renesas
RI600V4 Real-time OS for RX Family ITRON OS μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
Renesas
C/C++ Compiler Package for RX Family Compiler/Assembler C/C++ Compiler package for RX Family. Without IDE package(for e2 studio), CS+ or High-performance Embedded Workshop including in the package. Renesas
E2 emulator [RTE0T00020KCE00000R] Emulator On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX] Renesas
E20 emulator [R0E000200KCT00] Emulator On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E1 Emulator. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C] Renesas
E2 emulator Lite [RTE0T0002LKCE00000R] Emulator On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX] Renesas
CS+ IDE and Coding Tool Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0] Important: CS+ is not generally promoted to U.S. and European customers. Renesas
e² studio IDE and Coding Tool Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
(Note: You need to install compiler separately as an additional software)
(Note: No separate e² studio installation required for RA FSP, this will be installed as part of the FSP with e² studio installer (Platform Installer) on GitHub.)
Renesas
Renesas Flash Programmer (Programming GUI) Programmer (Unit/SW) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0] Renesas
PG-FP6 Programmer (Unit/SW) Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C] Renesas
QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors Solution Toolkit In developing embedded system using the capacitive touch sensor of RA family and RX family MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"]
Renesas
QE for BLE: Development Assistance Tool for Bluetooth® Low Energy Solution Toolkit Debugging support tool that specializes in Bluetooth® Low Energy system development [Plugin for Renesas IDE "e2 studio"] [Support MCU/MPU: RA, RX, RL78] Renesas
QE for TCP/IP: A Dedicated Tool for TCP/IP Development [Technical Preview Edition] Solution Toolkit Debugging assistance tool for developing systems which use the TCP/IP. For use in developing embedded systems which use the M3S-T4-Tiny communications protocol software library for the RX family. [Plugin for Renesas IDE "e² studio"]
Renesas
QE for Current Consumption: A Dedicated Tool for Current Measurement Solution Toolkit Development assistance tool helps to shorten the times taken in operations for the tuning of currents drawn. [Standard item in the "e² studio" and CS+ (CS+ for CC only) IDEs] [Support MCU/MPU: RX, RL78] Renesas
QE for UART: A Dedicated Tool for UART [Technical Preview Edition] Solution Toolkit Debugging assistance tool for developing systems which use the UART communication function. [Plugin for Renesas IDE "e² studio"]
Renesas
Smart Configurator Solution Toolkit Smart Configurators are utilities for combining software in ways that meet your needs. They simplify the embedding of Renesas drivers in your systems through support for importing middleware and drivers and configuring pins. [Support MCU/MPU: RX, RA, RZ, RH850] Renesas
RX Family Renesas FreeRTOS FreeRTOS FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT). Renesas
Sensor Software Sensor Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
Renesas

memoryBoards & Kits

Part Number Title Type Company
RX-Family-Target-Board Target Board for RX family Evaluation Renesas
RX23W-Starter-Kit Renesas Solution Starter Kit for RX23W Starter Renesas
RTK5RX23W0C00000BJ Target Board for RX23W Evaluation Renesas
RTK5RX23W0C01000BJ Target Board for RX23W Module Evaluation Renesas

Resonator Information

Please search for your resonator on its manufacturer's site linked below. If you require optimal oscillation circuit constants for your particular system, please ask the manufacturer of the oscillator.

For main clock resonators/For subclock resonators :
KYOCERA Click here for RX23W oscillation evaluation result.
Murata Manufacturing : For IC Manufacturer, select Renesas Electronics, and enter R5F523W into the IC Part Number search box.
NIHON DEMPA KOGYO : Please see IC Matching Information in the RX23W column.
