Overview

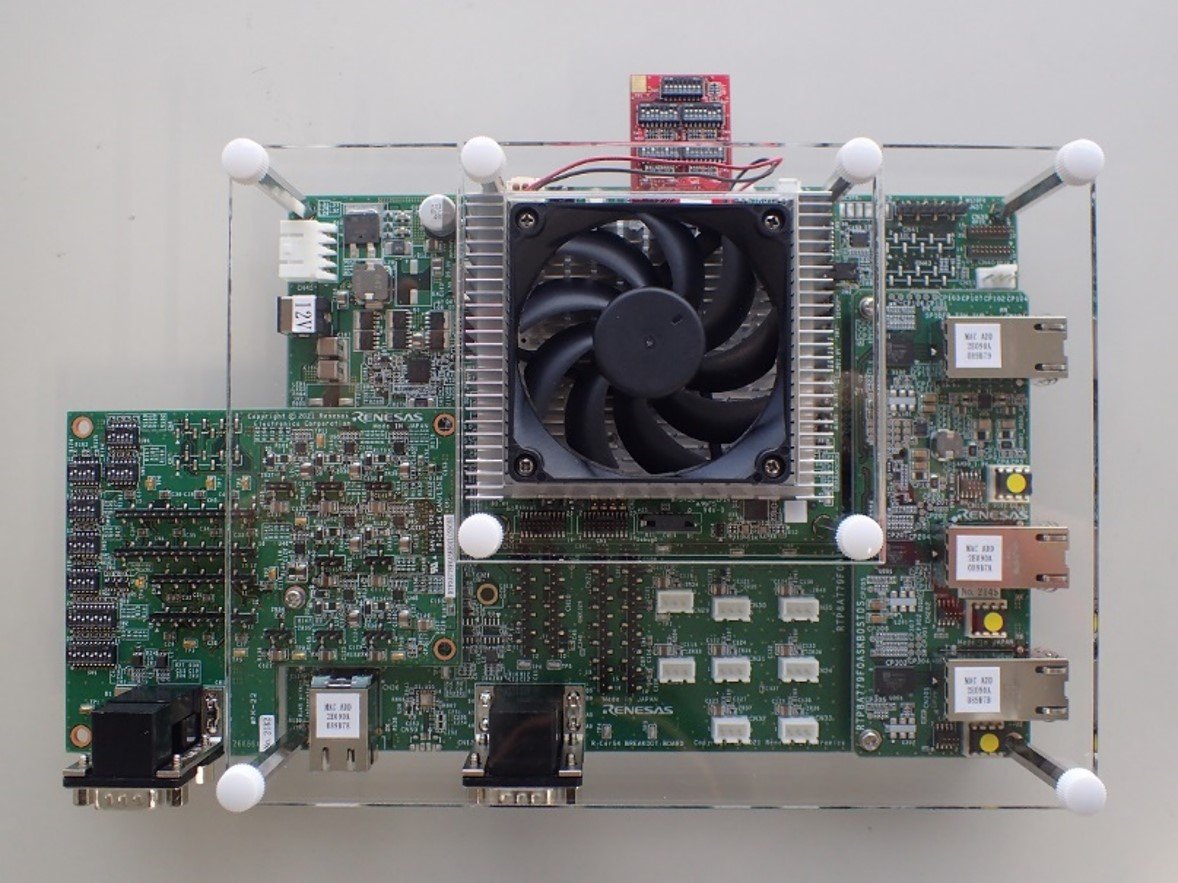

The Spider serves as a dedicated R‑Car S4 reference platform for assessing R‑Car S4–based systems and supporting the development of operating systems, device drivers, and applications. It offers a complete development environment with hardware and software for automotive gateway applications to support the new E/E architecture.
Features
- Reduces the board size and BOM costs through MCU core integration into R-Car system-on-chip (SoC), and uses a single board to control both MCU domain and application SoC domain, which was previously required separately.
- The development board consists of a CPU board with core SoC, power management IC (PMIC) and memory, and an interface board, enabling support for a variety of networks.
- Supports 16 channels of CAN FD (can be used as 16 channels of LIN and 8 channels of SENT by multi-function), 2 channels of FlexRay, 2 channels of PCIe v4.0 x2 lanes, and 3 channels of 5G-USXGMII for Ethernet.
- The core system is realized by installing the R-Car S4, LPDDR4x-3200 memory, and HyperFlash™ memory on the CPU board, which contributes to shortening the time-to-market by simplifying the design.
- The combination of pre-regulators and PMICs developed for R-Car S4 can provide various supply voltages to meet functional safety requirements up to ASIL-D in accordance with ISO 26262.
Products in the Design
R-Car Automotive System-on-Chips (SoCs)
R-Car-S4 Active
Automotive System-on-Chip (SoC) for Car Server/Communication Gateway
| RAA271005 | Automotive 11-Channel ASIL-D PMIC with Extremely Low Quiescent Current |
| RAA271041 | Cold Crank Boost and Buck Controller with Drivers for ASIL-D Automotive Applications |
| ISL78233 | 3A Compact Synchronous Buck Regulator |
| ISL78310 | High Performance 1A LDO |
| ISL78322 | Dual 2A/1.7A Low Quiescent Current 2.25MHz High Efficiency Synchronous Buck Regulator |
Sample & Buy
RTP8A779F0ASKB0SP2S
Active| ECCN (US): | 3A991.a.2 |
| HTS (US): | 8471.50.0150 |
Application Block Diagrams
 | Communication Gateway & Integrated DVR/DMS System Integrated automotive gateway merging CoGW with DVR/DMS video processing. |
 | Automotive Communication Gateway Platform Integrated automotive gateway platform with R-Car S4 SoC, multi-network support, and optimized power management. |
