Features
- VDSS = 80V
- Standard-level gate drive voltage: VGS(th) = 2.0V ~ 4.0V
- Super low on-state resistance: RDS(on) = 1.3mΩ max.
- ID = 340A
- Low input capacitance
- Pb-free lead plating: RoHS compliant
- MSL1 classified according to IPC/JEDEC J-STD-020
Description
The RBE013N08R1SZQ4 N-channel power MOSFET features REXFET-1 split-gate technology and is offered in a TOLL package. The TOLL package features ultra compact, leadless designs with Wettable Flanks for enhanced thermal performance, reliability, and ease of assembly.
Renesas' REXFET-1 split-gate technology is well-suited for applications that require low RDS(on) and switching capability, making it ideal for high-power and high-frequency applications.
Parameters
| Attributes | Value |
|---|---|
| Qualification Level | Industrial |
| Nch/Pch | Nch |
| Channels (#) | 1 |
| Standard Pkg. Type | TOLL |
| Gate Level | Standard |
| VDSS (Max) (V) | 80 |
| ID (A) | 340 |
| RDS (ON) (Max) @10V (mohm) | 1.3 |
| Pch (W) | 468 |
| Ciss (Typical) (pF) | 14000 |
| Qg typ (nC) | 185 |
| Series Name | REXFET-1 |

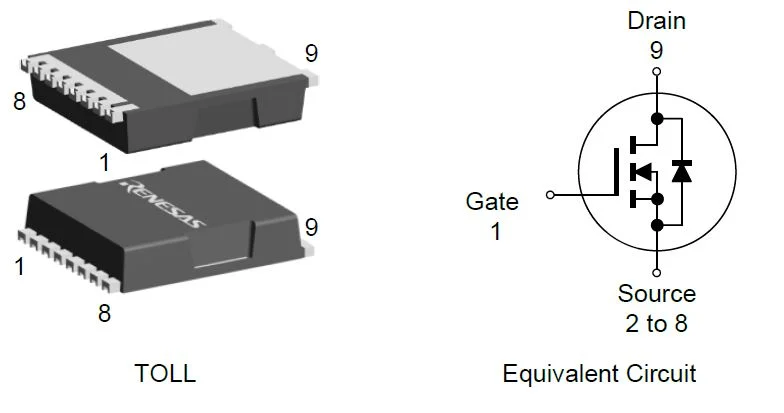

Package Options
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) |
|---|---|---|
| TOLL | 9.90 x 11.68 x 2.30 | 8 |
Product Comparison
| RBE013N08R1SZQ4 | RBA013N08R1SBQ4 | RBE011N08R1SZQ4 | RBE013N08R1SZPW | |
| VDSS (Max) (V) | 80 | 80 | 80 | 80 |
| RDS (ON) (Max) @10V (mohm) | 1.3 | 1.3 | 1.06 | 1.3 |
| ID (A) | 340 | 340 | 360 | 340 |
| Standard Pkg. Type | TOLL | TOLL | TOLL | TOLT |
| Qualification Level | Industrial | Automotive | Industrial | Industrial |
Application Block Diagrams
 | Cordless Leaf Blower 20V cordless leaf blower features adjustable speeds, a smart motor, a rechargeable battery, and a versatile design. |
Additional Applications
- Motor control
- DC/DC power conversion
- Industrial automation
- Data center
- Energy infrastructure
- Power tools
- Robotics
