Overview
Description

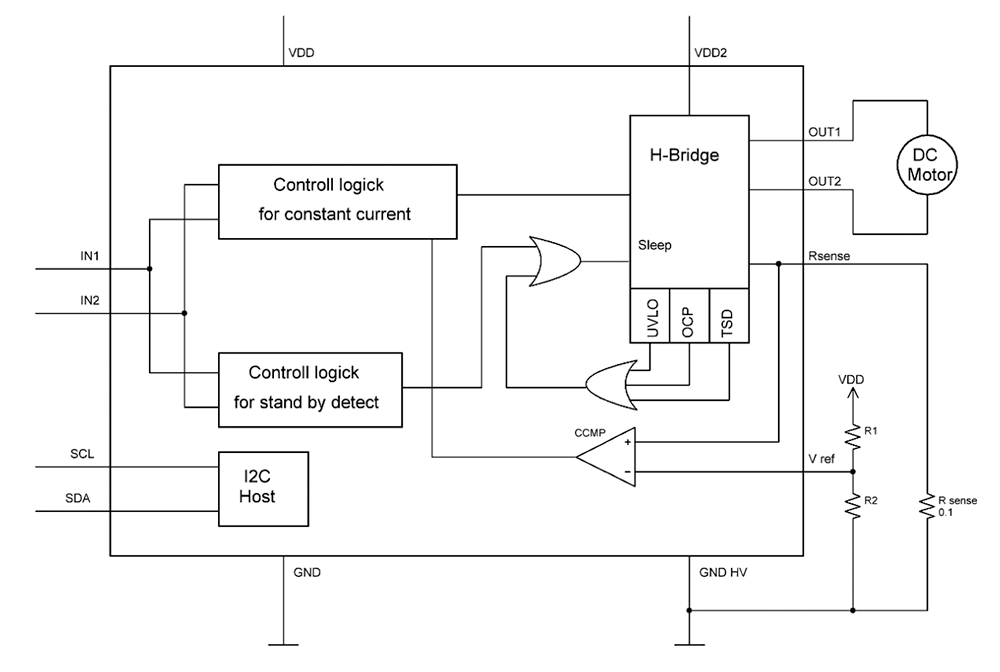

The SLG7MD47679 is a versatile H-Bridge motor driver solution, designed for high-voltage applications with configurable Pulse Width Modulation (PWM) macrocells and robust high-voltage outputs. With high voltage and current handling capabilities, it is ideal for complex motor or load drive applications, smart level translators, and managing high-voltage, high-current loads efficiently. Its compact design, low power consumption, and versatile functionality make it a perfect choice for modern electronics, prioritizing power efficiency while minimizing energy expenditure. PWM current control is facilitated through a resistor between the RS pin and GND. Built-in protection features such as undervoltage lockout, overcurrent protection, and thermal shutdown ensure reliable and safe operation across various environments.
Features
- Two high-voltage high-current drive GPOs
- 3A peak, 1.5A RMS per full bridge
- Current up to 3A peak, 1.5A RMS per GPO/half bridge and up to 6A peak, 3A RMS for two HV GPOs connected in parallel
- Current sense comparator with dynamical Vref mode
- Two PWM macrocells
- Low power consumption
- RoHS-compliant/Halogen-free
- 20-pin STQFN: 2.0mm x 3.0mm x 0.55mm, 0.4mm pitch
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 3.00 MB | |
1 item
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Go Configure Software Hub Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
|
Software Package | Renesas |
1 item
|
||
Boards & Kits
Development
SLG4DVKADV
Active
GreenPAK Advanced Development Board
The GreenPAK Advanced Development Board provides full programming, emulation, and testing functions for the GreenPAK devices - for use with SLG46xxxX-SKT / SLG47xxxV-SKT socket kits.
It works in tandem with the GreenPAK Designer software (built into Go Configure™ Software Hub), and it allows...
Recommended Documents:
Test This Board Remotely
Available on Lab on the Cloud, use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Development
SLG4DVKLITE
Active
GreenPAK Lite Development Board
The GreenPAK Lite Development Board provides full programming, emulation, and testing functions for GreenPAK devices, working in a pair with the Go Configure™ Software Hub. Board functionality is provided by the RX66T MCU from Renesas.
Recommended Documents:
Evaluation
SLG47115V-EVB
Active
HVPAK SLG47115 Evaluation Board
The evaluation board for SLG47115V has been developed for testing designs with all features and high current loads.
Recommended Documents:
Development
SLG47115V-SKT
Active
HVPAK SLG47115 Development Kit with Socket Adapter
The SLG47115V-SKT includes the SLG4SA20HV-20x30 socket adapter and 50 SLG47115V samples.
Recommended Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
