RTK7RLG220C00000BJ

Active

RL78/G22 Fast Prototyping Board (RL78/G22 FPB)

Order Now
RL78/G22 Fast Prototyping Board Quick Start GuideRL78/G22 Fast Prototyping Board User's ManualRL78/G22 Fast Prototyping Board SchematicRL78/G22 Fast Prototyping Board BOM List

Overview

The RL78/G22 Fast Prototyping Board, featuring the RL78/G22 microcontroller, is ideal for various prototype development. It supports OTA firmware updating of a secondary MCU, Wi-Fi, LoRa and LoRaWAN-based wireless communication, and so on by sample code. The built-in emulator circuit that is equivalent to E2 emulator Lite allows programming and debugging without extra tools. Additionally, it has Arduino Uno and Pmod™ interfaces, access to all microcontroller pins, and high scalability. It includes two touch buttons and one slider using a capacitive sensor unit, unique to RL78/G22. Renesas also provides an Arduino library that supports creating various programs (sketches) on the Arduino IDE.

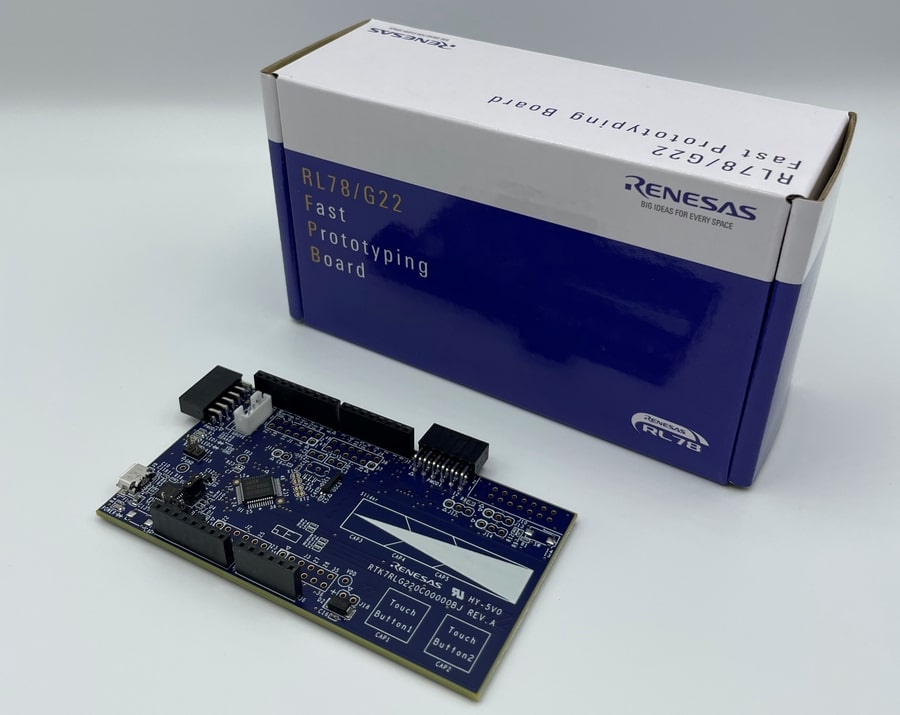

RL78/G22 Fast Prototyping Board with Box

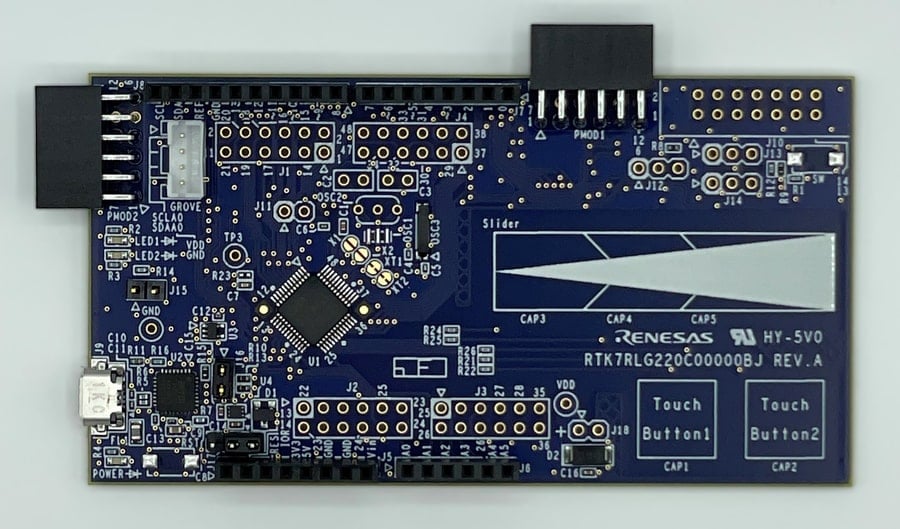

RL78/G22 Fast Prototyping Board
RL78/G22 Fast Prototyping Board with Box
RL78/G22 Fast Prototyping Board
  • Equipped with an RL78/G22 16-bit microcontroller (48-pin, ROM: 64KB, RAM: 4KB)
  • Programs can be written and debugged via the COM Port communication by connecting it to a PC with a USB cable
  • Able to access all the microcontroller pins
  • Comes standard with Arduino Uno, Pmod™ and Grove interfaces
  • Arduino library available
  • Equipped with capacitive touch sensor buttons
  • Support for various RL78 software and tools
