Overview
Description

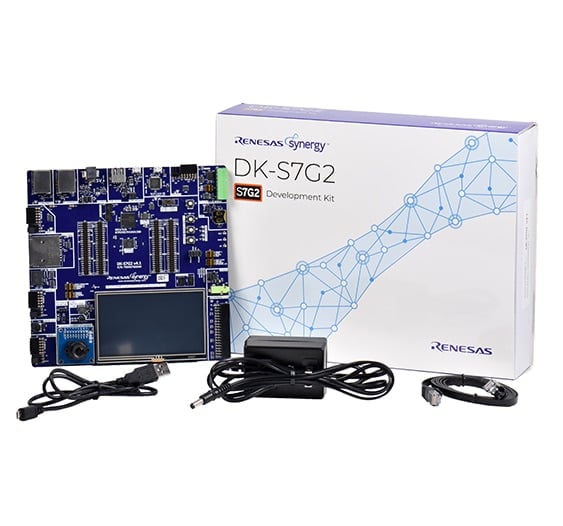

Discover the flagship of the Synergy™ microcontroller (MCU) family, develop seamlessly with the Synergy Platform, and implement special functions with the expansion board.
System Requirements
- Microsoft® Windows® 7 or 10 with Intel® Core™ family processor or equivalent running at ≥2.0GHz
- ≥8GB system RAM
- ≥2GB free hard drive space
- ≥2 USB 2.0 ports
- Internet connection
Features
- Modular design with full pin access to the S7G2 MCU Group
- Accelerate code development with the tightly integrated and qualified Synergy Software Package (SSP)
- View, step through, and debug code with the e2 studio IDE from Renesas or IAR Embedded Workbench® for Renesas Synergy
- USB, Ethernet, CAN, Bluetooth® Low Energy (LE), and Pmod™ connectors for third-party, off-the-shelf, and custom multi-function boards
- Human machine interface (HMI) functionality with a capacitive touch sensing unit (CTSU), 4.3-inch WQVGA (480 x 272) resistive touch TFT LCD, VGA camera interface, and GUIX Studio™ for developing user interface screens
- Security and encryption functions for secure data communications and storage, supporting industry standard algorithms such as AES, DSA, 3DES, RSA, SHA, and GHASH
- Safety features including hardware diagnostics, memory protection, and watchdog timeout
- DIP switches for easy, error-proof configuration and auto LED indication, ensuring routing is correct for the desired configuration of signals
- Debugging and programming with J-Link® OB on-board
Applications
Design & Development
Support
Support Communities
- Calling gx_api functions from sdram (DK s7g2)
Hello, we are programming in C++. While our development we have the issue to put some Objects in the sdram, because the internal RAM isn't big enough. We created Window Objects and this objects we want to put to the external sdram (With "BSP_PLACE_IN_SECTION(".sdram");". The ...
Jul 24, 2018 - variable initialization in SDRAM on DK-S7G2.
Dear, I am trying to initialize a variable located in SDRAM. However, it seems that the variable isn't initialized as "0" value. Could you let me know how to initialize it located in SDRAM?
Sep 26, 2023 - Change ethernet port on DK-S7G2
Hi everyone, I used NetX demo available on Renesas website for my webserver on DK, but I need to send video captured by the camera on my web page of the webserver. The project provides by Renesas use port 1 Ethernet for the webserver and it works. On the documentation ...
Sep 16, 2016
Knowledge Base
- Does the power supply dip on the DK-S7G2 when the GainSpan SDIO wireless board is plugged in?
Question: I'm seeing my power supply drop when I plug in the Gainspan SDIO wireless board on my DK-S7G2 kit. Is this expected behavior? Answer: The board design on the DK-S7G2 is such that a power supply drop of about 600mV for 20ms is typical when the ...
- Using SCI-7 Pins as IO on DK-S7G2 Board prior to SSP 1.7.8
Last Updated:09/16/2020 The BSP for the S7G2-DK board configures pins PA02 and PA03 as SCI pins for simple I2C to read from an EEPROM to determine the board version. This occurs after the .pincfg settings have been applied. After this action has occurred the ...
Sep 16, 2020 - What switch settings should be set for the weather panel application project on the DK-S7G2?
Question: What switch settings are needed for the weather panel application project on the DK-S7G2 kit? Answer: You should make the following settings to the switches on the DK-S7G2 kit for the weather panel application project: Set DRAM switch on S5 (bottom left corner of the motherboard) to ...
