Overview
Description

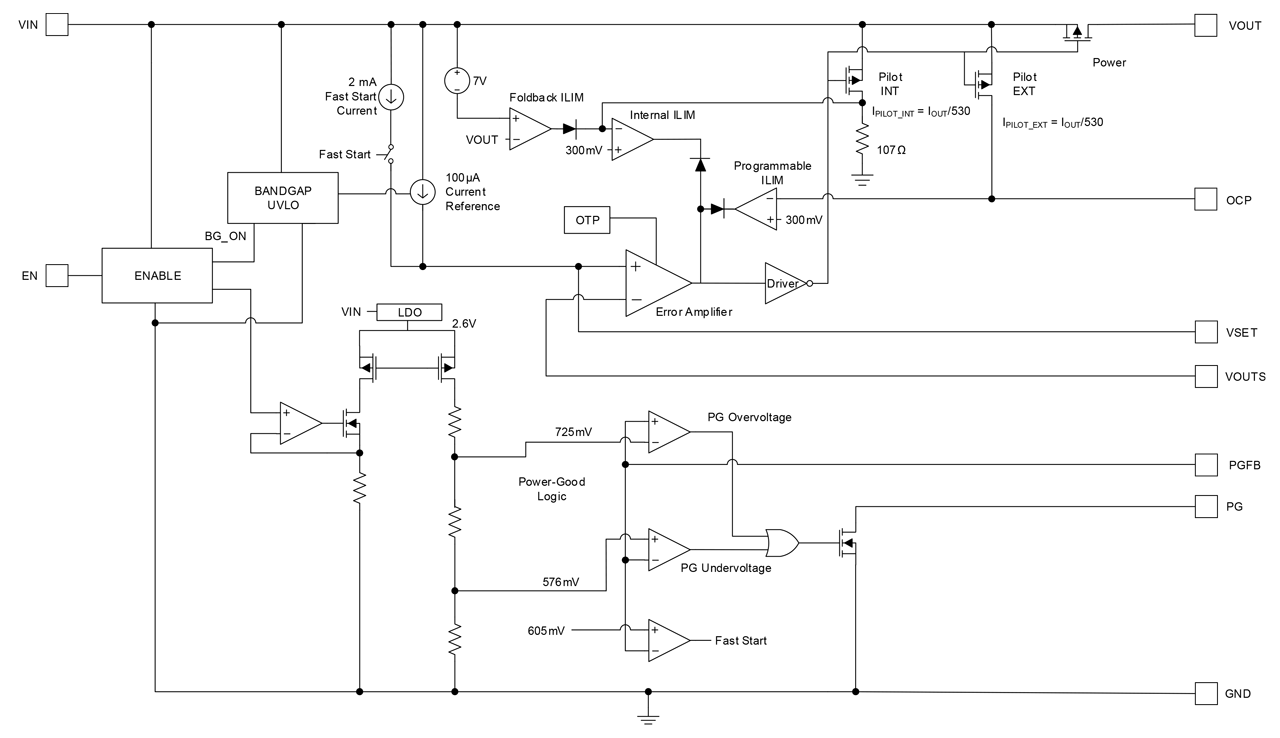

The ISL75054M is a radiation tolerant low-dropout linear regulator with ultra-low noise and high PSRR used as a power supply for ADC and RF applications. It has an operating supply voltage range of 2.7V to 30V and an output voltage range of 0.5V to VIN - VDO. The device supplies up to 1.0A of current at a typical 379mV dropout voltage. Built-in protection includes foldback, internal and externally programmable current limit, and over-temperature protection. The ISL75054M features excellent noise performance and PSRR for radiation tolerant LDOs, with an ultra-low RMS noise of 4μVRMS from 10Hz to 100kHz and an ultra-high PSRR of 101.5dB at 120Hz.
The ISL75054M is offered in a 16-lead heatsink thin shrink small outline (HTSSOP) package and operates across the full military temperature range of -55 °C to +125 °C.
Features
- Qualified for Renesas Rad Tolerant Screening and QCI Flow (R34TB0004EU)
- Ultra-low RMS noise: 4μVRMS from 10Hz - 100kHz
- Ultra-low spot noise: 12.5nV/√Hz at 10kHz
- Ultra-high PSRR
- 101.5dB at 120Hz, 85dB at 10kHz, 40.9dB at 100kHz, 32.5dB at 1MHz, and 16.5dB at 10MHz
- Maximum output current: 1A
- Input voltage range
- 2.7V to 30V
- Output voltage range (VOUT): 0.5V to VIN - VDO
- Low dropout voltage (VDO): 379mV with IOUT = 1A
- Output voltage adjustability using a single resistor
- Programmable and internal ILIM with foldback
- TID Radiation Lot Acceptance Testing (RLAT) (LDR: ≤10mrad(Si)/s)
- ISL75054M30VZ: 30krad(Si)
- ISL75054M50VZ: 50krad(Si)
- SEE Characterization
o No DSEE for VIN = 32V at 46MeV•cm2/mg
o No SEFI at 46MeV•cm2/mg
o No SET on VOUT at 46MeV•cm2/mg
