Features
- Interface: sin/cos single-ended or differential
- Qualified for Industrial market
- Temperature range: -40 °C to 125 °C ambient
- Voltage Supply: 3.3V ±10% or 5.0V ±10%
- Rotational Speed: up to 250.000 rpm (electrical)
- Propagation delay: programmable; < 10µs
- Sin/Cos gain mismatch and offset compensation
- Overvoltage, reverse polarity, short-circuit protected
- Digital programming interface: I²C or SPI
- AB incremental pulse outputs
- 16-TSSOP package
Description
The IPS2200 is an industrial-qualified, inductive position sensor IC capable of providing the absolute rotor position as sine and cosine. This IC uses the physical principle of Eddy currents to detect the position of a simple metallic target moving above a set of coils, consisting of one transmitter and two receivers. The output interface can be configured as single-ended, for higher system cost effectiveness or differential to better reject common mode disturbers. The IPS2200 can be used for high-speed motor commutation up to 250krpm electrical, in industrial, medical, robotic, and consumer applications.

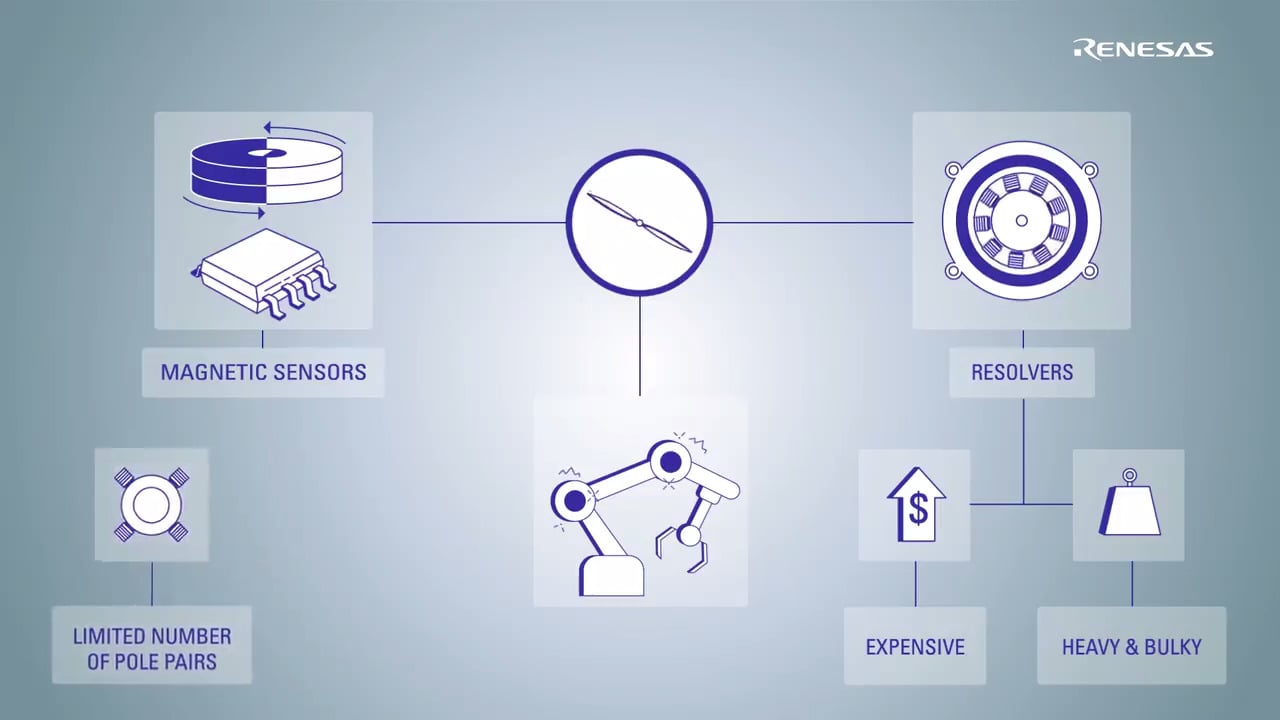

Stray filed immunity, lower weight, smaller size, and a substantial BOM optimization make the IPS2200 the key element of the Resolver 4.0, a disruptive solution.
Applications
- Rotor position detection for brushless DC motors; adaptable to any pole pair count
- Replacement of brushless resolvers
- Magnet-free rotor speed sensors
Absolute Inductive Position Sensor Reference Design
The CN317-ABSIPSPOCZ Absolute Inductive Position Sensor Reference Design is a board that combines two inductive position sensors (IPS2200) and a highly cost-efficient microcontroller (RX24T) to realize the function of a simple rotary encoder. The RX24T is responsible for measuring the... Read More
Test This Board Remotely
Resolver 4.0 Catalog
The Resolver 4.0 catalog offers market-ready solutions that can be implemented in a wide range of applications such as automotive systems, robotics, servo motors, home automation, and medical.
