Overview
Description

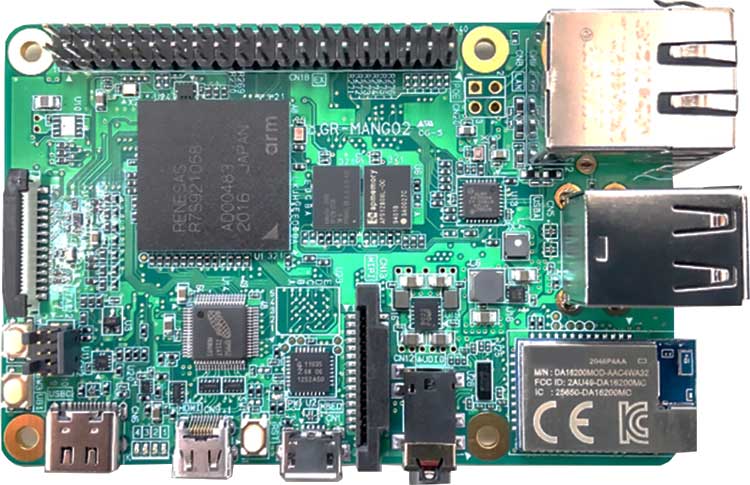

GR-MANGO is the Gadget Renesas board for the Renesas RZ Family's RZ/A2M group of microprocessor (MPU) products. The layout is compatible with Raspberry Pi 4, GR-MANGO is an Arm® Mbed™ enabled development platform. Additionally, the Dynamically Reconfigurable Processor (DRP) equipped in the RZ/A2M can perform image processing that is 10 times faster than conventional CPU processing. The library for DRP enables power-saving and high-speed processing of camera images.
Also, GR-MANGO supports real-time OSs (FreeRTOS, Azure RTOS) and various libraries (SSL/TLS, OTA, MQTT, TCP/IP, etc.) for IoT devices provided by major cloud vendors such as Amazon Web Services (AWS) and Microsoft.
In addition, it is equipped with input/output interfaces such as HDMI, audio, Ethernet, USB, and CAN, and can realize high-level IoT systems and embedded AI.
Technical Information
- Mbed site
- Core Group Vendor Site
- FreeRTOS™ Software Package
- AWS Partner Device Catalog
- Azure Certified Device Catalog
- Azure RTOS Sample
Schematic/Design
GR-MANGO Board Distributors
Features
- Equipped with Renesas' original Dynamically Reconfigurable Processor (DRP) technology
- Equipped with Arm Cortex®-A9 RZ/A2M
- High-speed operation of CPU 528MHz
- Built-in RAM 4MB, external 16MB
- MIPI-CSI camera interface
- Micro HDMI
- Ethernet
- Audio In/Out
- USB host function (Type-C)
- CAN
- microSD
Applications
|
Barcode Scanner System
Industrial barcode scanner supporting 1D/2D barcodes and NFC, with edge intelligence and flexible connectivity.
|
|
Mbed-Based Image Processing System
The Mbed-based system enables rapid prototyping for smart cameras with AI, IoT, and sensor integration.
|
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide | PDF 4.76 MB 日本語 | |
| Release Note | RZ/A2M 2D Barcode Package for GR-MANGO
The RZ/A2M 2D Barcode Package enables fast QR code detection and decoding on GR‑MANGO using the DRP and ZXing library, handling camera capture, image processing, and display. This package includes the 2D barcode sample, DRP driver, DRP library, and quick start guides, supporting efficient vision‑based application development on RZ/A2M.
|
|
| Release Note | RZ/A2M IRIS Package for GR-MANGO
The RZ/A2M IRIS Package enables real‑time iris‑region detection on GR‑MANGO using the DRP for high‑speed image processing. This package includes the IRIS sample application, DRP driver, DRP library, and quick start guides, supporting efficient development of biometric and vision‑processing solutions on RZ/A2M.
|
|
| Release Note | RZ/A2M SDIO Wi-Fi Package for GR-MANGO
The RZ/A2M SDIO Wi‑Fi Package for GR‑MANGO enables wireless image streaming and Wi‑Fi evaluation using the SX‑SDMAC module, demonstrating how to implement SDIO‑based connectivity. This package includes the Wi‑Fi streaming sample, Wi‑Fi evaluation sample, and SX‑SDMAC/Octabus driver components (xml/zip/mdf), supporting efficient Wi‑Fi feature development on GR‑MANGO.
|
|
| Release Note | RZ/A2M Simple Applications Package for GR-MANGO
The RZ/A2M Simple Applications Package for GR‑MANGO enables quick evaluation of key RZ/A2M features, including camera input, display, DRP image processing, fast JPEG decoding, sprite rendering, communication, storage, and audio I/O. This package provides initialization, FreeRTOS blinking, camera display, multiple DRP samples, JCU, Sprite Engine, Ethernet, USB, SDHI, RTC, PWM, RSPI, SSIF, and firmware‑update projects, supporting efficient application development on GR‑MANGO.
|
|
| Quick Start Guide | RZ/A2M Group RZ/A2M Software Package for GR-MANGO Quick Start Guide
|
|
| PCB Design Files | GR-Mango Board Design Files
|
|
7 items
|
||
Design & Development
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code | RZ/A2M 2D Barcode Package for GR-MANGO
Application:
Consumer Electronics, Industrial
Compiler:
GNU ARM Embedded, ICCARM
Function:
Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
IDE:
e2 studio, IAR EWARM
The RZ/A2M 2D Barcode Package enables fast QR code detection and decoding on GR‑MANGO using the DRP and ZXing library, handling camera capture, image processing, and display. This package includes the 2D barcode sample, DRP driver, DRP library, and quick start guides, supporting efficient vision‑based application development on RZ/A2M.
|
|
| Sample Code | RZ/A2M IRIS Package for GR-MANGO
Application:
Consumer Electronics, Industrial
Compiler:
GNU ARM Embedded, ICCARM
Function:
Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
IDE:
e2 studio, IAR EWARM
The RZ/A2M IRIS Package enables real‑time iris‑region detection on GR‑MANGO using the DRP for high‑speed image processing. This package includes the IRIS sample application, DRP driver, DRP library, and quick start guides, supporting efficient development of biometric and vision‑processing solutions on RZ/A2M.
|
|
| Sample Code | RZ/A2M SDIO Wi-Fi Package for GR-MANGO
Application:
Consumer Electronics, Industrial
Compiler:
GNU ARM Embedded, ICCARM
Function:
Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
IDE:
e2 studio, IAR EWARM
The RZ/A2M SDIO Wi‑Fi Package for GR‑MANGO enables wireless image streaming and Wi‑Fi evaluation using the SX‑SDMAC module, demonstrating how to implement SDIO‑based connectivity. This package includes the Wi‑Fi streaming sample, Wi‑Fi evaluation sample, and SX‑SDMAC/Octabus driver components (xml/zip/mdf), supporting efficient Wi‑Fi feature development on GR‑MANGO.
|
|
| Sample Code | RZ/A2M Simple Applications Package for GR-MANGO
Application:
Consumer Electronics
Compiler:
GNU ARM Embedded, ICCARM
Function:
Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
IDE:
e2 studio, IAR EWARM
The RZ/A2M Simple Applications Package for GR‑MANGO enables quick evaluation of key RZ/A2M features, including camera input, display, DRP image processing, fast JPEG decoding, sprite rendering, communication, storage, and audio I/O. This package provides initialization, FreeRTOS blinking, camera display, multiple DRP samples, JCU, Sprite Engine, Ethernet, USB, SDHI, RTC, PWM, RSPI, SSIF, and firmware‑update projects, supporting efficient application development on GR‑MANGO.
|
|
| Sample Code |
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
日本語
Application:
Industrial
Compiler:
GNU ARM Embedded
Function:
Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
IDE:
e2 studio
|
|
