Overview

Description

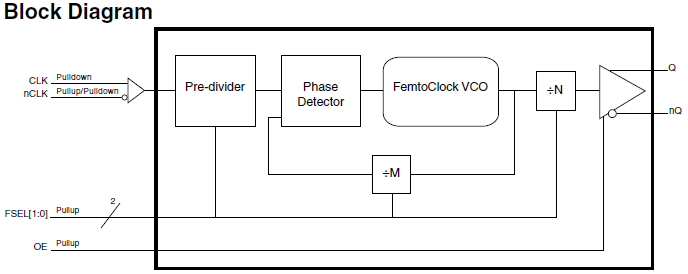

The 8N3PG10MBKI-062 is a very versatile programmable LVPECL synthesizer that can be used for OTN/SONET to Ethernet or 10GB Ethernet to OTN/SONET rate conversions. The conversion rate is pin-selectable and one of the four rates is supported at a time. In the default configuration, an input clock of 100MHz is converted to 311.04MHz output. The device uses Renesas' fourth-generation FemtoClock NG technology to deliver low phase noise clocks combined with low power consumption.

Features

  • Fourth Generation FemtoClock® Next Generation (NG) technology
  • Footprint compatible with 5mm x 7mm differential oscillators
  • One differential LVPECL output pair
  • CLK, nCLK input pair can accept the following levels: HCSL, LVDS, LVPECL, and LVHSTL
  • Output frequencies: 150MHz, 125MHz, 155.52MHz, and 311.04MHz
  • RMS phase jitter, 12kHz to 20MHz: 0.295ps (typical) at 3.3V
  • Full 3.3V or 2.5V operating supply
  • -40 °C to 85 °C ambient operating temperature
  • Lead-free (RoHS 6) packaging

Comparison

Applications

Documentation

Design & Development

Models

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.

Diagram of ECAD Models
