Overview
Description

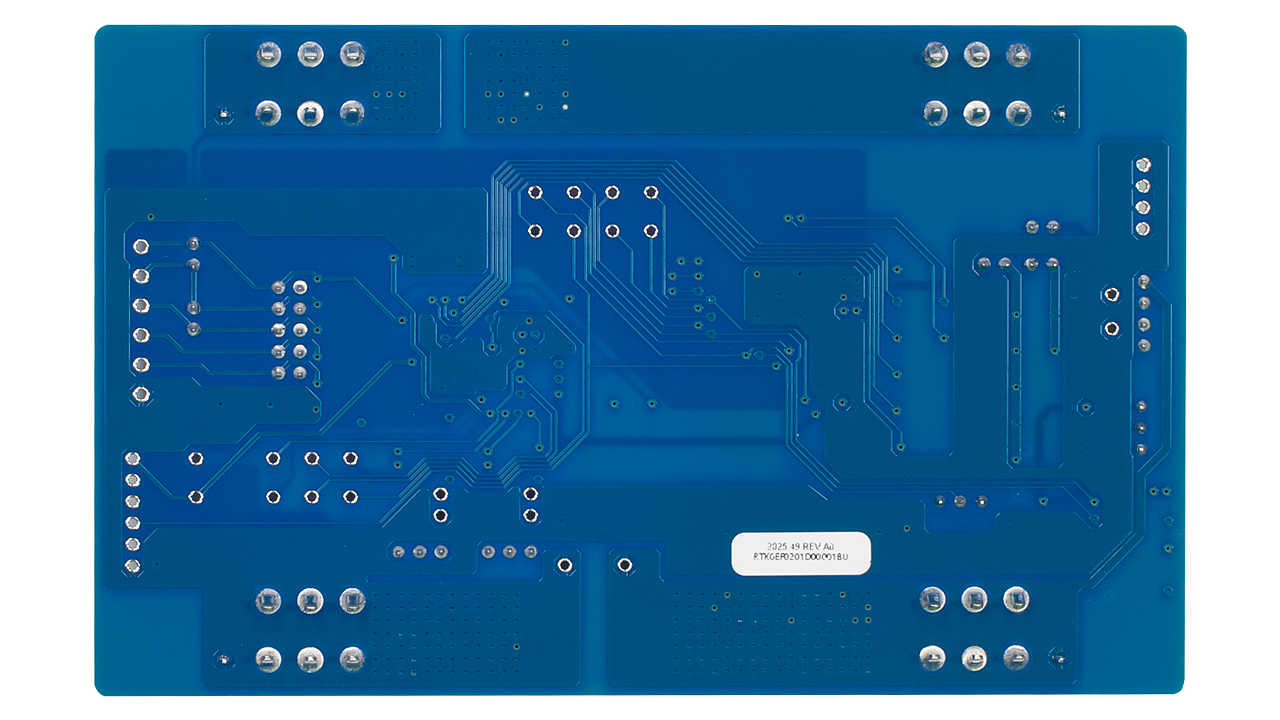

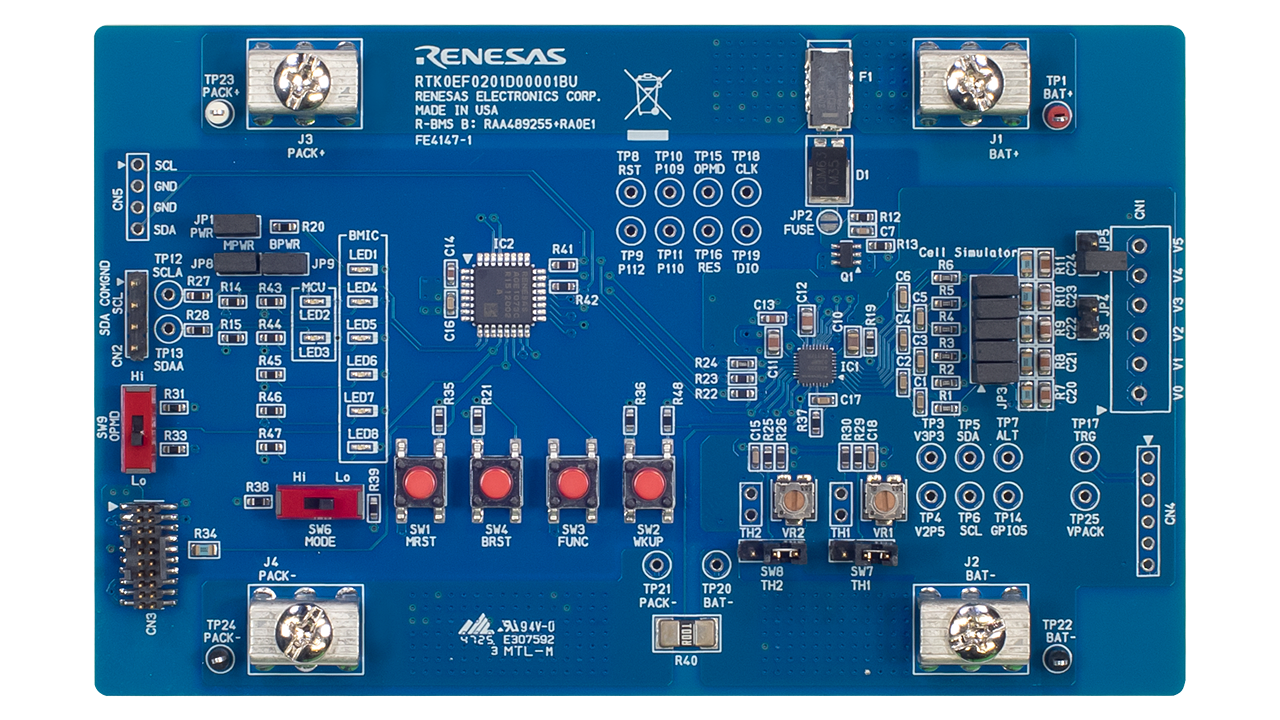

The RTK0EF0201DK00001BU is a battery management system (BMS) reference design that implements a 3‑ to 5‑cell lithium‑ion (Li‑ion) battery monitoring and control solution based on Renesas' battery management system (R‑BMS).
The design is built around the RAA489255 battery manager integrated circuit (IC), which uses a 12‑bit analog‑to‑digital converter (ADC) to measure pack voltage, individual cell voltage, and temperature. It also supports pack current detection, high‑voltage general-purpose input/output (GPIOs), trigger input, and self‑diagnostic capabilities.
Renesas' R-BMS battery management solution combines the RAA489255 battery monitor with an RA Arm® Cortex®-M23 microcontroller (MCU) running the R‑BMS B firmware package. R-BMS B is a firmware solution for battery management ICs (BMICs) to enable key BMS functions without requiring firmware development. These functions include voltage and temperature protection, capacity estimation based on open-circuit voltage, system status monitoring, data logging, and SMBus communication for system control and diagnostics, with the source code available to allow for system integration.
Features
- Supports 3‑ to 5‑cell Li-ion battery configurations
- Battery monitor IC enables accurate cell voltage and temperature measurement
- RA MCU based on the Arm Cortex‑M23 core for system control
- Integrated five‑channel LED driver for status indication
- Built‑in voltage regulator to support system power requirements
- Enables key BMS functions, including cell balancing, protection, and monitoring
- Suitable for power tools and industrial and consumer battery‑powered applications
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| PCB Design Files | ZIP 1.32 MB | |
| Manual - Development Tools |
PDF
2.76 MB
The RTK0EF0201DK00001BU reference design uses the RAA489255 industrial battery management IC, which supports 3- to 5-cell Li-ion battery packs and provides accurate voltage and temperature monitoring. This manual provides instructions for setting up and evaluating the Renesas' battery management system (R-BMS) firmware using a reference board and monitoring tool, supporting both battery emulator and real-cell configurations.
|
|
| Quick Start Guide |
PDF
1.08 MB
The R-BMS Monitor Tool is a software application designed to assist users in evaluating, developing, and optimizing battery management systems based on defined battery characteristics using Renesas battery management products. This manual, applicable to Rev.1.2.5.1, provides an overview of system requirements, GUI features, operating modes, and key functions for configuring, monitoring, and controlling BMS performance.
|
|
| Manual - Software | R-BMS Monitor Tool GUI Software Manual
This manual describes the R-BMS Monitor Tool, a software application used to evaluate, develop, and optimize battery management systems (BMS) based on defined battery characteristics with Renesas battery management products. It provides tool installation requirements, GUI navigation, communication setup, and detailed instructions for monitoring, configuring, and controlling BMS functions in both Data Bypass and BMIC + MCU operating modes.
|
|
4 items
|
||
Product Options
| Part Number | Status | Stock | Sampleable |
|---|---|---|---|
| RTK0EF0201DK00001BU | Active | Out of Stock | Available |
