Overview
Description

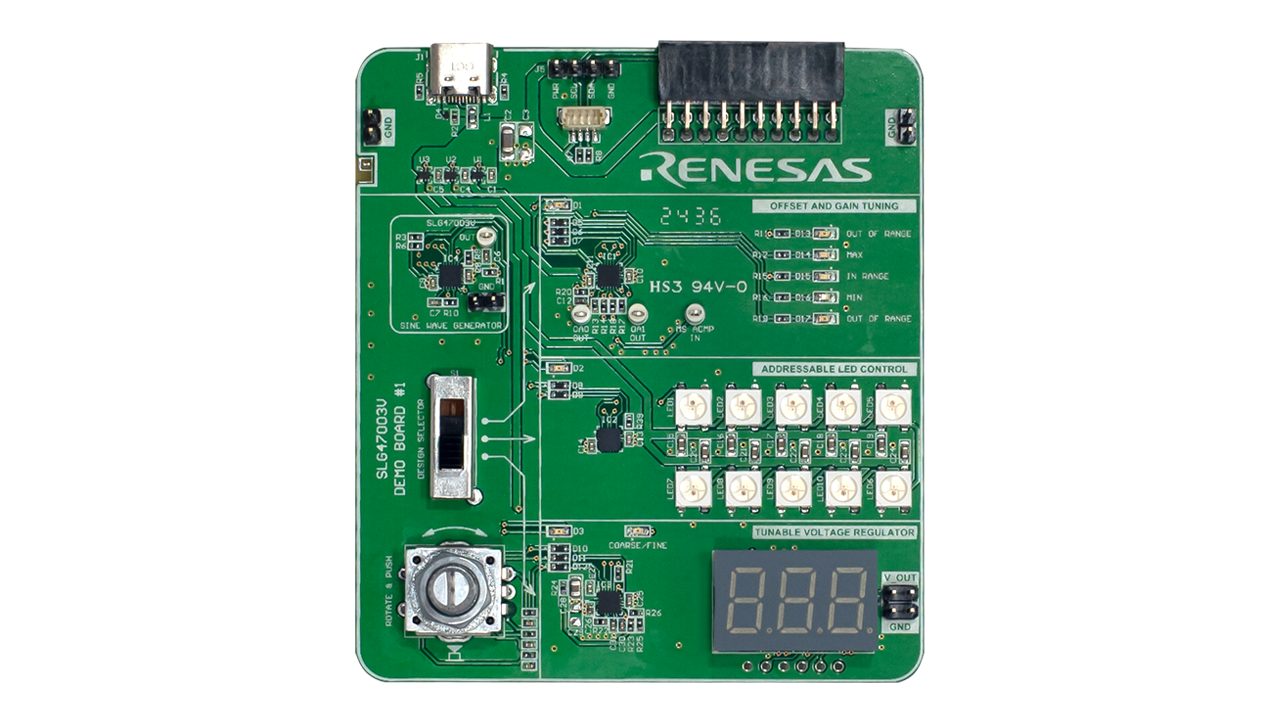

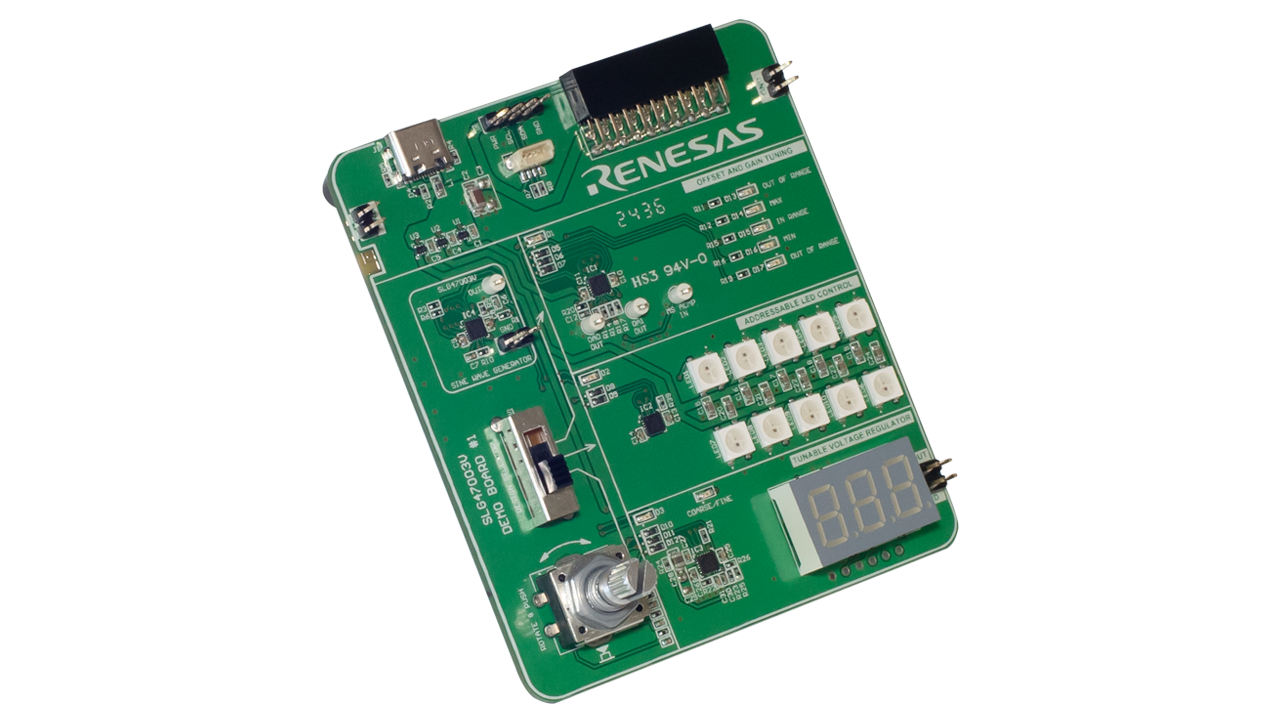

The SLG47003V-DMO demonstration board is designed to showcase the basic capabilities of the SLG47003 programmable mixed-signal matrix integrated circuit. Three designs are implemented on the board: an analog signal detector, a digital output for a programmable LED, and a linear regulator.
This board helps users understand the operation of the digital and analog blocks in the SLG47003 GreenPAK™ IC, and demonstrates the basic concepts of analog design, such as offset and gain, and their correct application.
Features
- External board power from USB Type-C port
- GreenPAK™ Serial Debugger support
- GreenPAK Advanced Development Platform support
- Go Configure Software Hub software compatible
- Two test points (TS) for the output of internal op amps
- Encoder for schematic parameters regulation
