Overview
The RTKAOPAMPEVKIT1Z puts a wide range of Renesas op amps, from high-bandwidth rail-to-rail devices to precision chopper-stabilized amplifiers, in your hands for quick and easy evaluation. With configurable resistor networks and smart jumpers, you can quickly switch from configurations such as inverting, non-inverting, current sensing, high-pass filtering, low-pass filtering, and much more. Our evaluation board provides everything you need to compare, evaluate, and choose the right op amp for your application.
Features
- Multiple interchangeable Renesas op amp daughter cards
- Dual and single supply operation
- Fully reconfigurable analog signal path
- Accessible test points for signal probing and characterization
- Configurable for numerous circuit setups
- High and low-pass filters
- Inverting and non-inverting amplifiers
- Current sensing
- And many more
Products in the Design
Box Contents

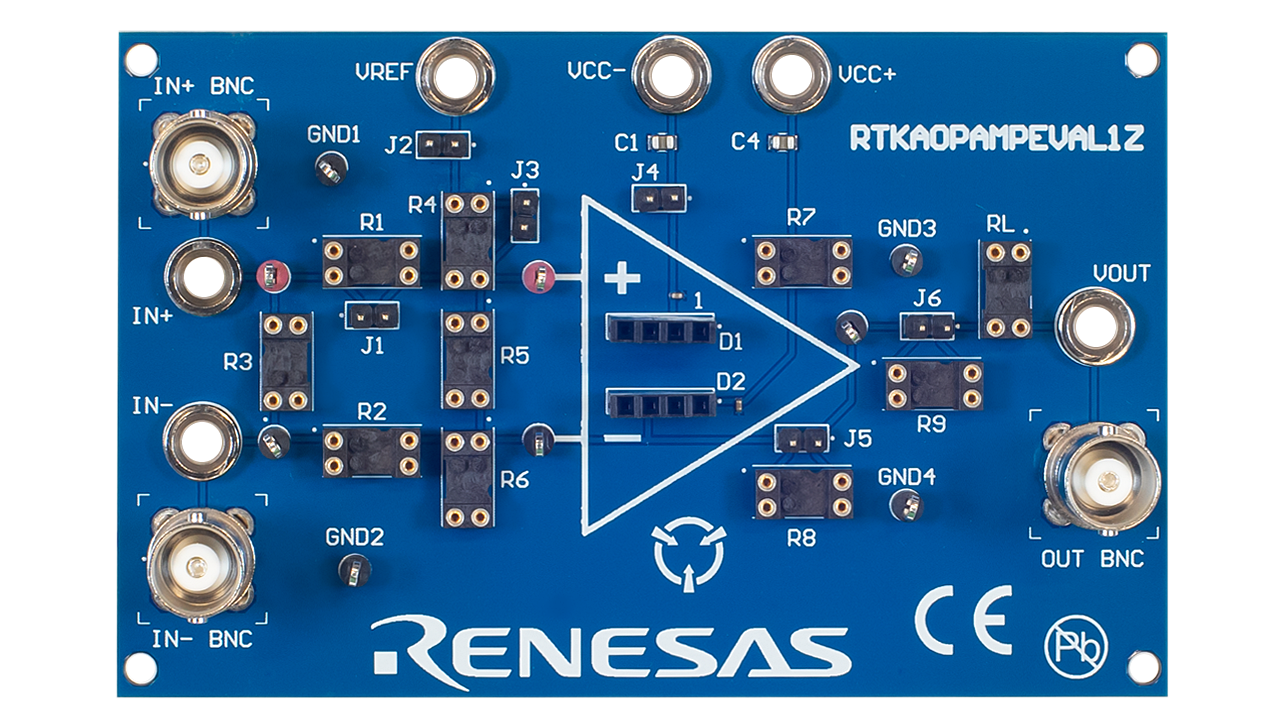

- RTKAOPAMPEVAL1Z (main board)

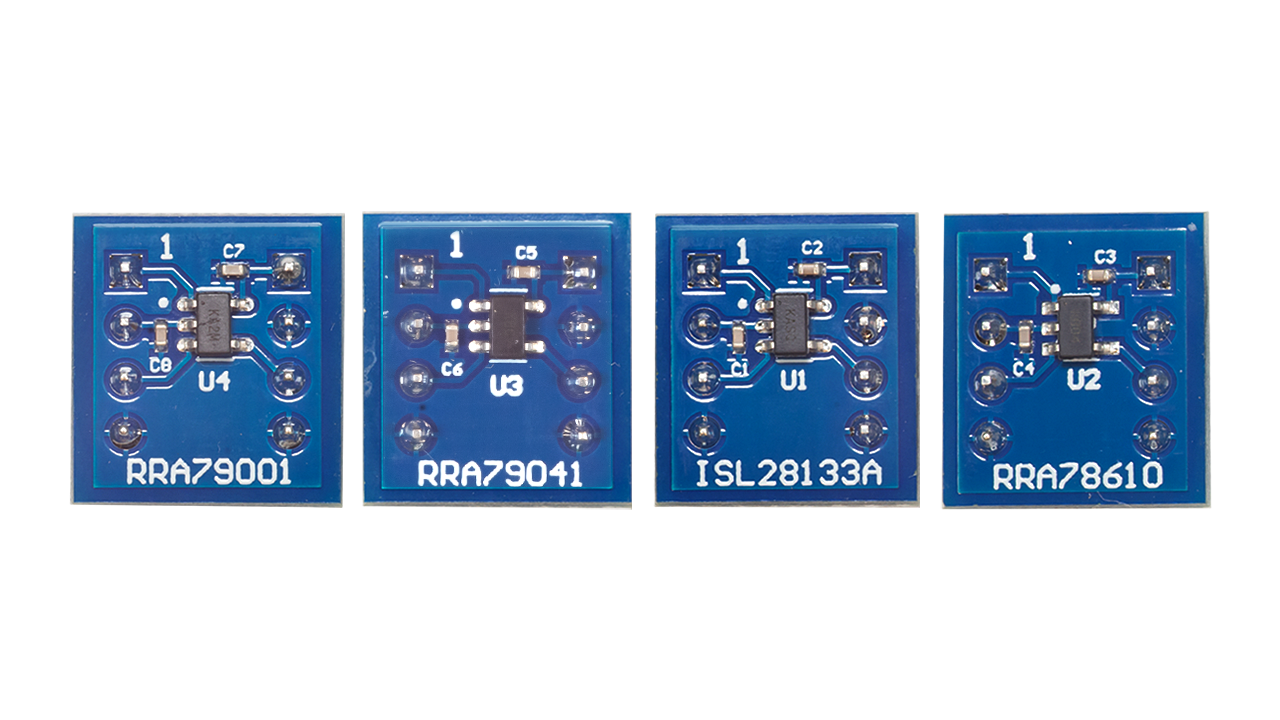

- Four daughter cards (RRA78610, RRA79001, RRA79041, ISL28133A)
