Overview
Description
The Renesas Solution Starter Kit for the RX23W MCU is the perfect starter kit for developers who are new to the RX23W (Code Flash 512KB, Pin Count 85-pin).

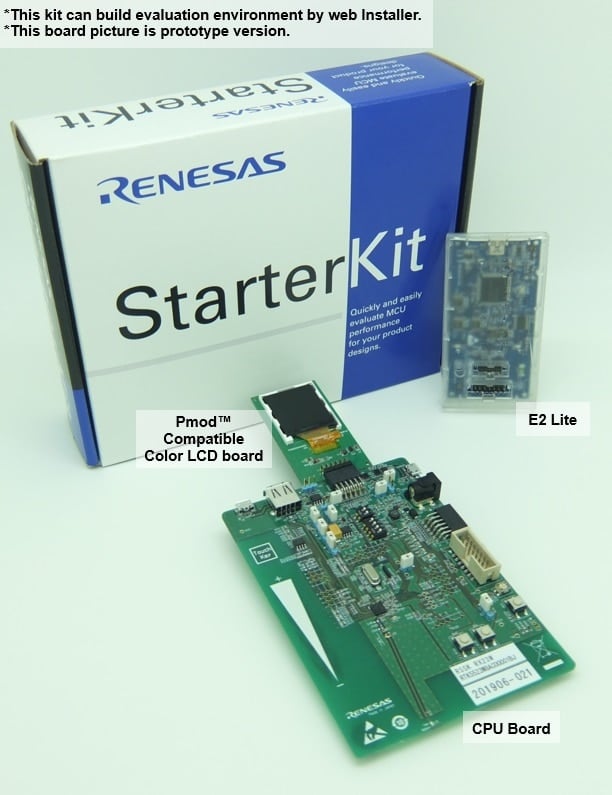

The kit includes an LCD display module and an on-chip debugging emulator. Download the integrated development environment and start evaluating the RX23W's performance right after unboxing this Renesas Solution Starter Kit.
Features

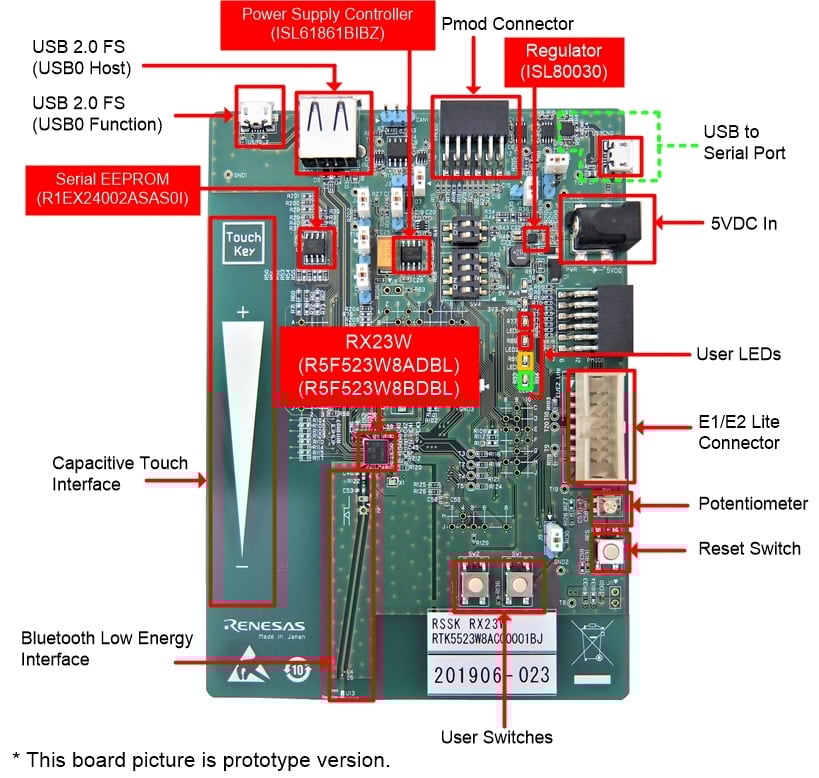

- Devices on the board
- Renesas Solution Starter Kit for RX23W: R5F523W8ADBL (Code Flash 512KB, Pin Count 85-pin)
- Renesas Solution Starter Kit for RX23W with Built-in Trusted Secure IP Lite: R5F523W8BDB (Encrypt Function Supported, Code Flash 512KB, Pin Count 85-pin)
- RX23W builds in Trusted Secure IP Lite. AES encryption function and robust key management can be evaluated*1
- Bluetooth® 5.0 Low Energy can be evaluated (Download the sample code, including the project for touch feature evaluation.)
- The touch feature (self-capacitive type) can be evaluated (Download the sample code, including the project for touch feature evaluation.)
- 1 channel USB Function and 1 channel USB Host can be evaluated *2
- Communication functions such as CAN *2, IIC, and SCI can be evaluated
- Sample code with easy-to-understand coding techniques is available
- Required IBM-PC compatible PC (needs USB interface and a processor with 1GHz or more), OS: Windows 10/8.1 (other than the listed OS is not supported)
- Applications combining functions using the Firmware Integration Technology (FIT) module can be evaluated
- *1 The product part number (ordering number) differs according to whether or not the MCU includes the encryption function.
- *2 When using this function, prepare an external power supply (AC adapter, etc.) that outputs 5V. Suitable plugs are center plus, outer diameter 5.5mm, and inner diameter 2.1mm.
