RSSK-RL78F25

Active

Capacitive Touch Evaluation System for RL78/F25

Order Now
RL78/F25 Capacitive Touch Evaluation System User's ManualRSSK-RL78F25 - Design Package

Overview

The RL78/F25 capacitive touch evaluation system (RSSK-RL78F25) makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.

RTK7F125FPST0000BJ Evaluation Board

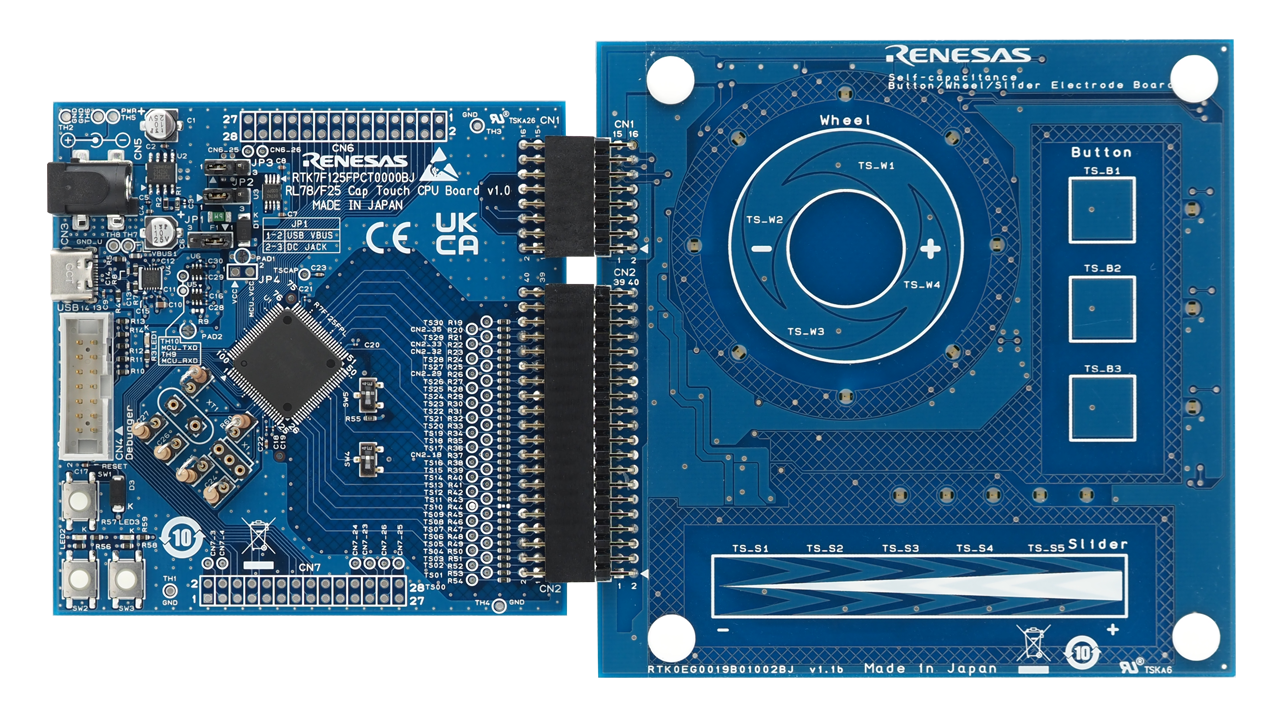

RTK7F125FPST0000BJ Evaluation Board - Top

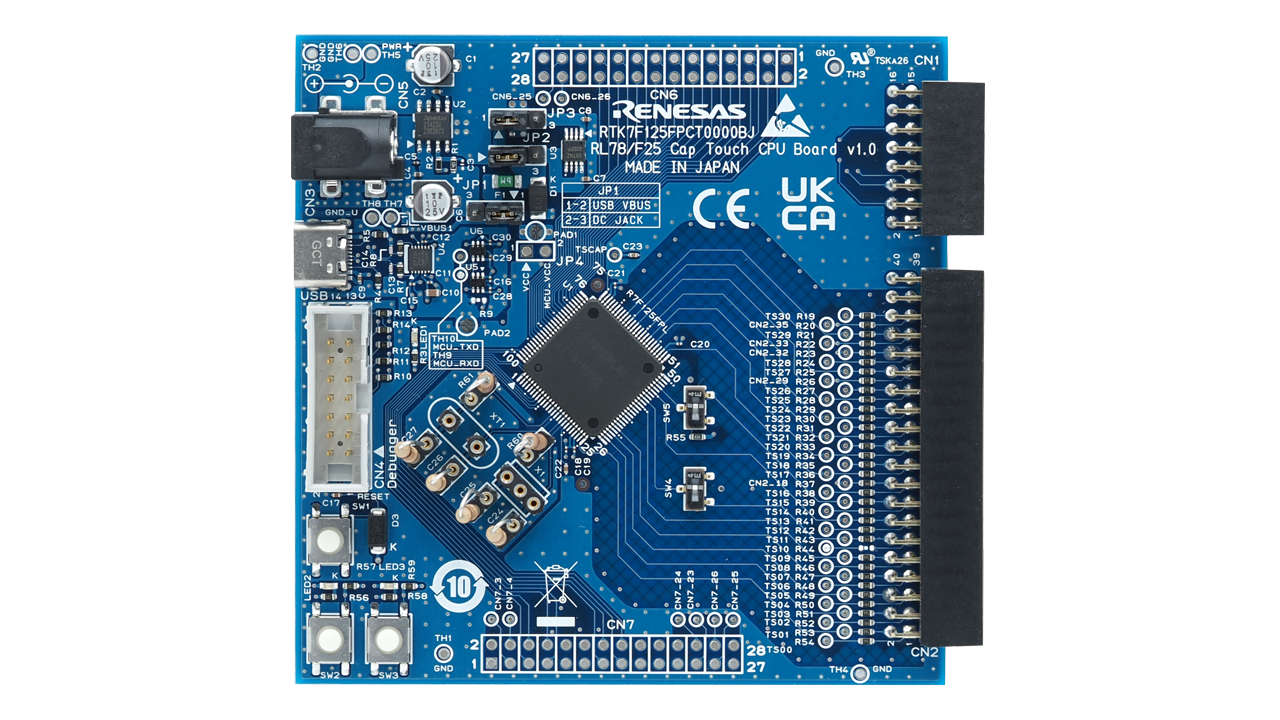

RTK7F125FPCT0000BJ Evaluation Board - Top

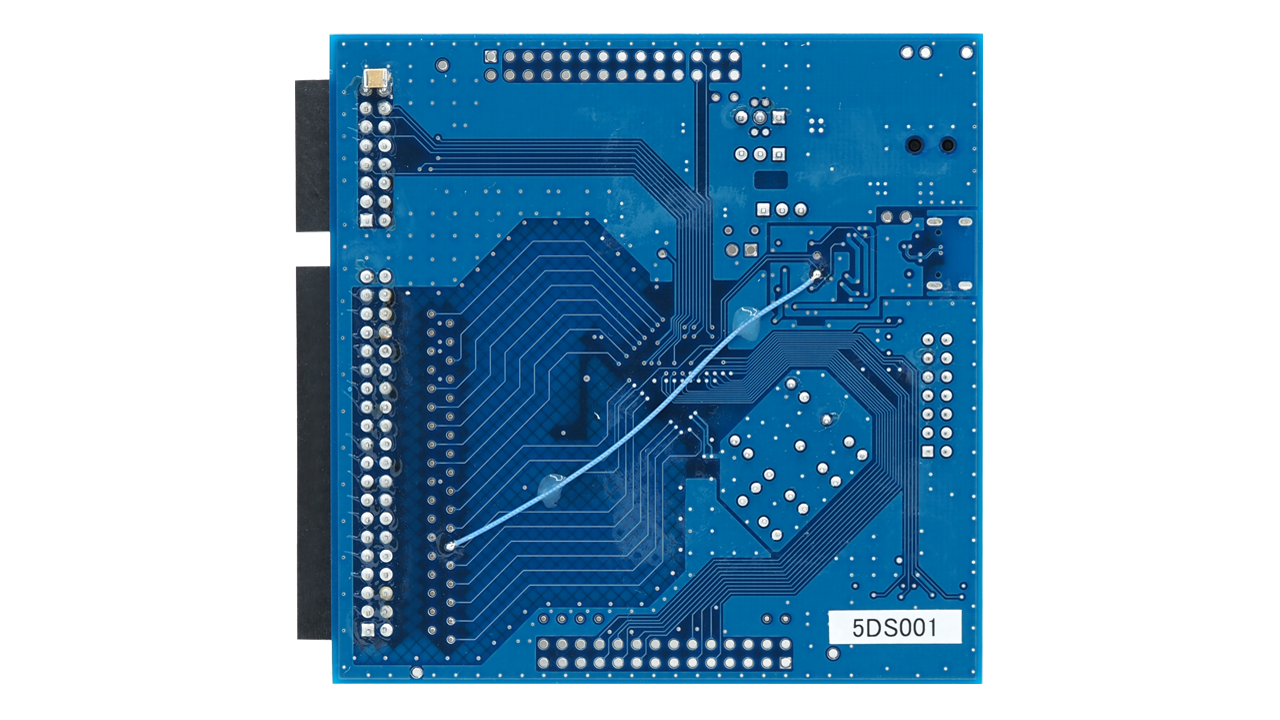

RTK7F125FPCT0000BJ Evaluation Board - Bottom
RTK0EG0019B01002BJ Evaluation Board - Top
RTK0EG0019B01002BJ Evaluation Board - Bottom
RTK7F125FPST0000BJ Evaluation Board
RTK7F125FPST0000BJ Evaluation Board - Top
RTK7F125FPCT0000BJ Evaluation Board - Top
RTK7F125FPCT0000BJ Evaluation Board - Bottom
RTK0EG0019B01002BJ Evaluation Board - Top
RTK0EG0019B01002BJ Evaluation Board - Bottom
  • Use to evaluate various touch functions (button, slider, wheel)
  • Simple prototyping
  • Use as a reference when designing boards or software
  • Easily adjust the sensitivity by using QE for Capacitive Touch
    • Easy to develop touch interfaces even for beginners with GUI
    • Easy operation with intuitive interface
    • Automatically output adjusted source code
  • RL78/F25 MCU (R7F125FPL3AFB-C) mounted
  • Capacitive touch sensor (CTSU2SLa) terminal 31 channels available
  • Board supply voltage can be selected from 7 to 12V (supplied by DC jack) or 5V (supplied by USB)
