Overview
Description

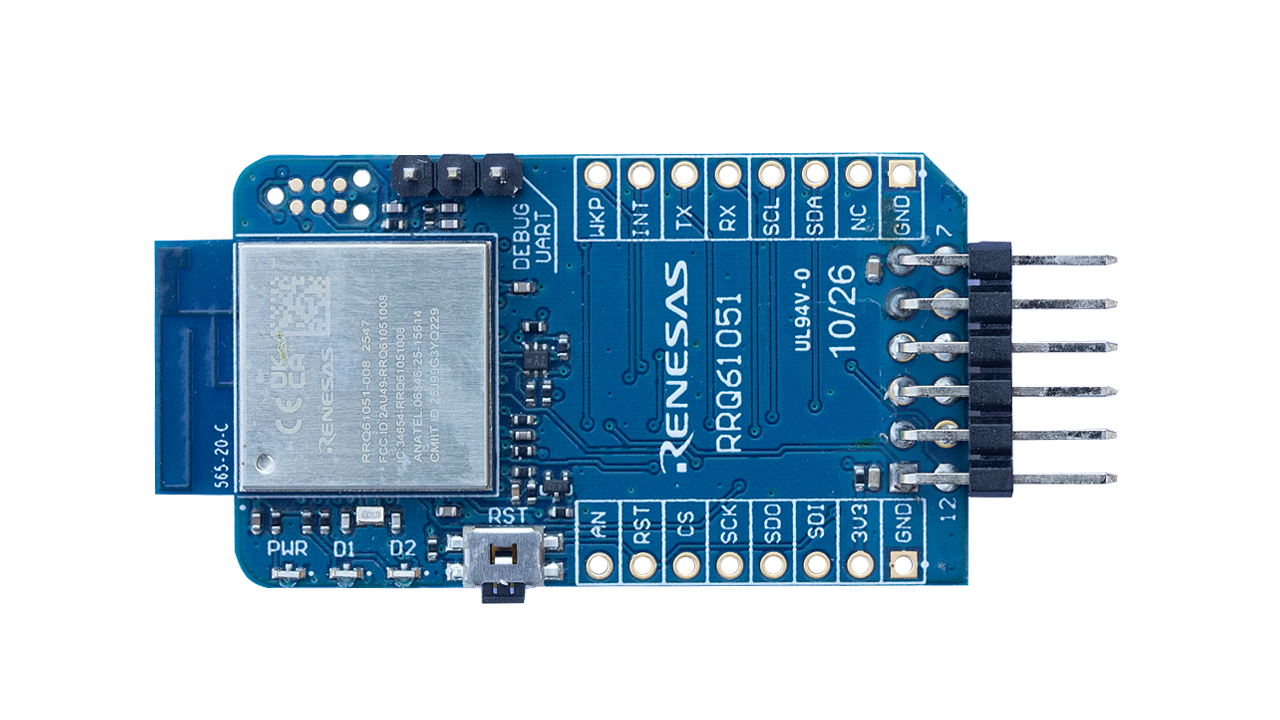

The QCIOT-RRQ61051EVZ is a Wi-Fi® 6 and Bluetooth® Low Energy (LE) combo module board featuring a Pmod™ connector and the possibility to add extended headers, converting this board to a MikroElektronika Click interface-compatible solution. This evaluation board is built on an RRQ61051 module that contains the RA6W1 MCU featuring an Arm® Cortex®-M33 processor. It also includes a dual-band 802.11a/b/g/n/ac/ax Wi-Fi subsystem, on-chip memory, flexible peripheral interfaces, and advanced power management capabilities. The module integrates 8MB and offers a standalone, single-chip solution that supports complex, low-power IoT applications requiring both Wi-Fi and Bluetooth LE connectivity.
Features
- Arm Cortex-M33: 160MHz
- 704KB SRAM
- Wi-Fi 6, 802.11a/b/g/n/ac/ax 2.4/5GHz, 1x1, 20MHz, MCS9 115Mbps, OFDMA, TWT
- Bluetooth LE 5.1
- WPA/WPA2- Enterprise/Personal, WPA2 SI, WPA3 SAE, and OWE
- 8Mbyte QSPI flash
- QSPI PSRAM controller
- 2x SPI, 3x UART, 2x I2C, SDIO 3.0 (Device)
- 12-bit ADC, I2S, PDM, PWM
- True Random Number Generator (TRNG)
- Worldwide certified module
- Encryption: AES, DES/3DES, CHACHA, SHA1/224/256, RSA, DH, ECC
- Operating temperature range -40°C to 85°C
- Pmod and Click interface compatible board
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware |
PDF
2.08 MB
The QCIOT-RRQ61051EVZ evaluation board provides a platform for evaluating and integrating the RRQ61051 Wi‑Fi 6 and Bluetooth Low Energy (LE) combo module, featuring standard interfaces and a proven hardware design to accelerate development and reduce design risk.
|
|
| PCB Design Files | QCIOT-RRQ61051EVZ Design Package
Design files for the QCIOT-RRQ61051EVZ board include the schematic, BOM, PCB layout files, and Gerber data—providing essential resources for evaluation and integration of the RRQ61051 Wi‑Fi 6 and Bluetooth Low Energy combo module.
|
|
| Quick Start Guide | PDF 1.16 MB | |
3 items
|
||
Design & Development
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code | QCIOT-RRQ61051EVZ AT over UART Source Code
Source code example for the RRQ61051 module demonstrating AT command control over a UART interface provides a reference implementation for evaluating communication, configuration, and control of the Wi‑Fi 6 and Bluetooth Low Energy combo module.
|
|
| Sample Code | RA4E2 Family QCIOT-RRQ61051EVZ MQTT Connectivity using FSP DA16xxx MQTT On-chip Client
Source code example for the QCIOT-RRQ61051EVZ used with the EK‑RA4E2 demonstrates MQTT communication using the FSP DA16xxx On‑Chip MQTT Client, providing a reference implementation for evaluating wireless connectivity, cloud communication, and application integration with the RRQ61051 Wi‑Fi 6 and Bluetooth Low Energy combo module.
|
|
