Cloud Kit Based on RA6M5 MCU Group
Jump to Page Section:
Overview
Description

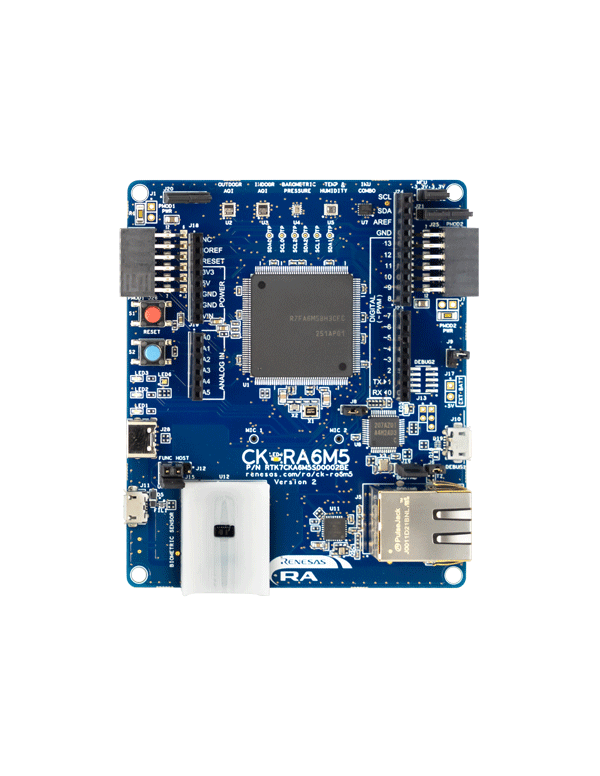

The CK-RA6M5 cloud kit enables users to securely connect to the cloud and explore the features of the Cortex®-M33 based RA6M5 group of MCUs and cloud services. With Renesas’ LTE Cellular CAT-M1 module RYZ014A and ethernet network connectivity options the kit provides a seamless cloud connectivity experience to most of the global cloud service providers. With Renesas Flexible Software Package (FSP) the kit has complete software stack support using FreeRTOS, Azure RTOS and other middleware stacks, thereby making it an ideal platform for efficiently developing cloud solutions and greatly reducing the time-to-market.
Visit Renesas Cloud Solutions for complete cloud solution package.
Kit Contents

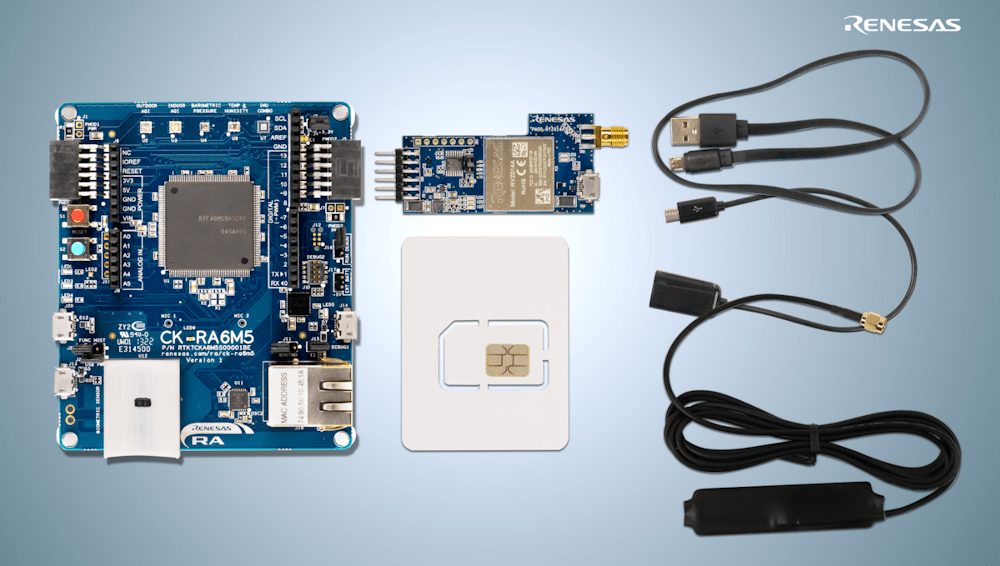

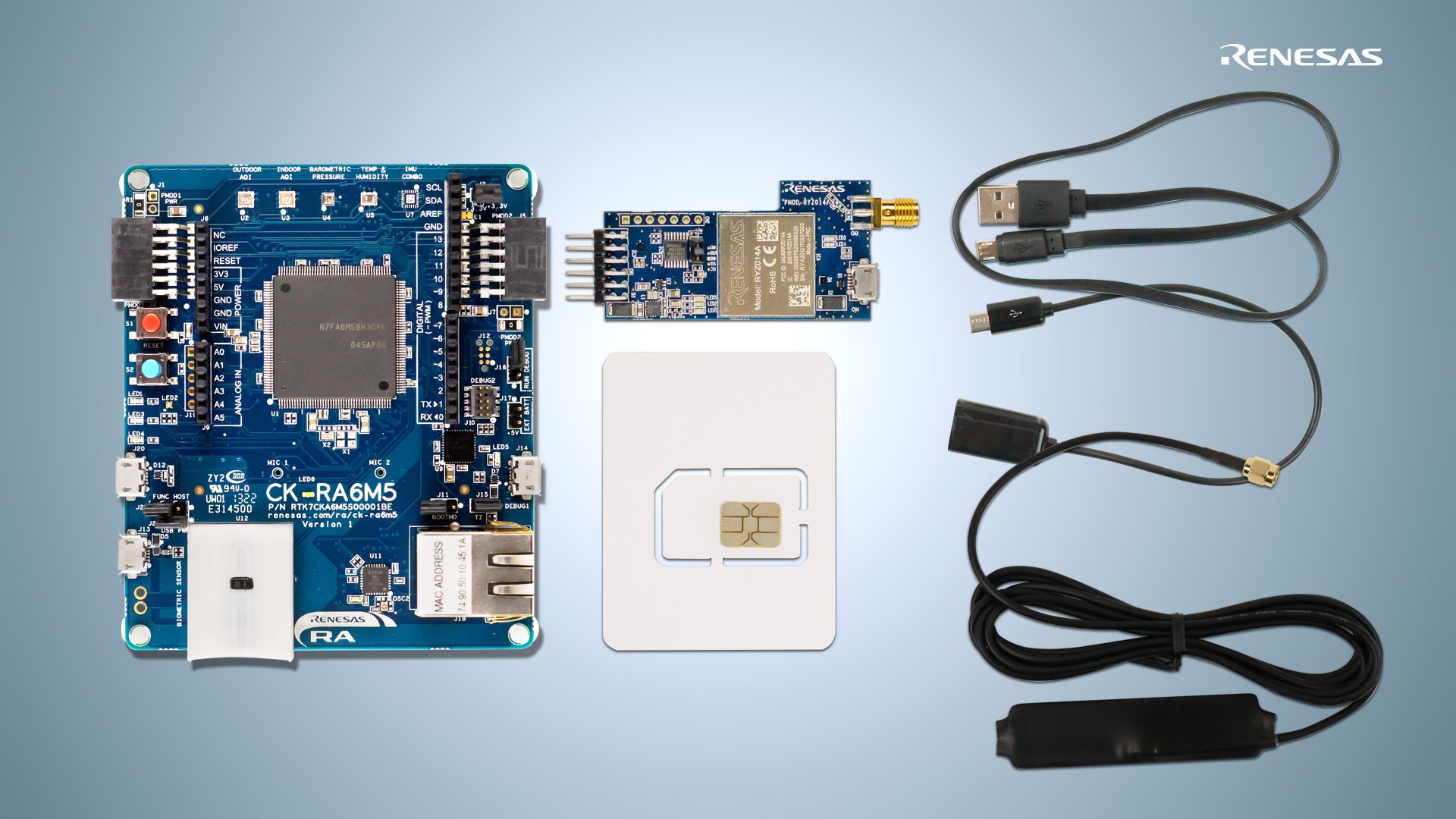

- CK-RA6M5 v1 board

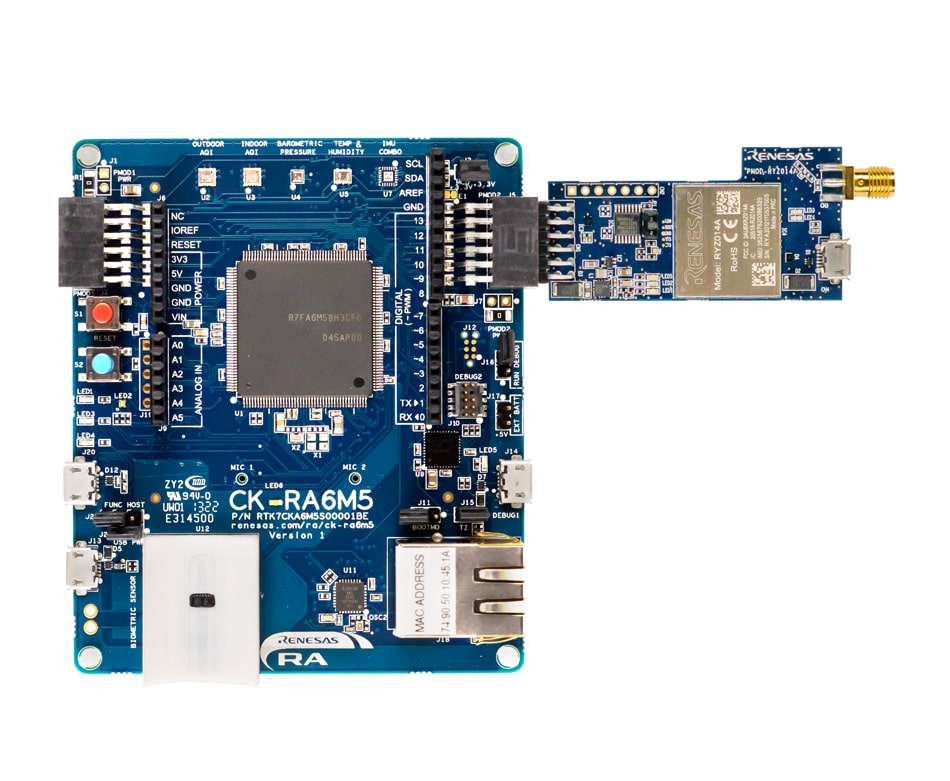

- RYZ014A PMOD (CAT-M1 Cellular Module)
- Micro USB to A cable
- Micro USB A/B to A adapter cable
- SIM card
- Antenna
Features
- Key Features
- LTE CAT-M1 with RYZ014A PMOD
- Ethernet
- USB Full Speed Host and Device
- Sensors:
- Humidity and Temperature
- Indoor Air Quality Index
- Outdoor Air Quality Index
- Heart rate, blood oxygen saturation (SpO2), respiration rate
- Barometric Pressure
- 9 axis Motion Tracking
- 2 MEMS Microphones
- Battery connector for portability
- Arduino™ (Uno R3) connector
- On-board MCU
- RF7A6M5BH3CFC microcontroller
- 200MHz, Arm® Cortex®-M33 core
- 2MB Code Flash, 512KB SRAM
- 176 pins, LQFP package
- Ecosystem
- MCU and Pmod current measurement points
- 5V input through USB or external power supply
- USB-serial converter
- Debug on-board (SEGGER J-Link)
- 4 user LEDS
- One user button
- 2 Digilent Pmod™ (SPI/UART/I2C: Type-6A and Type-2A) connectors
