Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | |
| Pkg. Code: | |
| Lead Count (#): | |
| Pkg. Dimensions (mm): | |
| Pitch (mm): |
Environmental & Export Classifications
| Pb (Lead) Free | |
| Moisture Sensitivity Level (MSL) | |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Protocol | USB 2.0 |
| Function | Controller |
| Process | Soft macro |
| Data Rate (Mbps) | 480, 12 |
| Interface | AMBA®3 AHB-Lite, UTMI+ Level 3 |
| Data Rate RS-485/RS-232 | High-Speed (480Mbps), Full-Speed (12Mbps) |
Resources for UU2PCAHBUTMI
Description

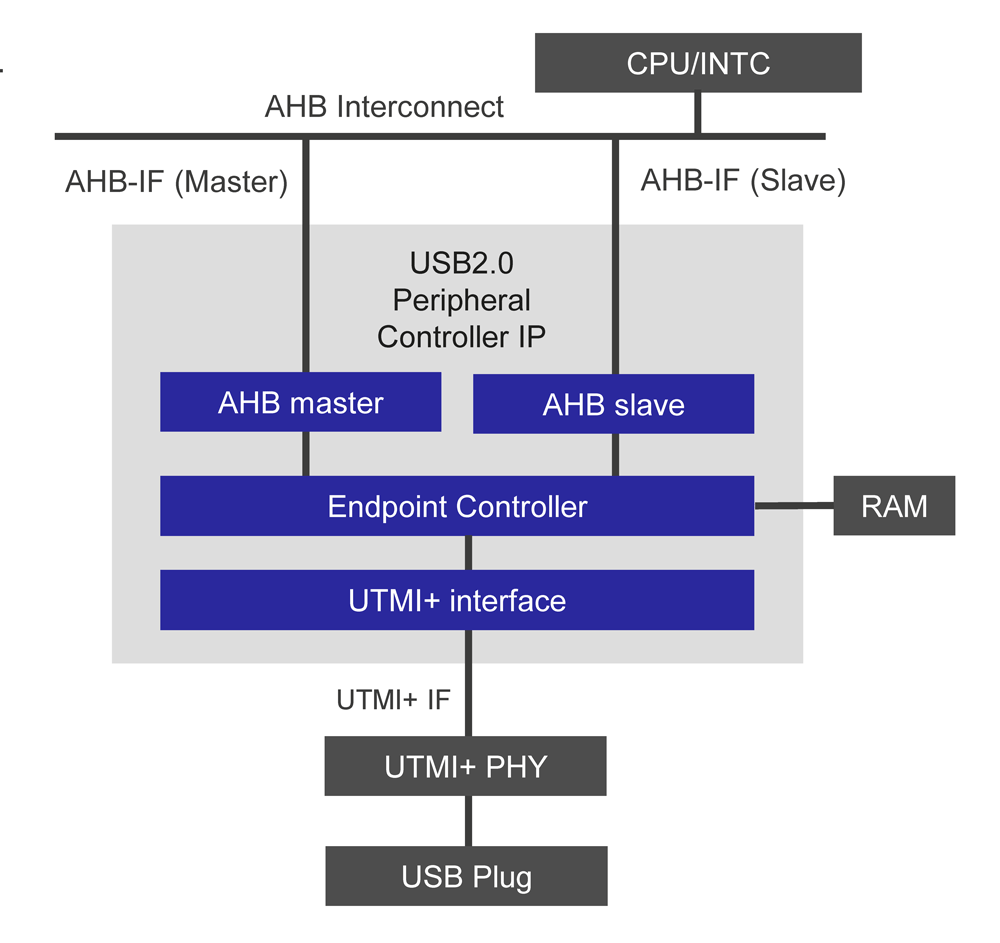

The Renesas USB 2.0 Peripheral Controller IP is compliant with the Universal Serial Bus (USB) 2.0 Specification. This IP is based on the proven R8A66597 USB host/peripheral controller. The system interface of this IP is Advanced Microcontroller Bus Architecture (AMBA®) 3/Advanced High-performance Bus (AHB) Lite (AMBA3 AHB-Lite), and the PHY interface is the USB 2.0 Transceiver Macrocell Interface Plus (UTMI+) Specification Level 3. This IP supports High-Speed (480Mbps) and Full-Speed (12Mbps) transfer.
