Features
- Wide input voltage range: -2.5V to -20V
- Maximum output current: 500mA
- Low dropout voltage: 269mV typical at 500mA
- Low ground current
- Output voltage adjustable: -1.2V to -18V
- Excellent line and load regulation
- Stable with at least 2.2μF MLCC output capacitor
- Short-circuit current limit with foldback
- Over-temperature shutdown protection
- 8Ld DFN (3mm × 3mm) package

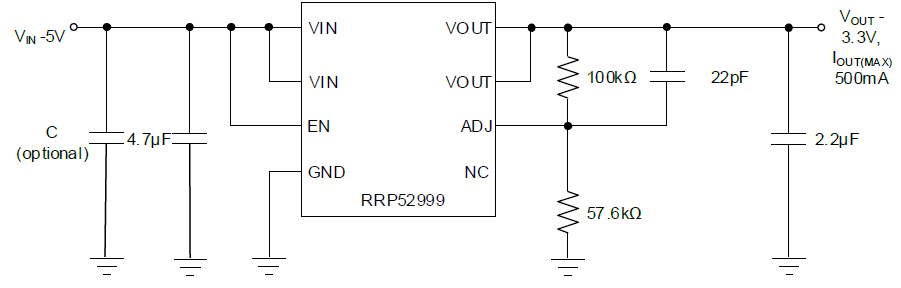

RRP52999 Typical Application Circuit
Description
RRP52999 is a negative low‑dropout (LDO) linear voltage regulator operating from –2.5V to –20V and delivering up to 500mA of output current with a typical dropout voltage of 269mV. Output voltage is adjustable from –1.2V to –18V using external feedback resistors.
Quiescent current measures 98µA under no‑load conditions and typically reduces to 10µA in shutdown mode, supporting low‑power system requirements.
Robust regulation performance is complemented by input undervoltage lockout (UVLO) with hysteresis, an enable control pin, short‑circuit current limiting with foldback, and over‑temperature shutdown protection with hysteresis. It is stable with a minimum 2.2μF MLCC output capacitor and is offered in an 8‑lead 3mm × 3mm DFN package.
Parameters
| Attributes | Value |
|---|---|
| Input Voltage (Min) (V) | -20 |
| Input Voltage (Max) (V) | -2.5 |
| Output Voltage (Min) (V) | -20 |
| Output Voltage (Max) (V) | -2.5 |
| Output Current 1 (Max) (A) | 0.5 |
| Output Current 2 (Max) (A) | 0.5 |
| Drop Out Voltage (Typical) | 269mV |
| Fixed Output Voltage Option | No |
| PSRR (db) | 66 |
| Quiescent Current | 98μA |
| Noise (10Hz to 100kHz) (μVrms) | 230 |
| Qualification Level | Standard |
Package Options
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| DFN | 3.0 x 3.0 x 0.85 | 8 | 0.7 |
Applications
- Supply to Analog-to-Digital Converter (ADC)
- Digital-to-Analog Converter Circuits (DAC)
- Precision Amplifiers Supplies
- Medical and Healthcare Equipment
- Communication and Infrastructure Systems
- Industrial and Instrumentation Equipment
