The world’s lowest power wireless sensor kit is a complete solution for a multi-sensor node letting users develop multiple applications on the same hardware and it supports different use cases through firmware. Offering fifteen degrees of freedom (15-DOF) it manages more sensors than any other kit. Data can be processed locally, transmitted via Bluetooth® Low Energy 5.0 and reported using Amazon’s Alexa voice command technology.

Developed on the basis of TDK InvenSense motion and Bosch Sensortec environmental sensors, the DA14585 IoT Multi-Sensor Development Kit combines Bluetooth wireless communications and an Arm® Cortex®-M0 processor with an accelerometer, gyroscope, magnetometer, and environmental sensors. Altogether that helps reduce development time, enables rapid proof of concept and accelerates time to market for long-lifetime, fully-featured IoT applications.

The DA14585 IoT Multi-Sensor kit also includes SmartFusion™, Renesas' unique software library for data acquisition, calibration and motion vector generation. Ideal for resource-constrained systems, it minimizes memory, processing requirements and power consumption.


  • Faster time-to-market
  • Reduced development effort and resources for cloud-based applications
  • Flexible and modular system setup
  • Ideal for resource-constrained applications
  • Longest battery lifetime sensor-based applications
  • Small form factor end-product

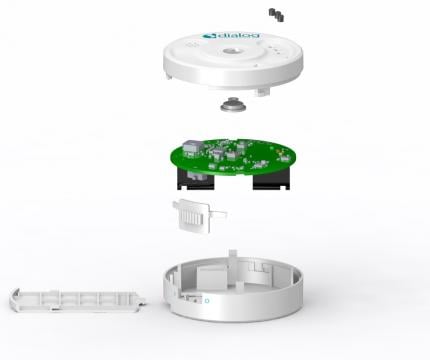

  • Board size: round shape +/- 70mm x 20mm
  • Integrated front-end module supports ranges up to 300 meters
  • 15-DOF wireless sensor module
  • DA14585 low power Bluetooth Low Energy (5.0) SoC
  • ICM42605 6-axis motion tracking sensor
  • AK09915 3-axis geomagnetic field sensor
  • BME680 low power environmental unit (gas, pressure, temperature, and humidity)
  • Proximity and ambient light sensor with IR LED
  • Digital microphone
  • Buzzer



  • Smart tags/beacons
  • Cloud connected wireless sensors
  • Asset tracking
  • Voice controlled sensor reading
  • Voice controlled actuator settings
  • Wearables
  • Immersive gaming
  • Augmented reality
  • 3D indoor mapping/navigation
  • Weather stations


Document title Document type
Date Date
PDF 1.24 MB Manual - Development Tools
PDF 335 KB Application Note
PDF 1.74 MB Application Note
Manual - Development Tools
Manual - Development Tools
PDF 752 KB Manual - Development Tools
PDF 7.36 MB Manual - Development Tools
PDF 3.24 MB Manual - Development Tools
PDF 2.02 MB Manual - Development Tools
PDF 26.34 MB Manual - Software
PDF 235 KB Product Brief
PDF 1.26 MB 简体中文 Product Brief
PDF 273 KB Release Note
PDF 160 KB Release Note
PDF 279 KB Release Note
ZIP 2.39 MB Schematic
PDF 1.98 MB White Paper
17 items

Design & Development

Software & Tools

Software Downloads

Software title Software type
Date Date
ZIP 16.02 MB Software & Tools - Other
ZIP 13.11 MB Software & Tools - Other
ZIP 6.41 MB Software & Tools - Other
ZIP 26.96 MB Software & Tools - Software
ZIP 92 KB Software & Tools - Software
ZIP 566.58 MB Software & Tools - Software
ZIP 38 KB Software & Tools - Software
7 items
DA14585 IoT Multi Sensor Kit

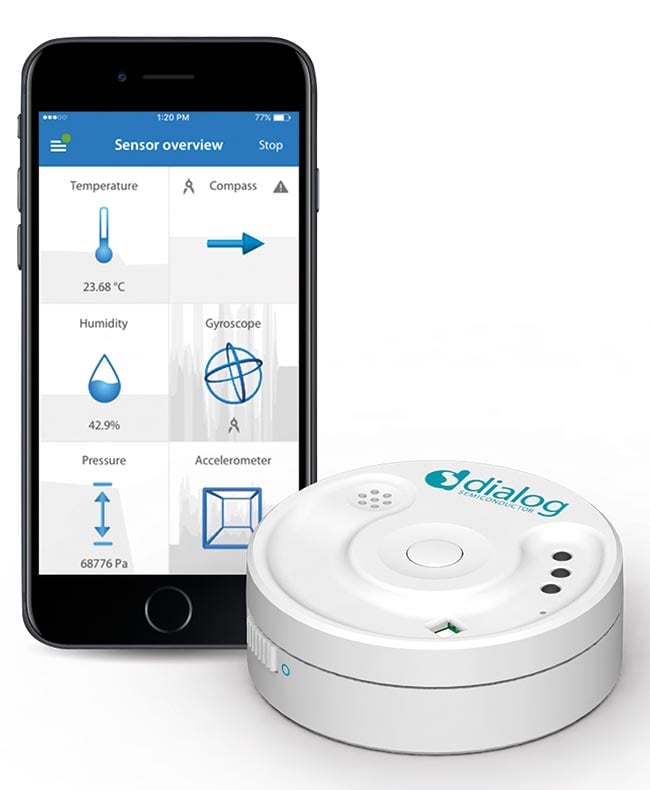

IoT Sensors Mobile Application

Renesas' IoT Sensors Mobile Application will help you to get started with your development.

Download from the Apple App Store
Download from Google Play
