Space & Harsh Environment

Renesas' broad portfolio of radiation hardened MOSFET drivers provide highly reliable performance in space and harsh radiation environments.

Product Selection Table

    Processing table
    Driver Type
    Channels (#)
    Output Type
    Peak Output Current IPK (A)
    Input VCC (Min) (V)
    Input VCC (Max) (V)
    Bus Voltage (Max) (V)
    Rise Time (Max)
    Fall Time
    High Dose Rate (HDR) (krad (Si))
    Low Dose Rate (LDR) (krad (Si))
    DSEE (SEL, SEB, etc.) (MeV*cm2/mg)
    Lead Count (#)
    Pkg. Type
    Temp. Range
    DLA SMD
    SMD URL
    Qualification Level
    Models Available
    Part Number

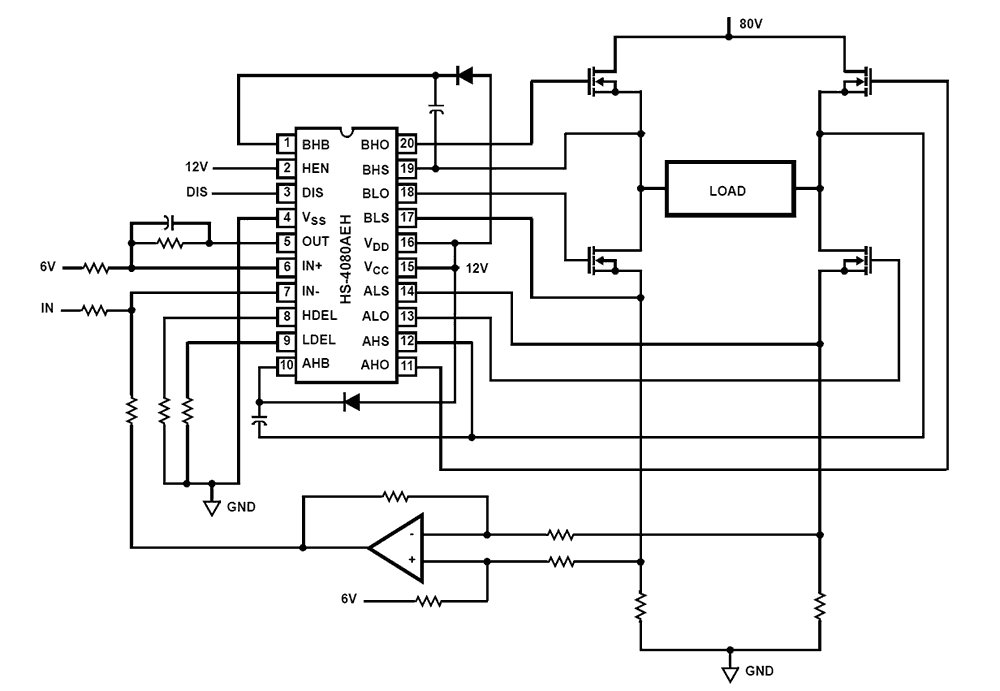

    HS-4080AEH
    Radiation Hardened Full Bridge N-Channel FET Driver    		 Full Bridge Synchronous 2.5 12 15 80 65 60 300 50 , SEL free 20 CFP -55 to 125°C 5962F9961702V9A, 5962F9961702VXC 5962-99617 PROTO, QML Class V (Space)
    HS-4423BEH
    Radiation Hardened Dual, Inverting Power MOSFET Drivers    		 Low Side 2 Inverting 2 12 18 75 75 300 50 , SEL free 16 CFP -55 to 125°C 5962F9951104V9A, 5962F9951104VXC 5962-99511 QML Class V (Space)
    HS-4423BRH
    Radiation Hardened, Dual, Inverting Power MOSFET Driver    		 Low Side 2 Inverting 2 12 18 75 75 300 , SEL free 16 CFP -55 to 125°C 5962F9951102QXC, 5962F9951102VXC 5962-99511 PROTO, QML Class Q (Military), QML Class V (Space)
    HS-4423EH
    Radiation Hardened Dual, Inverting Power MOSFET Driver    		 Low Side 2 Inverting 2 12 18 75 75 300 50 , SEL free 16 CFP -55 to 125°C 5962F9951103V9A, 5962F9951103VXC 5962-99511 QML Class V (Space)
    HS-4423RH
    Radiation Hardened, Dual, Inverting Power MOSFET Driver    		 Low Side 2 Inverting 2 12 18 75 75 300 , SEL free 16 CFP, DIE -55 to 125°C 5962F9951101QXC, 5962F9951101V9A, 5962F9951101VXC 5962-99511 PROTO, QML Class Q (Military), QML Class V (Space)
    HS-4424BEH
    Radiation Hardened Dual, Non-Inverting Power MOSFET Drivers    		 Low Side 2 Non-inverting 2 12 18 75 75 300 50 , SEL free 16 CFP -55 to 125°C 5962F9956004V9A, 5962F9956004VXC 5962-99560 QML Class V (Space)
    HS-4424BRH
    Radiation Hardened Dual, Non-Inverting Power MOSFET Drivers    		 Low Side 2 Non-inverting 2 12 18 75 75 300 , SEL free 16 CFP, DIE -55 to 125°C 5962F9956002QXC, 5962F9956002V9A, 5962F9956002VXC 5962-99560 QML Class Q (Military), QML Class V (Space)
    HS-4424DEH
    Dual, Noninverting Power MOSFET Radiation Hardened Drivers    		 Low Side 2 Non-inverting 2 8 18 75 75 300 50 , SEL free 16 CFP -55 to 125°C 5962F9956006V9A, 5962F9956006VXC 5962-99560 QML Class V (Space)
    HS-4424DRH
    Dual, Noninverting Power MOSFET Radiation Hardened Drivers    		 Low Side 2 Non-inverting 2 8 18 75 75 300 , SEL free 16 CFP, DIE -55 to 125°C 5962F9956005V9A, 5962F9956005VXC 5962-99560 QML Class V (Space)
    HS-4424EH
    Radiation Hardened Dual, Non-Inverting Power MOSFET Drivers    		 Low Side 2 Non-inverting 2 12 18 75 75 300 50 , SEL free 16 CFP -55 to 125°C 5962F9956003V9A, 5962F9956003VXC 5962-99560 QML Class V (Space)
    HS-4424RH
    Radiation Hardened Dual, Non-Inverting Power MOSFET Drivers    		 Low Side 2 Non-inverting 2 12 18 75 75 300 , SEL free 16 CFP, DIE -55 to 125°C 5962F9956001QXC, 5962F9956001V9A, 5962F9956001VXC, 5962R9956002TXC 5962-99560
    QML Class Q (Military), QML Class T (Space Lower Level) and more...
    IS-1715AEH
    Radiation Hardened Complementary Switch FET Driver    		 Low Side 2 Complementary 3 10 18 50 50 300 50 , SEL free 16 CFP -55 to 125°C 5962F0052103V9A, 5962F0052103VXC 5962-00521 QML Class V (Space)
    IS-1715ARH
    Complementary Switch MOSFET Driver    		 Low Side 2 Complementary 3 10 18 50 50 300 , SEL free 16 CFP, PDS -55 to 125°C 5962F0052101QXC, 5962F0052101V9A, 5962F0052101VXC 5962-00521 PROTO, QML Class Q (Military), QML Class V (Space)
    IS-2100AEH
    Radiation Hardened High Frequency Half Bridge Drivers    		 Half Bridge 1 Synchronous 1.5 12 20 130 60 60 300 50 , SEL free 16 CFP, DIE -55 to 125°C 5962F9953603V9A, 5962F9953603VXC 5962-99536 QML Class V (Space)
    IS-2100ARH
    Radiation Hardened High Frequency Half Bridge Drivers    		 Half Bridge 1 Synchronous 1.5 12 20 130 60 60 300 , SEL free 16 CFP -55 to 125°C 5962F9953602QXC, 5962F9953602V9A, 5962F9953602VXC 5962-99536 PROTO, QML Class Q (Military), QML Class V (Space)
    ISL74422ARH
    Radiation Hardened 9A, Non-Inverting Power MOSFET Drivers    		 Low Side 1 Non-inverting 9 7 18 105 90 300 , SEL free 16 CFP -55 to 125°C 5962F0152101QXC, 5962F0152101V9A, 5962F0152101VXC 5962-01521 PROTO, QML Class Q (Military), QML Class V (Space)
    ISL74422BRH
    9A, Non-Inverting Power MOSFET Drivers    		 Low Side 1 Non-inverting 9 8 18 135 135 , - 16 CFP, DIE -55 to 125°C 5962F0324801QXC, 5962F0324801V9A, 5962F0324801VXC
    PROTO, QML Class Q (Military) and more...
    ISL7457SRH
    Radiation Hardened, SEE Hardened, Non-Inverting, Quad CMOS Driver    		 Low Side 4 Non-inverting 2 4.5 16.5 20 20 10 40 16 CFP, DIE -55 to 125°C 5962D0823001QXC, 5962D0823001VXC 5962-08230 PROTO, QML Class Q (Military), QML Class V (Space) PSPICE
