Overview

The RX23E-A group microcontrollers are equipped with an analog front-end that can measure temperature, pressure, flow, and weight with less than 0.1% precision without calibration, making it ideal for high-precision sensing, test and measurement equipment. The CPU is equipped with an RXv2 core that excels in DSP/FPU operations, enabling high-accuracy measurement, control and communication with a single chip.

Pin-Memory Diagram of RX23E-A stanndard products

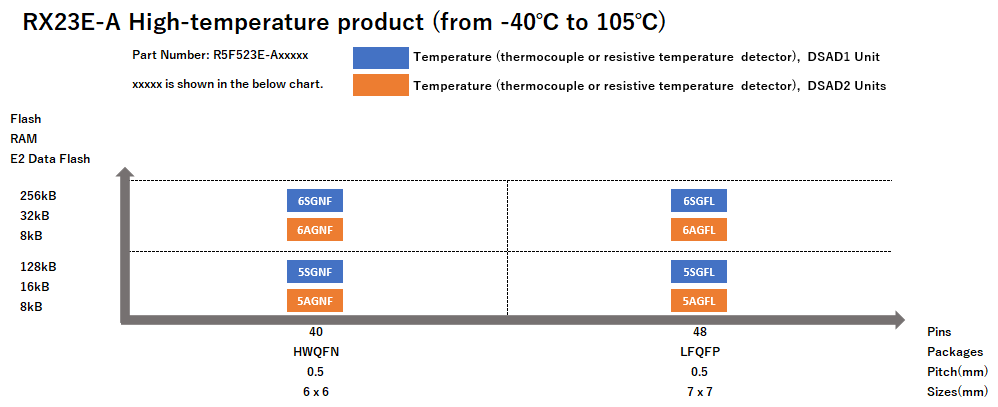

Pin-Memory Diagram of RX23E-A High-temperature products

Analog Front End Features

24-bit delta-sigma A/D converters: Up to 23-bit effective resolution, programmable data rate 7.6sps to 15.6ksps
- Dual 24-bit delta-sigma A/D converters (R5F523ExAxxx)
- Single 24-bit delta sigma A/D converter (R5F523ExSxxx)
PGA: Rail-to-rail analog input, Gain 1 to 128, offset drift 10 nV/°C, gain drift 1 ppm/°C
Voltage reference: low drift 10ppm/°C with good temperature stability
Excitation current source: Matched programmable current source

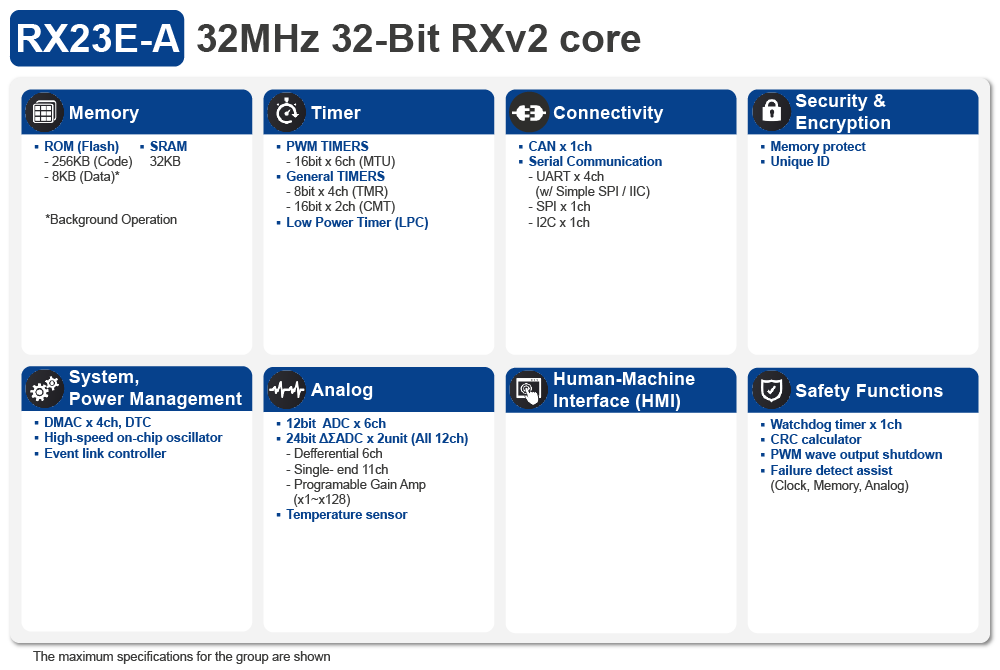

MCU Features

CPU: 32-bit RXv2 (32MHz), DSP/FPU for digital signal processing
Interface: SPI x 1ch, UART x 4ch, I²C x 1 ch, CAN x 1ch

	Precision Industrial Temperature Control
	Industrial Sensor Network Solution
	Isolated Multi-Channel Sensing Solution
	Peltier Cooler
	Industrial Ethernet and Fieldbus
	IO-Link Device Solutions
	Precision Weight Scale (Scale-IT)
	Wireless Multi-Channel Isolated Data Logger
	Force Sensor Solution
	Torque Control Solution

Documentation
