32-bit Microcontrollers with 120MHz Optimized Entry Point to the RA6 Series
Jump to Page Section:
Overview
Description
The Renesas RA6M1 microcontroller is the entry point to the Renesas RA6 product series for applications that require a high-performance Arm® Cortex®-M4 core at a very attractive price point. The RA6M1 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP), built on FreeRTOS—and is expandable to use other RTOSes and middleware. The RA6M1 is suitable for IoT applications requiring security, large embedded RAM and low power consumption.

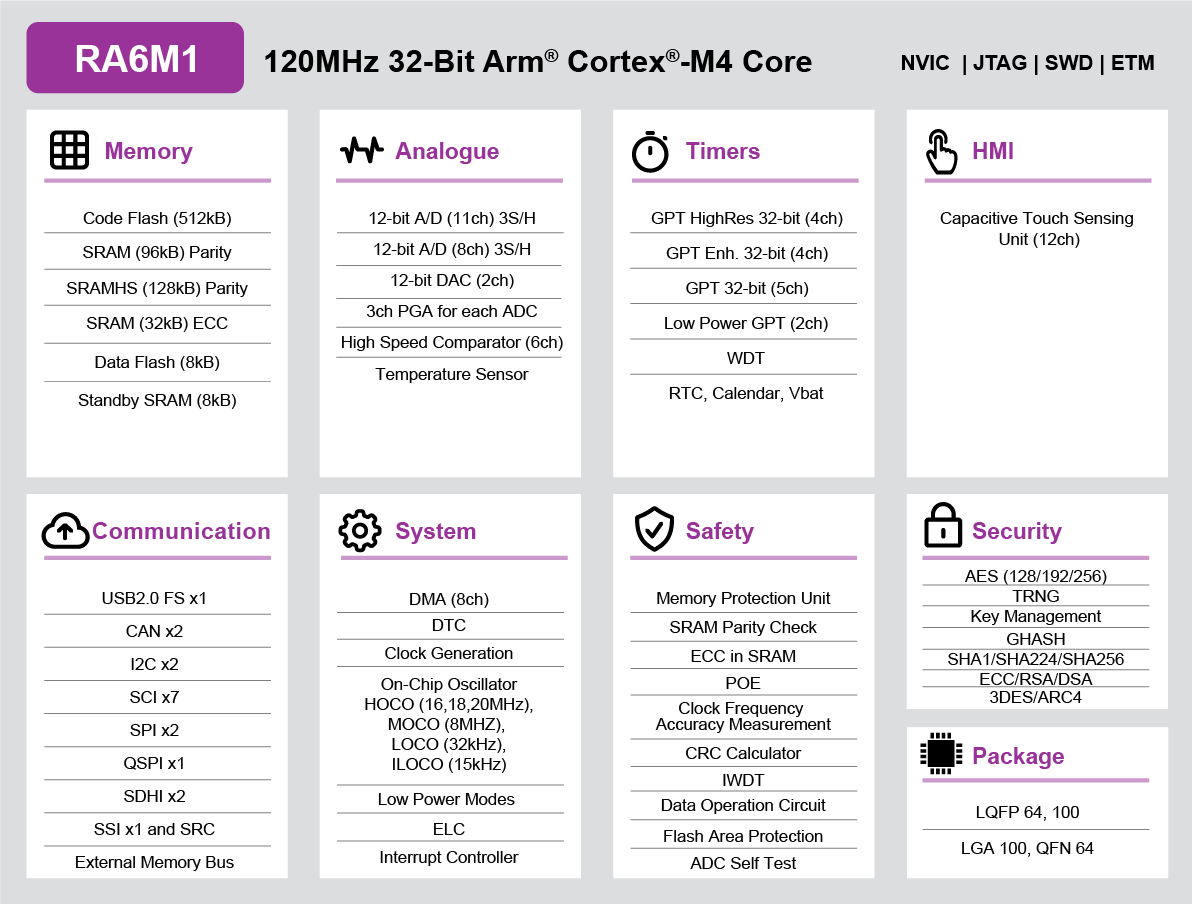

Features
- 120MHz Arm® Cortex®-M4
- 512kB Flash memory and 256kB SRAM
- 8kB Data Flash to store data as in EEPROM
- Scalable from 64-pin to 100-pin packages
- Capacitive touch sensing unit
- USB 2.0 Full Speed
- CAN 2.0B
- SCI (UART, Simple SPI, Simple I2C)
- SPI/ I2C multimaster interface
- SDHI
- SSI/Serial sound interface
Applications
Applications
- Security (fire detection, burglar detection, panel control)
- Metering (electricity, automated meter reading)
- Industry (robotics, door openers, sewing machines, vending machines, UPS)
- HVAC (heating, air conditioning, boiler control)
- General purpose
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.16 MB 日本語 | Datasheet | ||
| PDF 21.54 MB 日本語 | Manual - Hardware | ||
| PDF 213 KB | Application Note | ||
| PDF 1.94 MB 日本語 | Application Note | ||
| PDF 3.64 MB 日本語 | Application Note | ||
| PDF 188 KB | Application Note | ||
| PDF 2.07 MB | Application Note | ||
| PDF 1.58 MB 日本語 | Application Note | ||
| PDF 3.75 MB 简体中文 | Application Note | ||
| PDF 1.96 MB 简体中文 | Application Note | ||
| PDF 2.33 MB 日本語 | Application Note | ||
| PDF 2.61 MB | Application Note | ||
| PDF 67 KB | Application Note | ||
| PDF 2.02 MB | Application Note | ||
| PDF 1.12 MB | Application Note | ||
| PDF 3.50 MB | Application Note | ||
| PDF 658 KB | Application Note | ||
| PDF 183 KB | Application Note | ||
| PDF 8.01 MB 日本語 , 简体中文 | Application Note | ||
| PDF 1.74 MB | Application Note | ||
| PDF 2.02 MB | Application Note | ||
| PDF 2.23 MB 日本語 | Application Note | ||
| PDF 1.82 MB | Application Note | ||
| PDF 421 KB 日本語 | Application Note | ||
| PDF 670 KB | Application Note | ||
| PDF 4.37 MB 日本語 | Application Note | ||
| PDF 57 KB | Application Note | ||
| PDF 747 KB | Application Note | ||
| PDF 293 KB | Application Note | ||
| PDF 1.76 MB 日本語 | Application Note | ||
| PDF 1.73 MB 日本語 | Application Note | ||
| PDF 891 KB | Application Note | ||
| PDF 1.78 MB | Application Note | ||
| PDF 645 KB | Application Note | ||
| PDF 88 KB | Application Note | ||
| PDF 864 KB 日本語 | Application Note | ||
| PDF 6.79 MB 日本語 | Brochure | ||
| PDF 19.79 MB 日本語 | Brochure | ||
| PDF 5.28 MB 日本語 , 简体中文 | Brochure | ||
| PDF 7.93 MB 日本語 , 简体中文 | Brochure | ||
| PDF 2.17 MB 日本語 | End Of Life Notice | ||
| PDF 303 KB 日本語 , 简体中文 | Flyer | ||
| PDF 417 KB 日本語 , 简体中文 | Flyer | ||
| PDF 327 KB 日本語 | Flyer | ||
| PDF 618 KB 日本語 | Flyer | ||
| PDF 14.70 MB 日本語 | General Reliability Literature | ||
| PDF 652 KB | Guide | ||
| PDF 10.28 MB 日本語 , 简体中文 | Other | ||
| PPSX 38.29 MB | Presentation | ||
| PDF 171 KB 日本語 | Product Change Notice | ||
| PDF 4.86 MB 日本語 | Product Change Notice | ||
| PDF 3.74 MB 日本語 | Product Change Notice | ||
| PDF 1.46 MB 日本語 | Product Change Notice | ||
| PDF 428 KB | Product Reliability Report | ||
| PDF 324 KB 日本語 | Release Note | ||
| ZIP 35.02 MB 日本語 | Schematic | ||
| PDF 169 KB 日本語 | Technical Update | ||
| PDF 169 KB 日本語 | Technical Update | ||
| PDF 516 KB 日本語 | Technical Update | ||
| PDF 228 KB 日本語 | Technical Update | ||
| PDF 112 KB 日本語 | Technical Update | ||
| PDF 195 KB 日本語 | Technical Update | ||
| PDF 159 KB 日本語 | Technical Update | ||
| PDF 106 KB 日本語 | Technical Update | ||
| PDF 497 KB 日本語 | Technical Update | ||
| PDF 700 KB 日本語 | Technical Update | ||
| PDF 152 KB 日本語 | Technical Update | ||
| PDF 226 KB 日本語 | Technical Update | ||
| PDF 113 KB 日本語 | Technical Update | ||
| PDF 217 KB 日本語 | Technical Update | ||
| PDF 139 KB 日本語 | Technical Update | ||
| PDF 110 KB 日本語 | Technical Update | ||
| PDF 150 KB | Technical Update | ||
| PDF 150 KB 日本語 | Technical Update | ||
| PDF 289 KB | White Paper | ||
| PDF 628 KB | White Paper | ||
| PDF 196 KB 日本語 , 简体中文 | White Paper | ||
| PDF 178 KB 日本語 , 简体中文 | White Paper | ||
| PDF 169 KB 日本語 , 简体中文 | White Paper | ||
| PDF 1.38 MB 日本語 | White Paper | ||
|
80 items
|
|||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | Renesas |
| Flexible Software Package (FSP) FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required.
|
Software Package | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX]
|
Emulator | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX]
|
Emulator | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0]
|
Programmer (Unit/SW) | Renesas |
| RA Smart Configurator The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
|
Solution Toolkit | Renesas |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | Renesas |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | Renesas |
| e² studio - information for RA Family Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
|
IDE and Coding Tool | Renesas |
|
10 items
|
||
Sample Code
Sample Code
Filters
|
|||
|---|---|---|---|
| Title | Type | Date Date | |
|
[Software=RA FSP | v4.5.0],[Board=EK-RA6M1]
ZIP
12.89 MB
IDE:
e2 studio/GCC/AC6, IAR, Keil MDK
|
Sample Code | ||
|
[Software=RA Flexible Software Package|v4.3.0],[Toolchains=GNU Arm Embedded|10.3-2021.10]]
ZIP
5.03 MB
日本語
Application:
Consumer Electronics, Key Technology
Compiler:
GNU ARM Embedded
Function:
Application Example, HMI
IDE:
e2 studio
|
Sample Code | ||
|
The application example provided in this package uses the Secure Crypto Engine (SCE) module based on RA6M3 to generate a device identity unique to each device which is securely stored in the internal flash using the Security Memory Protection Unit (MPU) and the Flash Access Window (FAW) hardware features of the MCU.
ZIP
12.62 MB
Compiler:
ARMCC
IDE:
e2 studio
|
Sample Code | ||
| ZIP 7.36 MB | Sample Code | ||
|
MCUboot is a secure bootloader for 32-bit MCUs. It defines a common infrastructure for the bootloader, defines system flash layout on microcontroller systems, and provides a secure bootloader that enables easy software update.
[Toolchains=GCC Arm Embedded|9.3.1.20200408] [Software=RA FSP|v4.2.0] [Board=EK-RA6M3;EK-RA6M4]
ZIP
29.00 MB
Compiler:
GNU Arm Embedded
IDE:
e2 studio
|
Sample Code | ||
| ZIP 13.95 MB | Sample Code | ||
|
This application project discusses the considerations for securing Data at Rest in an embedded system and provides guidelines on how to use the Security MPU hardware feature of the RA Family MCUs to implement a secure Data at Rest solution.
ZIP
3.45 MB
Compiler:
ARMCC
IDE:
e2 studio
|
Sample Code | ||
|
The application example provided in the package uses AWS IoT Core. The detailed steps in this
document show first-time AWS IoT Core users how to configure the AWS IoT Core platform to run this
application example.
ZIP
4.89 MB
IDE:
e2 studio
|
Sample Code | ||
| ZIP 5.06 MB 日本語 Compiler: GNU ARM Embedded, ICCARM Function: Security IDE: e2 studio, IAR EWARM | Sample Code | ||
|
[Toolchains=GCC Arm Embedded|9.2.1.20191025] [Software=RA FSP|v1.1.0]
ZIP
8.83 MB
日本語
Compiler:
GNU Arm Embedded, IAR Compiler for Arm
Function:
Security
IDE:
e2 studio, IAR EWARM
|
Sample Code | ||
|
The driver for the new module is developed while referencing the existing Wi-Fi driver provided by FSP as a starting point.
ZIP
929 KB
IDE:
e2 studio
|
Sample Code | ||
| ZIP 2.30 MB | Sample Code | ||
12 items
|
|||
Boards & Kits
Boards & Kits
Evaluation Kit for RA6M1 MCU Group
The EK-RA6M1 evaluation kit enables users to effortlessly evaluate the features of the RA6M1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
RA6M1 Voice Recognition Demo Board
The RTK0EA0004D00001BJ is a demo board for a voice recognition remote control using RA6M1.
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
PLP |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
RTC |
LVD |
DMA |
I/O Ports |
Timer |
ADC |
DAC |
CAN Interface |
Ethernet |
USB |
Human Machine Interface |
Security & Encryption |
CPU |
Bit Size |
Temp. Range |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ||||||||||||||||||||||||
| N/A | 512 | 8 | 256 | 100 | LGA | 2.7 - 3.6 | 120 | Yes | Yes | DMAC x 8ch, DTC | 76 | 32-bit x 13-ch | 12-bit x 19-ch | 12-bit x 2-ch | CAN x 2ch | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | Capacitive Sensing Unit 12ch | 3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH, Key Management, MD5, RSA, SHA-224, SHA-256, TRNG | ARM CM4 | 32 | -40 to 105°C | Get Samples, | |
| 2033 Oct | 512 | 8 | 256 | 64 | LQFP | 2.7 - 3.6 | 120 | Yes | Yes | DMAC x 8ch, DTC | 40 | 32-bit x 11-ch | 12-bit x 10-ch | 12-bit x 2-ch | CAN x 2ch | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | Capacitive Sensing Unit 12ch | 3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH, Key Management, MD5, RSA, SHA-224, SHA-256, TRNG | ARM CM4 | 32 | -40 to 105°C | Get Samples, | |
| 2033 Oct | 512 | 8 | 256 | 100 | LQFP | 2.7 - 3.6 | 120 | Yes | Yes | DMAC x 8ch, DTC | 76 | 32-bit x 13-ch | 12-bit x 19-ch | 12-bit x 2-ch | CAN x 2ch | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | Capacitive Sensing Unit 12ch | 3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH, Key Management, MD5, RSA, SHA-224, SHA-256, TRNG | ARM CM4 | 32 | -40 to 105°C | Get Samples, | |
| N/A | 512 | 8 | 256 | 100 | LGA | 2.7 - 3.6 | 120 | Yes | Yes | DMAC x 8ch, DTC | 76 | 32-bit x 13-ch | 12-bit x 19-ch | 12-bit x 2 ch | CAN x 2ch | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | Capacitive Sensing Unit 12ch | 3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH, Key Management, MD5, RSA, SHA-224, SHA-256, TRNG | ARM CM4 | 32 | -40 to 105°C | Get Samples, | |
| N/A | 512 | 8 | 256 | 64 | QFN | 2.7 - 3.6 | 120 | Yes | Yes | DMAC x 8ch, DTC | 40 | 32-bit x 11-ch | 12-bit x 10-ch | 12-bit x 2 ch | CAN x 2ch | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | Capacitive Sensing Unit 12ch | 3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH, Key Management, MD5, RSA, SHA-224, SHA-256, TRNG | ARM CM4 | 32 | -40 to 105°C | ||
| N/A | 512 | 8 | 256 | 64 | LQFP | 2.7 - 3.6 | 120 | Yes | Yes | DMAC x 8ch, DTC | 40 | 32-bit x 11-ch | 12-bit x 10-ch | 12-bit x 2-ch | CAN x 2ch | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | Capacitive Sensing Unit 12ch | 3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH, Key Management, MD5, RSA, SHA-224, SHA-256, TRNG | ARM CM4 | 32 | -40 to 105°C | ||
| N/A | 512 | 8 | 256 | 100 | LQFP | 2.7 - 3.6 | 120 | Yes | Yes | DMAC x 8ch, DTC | 76 | 32-bit x 13-ch | 12-bit x 19-ch | 12-bit x 2-ch | CAN x 2ch | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | Capacitive Sensing Unit 12ch | 3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH, Key Management, MD5, RSA, SHA-224, SHA-256, TRNG | ARM CM4 | 32 | -40 to 105°C | ||
| N/A | 512 | 8 | 256 | 64 | QFN | 2.7 - 3.6 | 120 | Yes | Yes | DMAC x 8ch, DTC | 40 | 32-bit x 11-ch | 12-bit x 10-ch | 12-bit x 2 ch | CAN x 2ch | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | Capacitive Sensing Unit 12ch | 3DES, 128-bit Unique ID, AES, ARC4, DSA, ECC, GHASH, Key Management, MD5, RSA, SHA-224, SHA-256, TRNG | ARM CM4 | 32 | -40 to 105°C |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Companion Products
play_circle_filledVideos & Training
Introducing the Renesas RA Family of 32-Bit Microcontrollers
The Renesas RA Family of 32-bit MCUs is designed to help device developers create the next generation of secure IoT devices. They are low power, have a wide variety of peripherals and connectivity options, and sport the latest HMI to help end customers have an immersive experience.
Video List
News & Blog Posts
Pin Count / Memory Size
| Flash: 512kB RAM: 256kB |
● | ● | ● | ● |
|---|---|---|---|---|
| Pin Count Package Size Pitch |
64-pin LQFP 10x10mm 0.5mm |
64-pin QFN 8x8mm 0.4mm |
100-pin LQFP 14x14mm 0.5mm |
100-pin LGA 7x7mm 0.5mm |
