Interface

Overview

The PROFINET IO Device Chip TPS-1 reduces the time and cost efforts for implementing to a minimum and provides device manufacturers with a fast, easy and cost-saving integration of a PROFINET IO device interface.

Renesas Electronics, a leading provider of ultra-modern semiconductor solutions, and Phoenix Contact enter into a strategic partnership. Both companies work together in marketing and distributing the PROFINET IO Device Chip TPS-1 developed both by Phoenix Contact and Siemens. The TPS-1 Chip will be available together with the ERTEC 200/400 PROFINET controllers developed by Siemens through worldwide sales channels of Renesas Electronics.

Within the scope of the planned collaboration, Renesas Electronics builds worldwide distribution and customer support for the PROFINET Device Chip TPS-1 via its distribution network. Phoenix Contact will be responsible for the maintenance and further development of the software components associated with the TPS-1 PROFINET Chip and provide support in answering system-related questions regarding PROFINET and the realization of special customer-specific solutions.

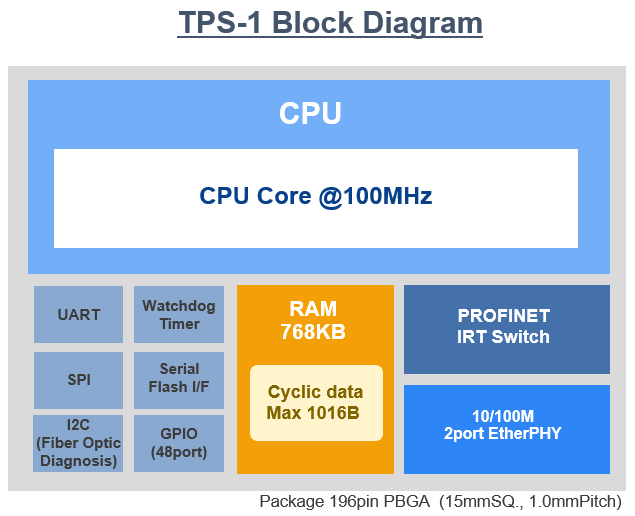

TPS-1 Block Diagram
TPS-1 Block Diagram
  • PROFINET stack, CPU, RAM and PHYs integrated
  • Internal 3-Port IRT Switch with 8 priority levels
  • Parallel and serial host interface
  • PROFINET version 2.3 for RT and IRT
  • BGA housing 15 x 15 mm² with 1 mm pitch for inexpensive PCBs
  • Approx. 800 mW power dissipation
  • Required area: 260 mm² for the complete interface (RJ45)
Industrial Ethernet and Fieldbus

Applications

  • Factory automation equipment
    • Remote I/O
    • Communication module

Documentation

Title
Type 		Date
TPS-1 Datasheet Rev.1.07
PDF 922 KB 		Datasheet
TPS-1 User's Manual: Hardware Rev.1.10
PDF 2.82 MB 		Manual - Hardware
Renesas R-IN32M3, RZ/T1, and TPS-1 Group PROFINET PLC Connection Guide Rev.1.01
PDF 1.86 MB 日本語 		Application Note
PROFINET Device Design Guideline for TPS-1 (R19AN0035ED0301) Rev.3.01
PDF 3.62 MB 		Application Note
Renesas R-IN, RZ/T1, EC-1, TPS-1 Groups Software PLC Guide: Configuring Projects and Creating User Interfaces Rev.1.00
PDF 696 KB 日本語 		Application Note
Renesas R-IN, RZ/T1, TPS-1 Groups Software PLC Guide: PROFINET I/O Rev.1.00
PDF 455 KB 日本語
Related Files:
Application Note
TPS-1 Solution Board Startup Manual Rev.1.00
PDF 2.96 MB 日本語
Related Files:
Application Note
Industrial Networks Brochure
PDF 7.35 MB 日本語 		Brochure
Industrial Automation Brochure
PDF 7.93 MB 日本語 , 简体中文 		Brochure
Low-cost Solution Kit for TPS-1 – The PROFINET IRT Device Chip (R12PF0011ED0100) Rev.1.00
PDF 941 KB 		Datasheet
TPS-1 Low-cost Solution Kit - Getting Started with RX231 Rev.1.04
PDF 2.24 MB 		Manual - Development Tools
TPS-1 Low-cost Solution Kit - Getting Started with RX630 Rev.1.04
PDF 2.31 MB 		Manual - Development Tools
TPS-1 Low-cost Solution Kit - Getting Started with RX66T Rev.1.01
PDF 2.17 MB 		Manual - Development Tools
TPS-1 Low-cost Solution Kit - Getting Started with Synergy S7G2 Rev.1.04
PDF 2.50 MB 		Manual - Development Tools
TPS-1 Low-cost Solution Kit - Hardware Manual Rev.1.02
PDF 624 KB 		Manual - Development Tools
TPS-1 Low-cost Solution Kit - Getting Started in Parallel IO-Mode Rev.1.03
PDF 1.65 MB 		Manual - Hardware
16 items

Design & Development

Sample Code
Title
Type Date
Renesas R-IN, RZ/T1, TPS-1 Groups Software PLC Guide: PROFINET I/O Rev.1.00 - Sample Code
ZIP 3.02 MB 日本語
Related Files:
Sample Code
TPS-1 Solution Board Startup Manual Rev.1.00 - Sample Code
ZIP 5.36 MB 日本語
Related Files:
Sample Code
2 items

Boards & Kits

TPS-1 Low-cost Solution Kit Adapter Board

TPS-1-Low-Cost-Solution-Kit

Evaluation
Order Now

Best-in-class PROFINET IRT solution with lowest possible implementation effort.

The new TPS-1 low-cost Solution Kit allows a simple and efficient PROFINET IRT device design using the market-proven TPS-1 PROFINET IRT device chip that combines easy...

Featured Documents:
TPS-1 Low-cost Solution Kit - Hardware Manual Rev.1.02

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Family Name
    Lead Count (#)
    Operating Freq (Max) (MHz)
    On-chip Oscillator
    PLL
    I/O Ports
    Timer
    Ethernet Remarks
    SPI (ch) (#)
    UART (ch) (#)
    Operating Voltage Range (V)
    Remarks
    Buy / Sample
    Part Number
    MC-10105F1-821-FNA-M1-A
    play_circleActive
    memory
    view_in_ar
    		TPS-1 196 100 No Yes 48 Watchdog Timer x 1-ch ２ch 1 1 0.9 - 1.1 Industrial communication, include PROFINET Device IP and 2port PHY, Power Supply = VDD = 0.9 to 1.1 V, VDDIO = 3.0 to 3.6V
