Features
- Dual differential outputs
- Output frequency range: 34.375MHz to 4400MHz (continuous range)
- RF output divided by 1, 2, 4, 8, 16, 32, 64
- Open drain outputs
- Fractional-N synthesizer (also supports Integer-N mode)
- 16-bit integer and 12-bit fractional (16-bit fractional when using the extended registers)
- 3- or 4-wire SPI interface (compatible with 3.3V and 1.8V)
- Single 3.3V supply
- Logic compatibility: 1.8V
- Programmable output power level: -4dBm to +5dBm (up to +7 when using the extended registers)
- Mute function
- Ultra-low PN for 1.1GHz LO: -143dBc/Hz at 1MHz offset, (typical)
- Lock Detect indicators
- Input reference frequency: 5MHz to 310MHz
- Power consumption: 380mW (typical) (RF_OUTB disabled)

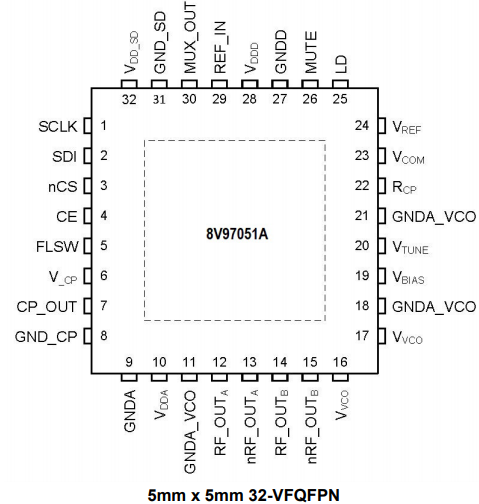

- 5mm × 5mm 32-VFQFPN package
- Automatic VCO band selection (Autocal feature)
- -40 °C to +85 °C ambient operating temperature
- Lead-free (RoHS 6) packaging
- Supported by Renesas' Timing Commander software tool
8V97051A - Block Diagram
Description
The 8V97051A is a high-performance wideband RF synthesizer/PLL optimized for use as the local oscillator (LO) in multi-carrier, multi-mode FDD and TDD base station radio cards. It is offered in a compact 5mm × 5mm, 32-VFQFPN package.
The 8V97051A offers a default Fractional Mode with the option to use it with an Integer mode. It requires an external loop filter.
The 8V97051A with an integrated voltage-controlled oscillator (VCO) supports output frequencies from 34.375MHz to 4400MHz and maintains superior phase noise and spurious performance.
RF_OUT[A:B] output drivers have independently programmable output power ranging from -4dBm to +7dBm. The RF_OUT outputs can be muted. The mute function is accessible via an SPI command or mute pin.
Renesas' RF Synthesizer family also includes the 8V97053 wideband RF synthesizer/PLL with integrated VCO that offers enhanced phase noise specifications geared to GSM and Band 42 radio card applications.
Applications
- Wireless Infrastructure
- Test Equipment
- CATV Equipment
- Military and Aerospace
- Wireless LAN
- Clock Generation
| Part Number | Status | Samples | Stock | Package | Budgetary Price (USD) | Lead Count (#) | Carrier Type | Moisture Sensitivity Level (MSL) | Qty. per Reel (#) | Qty. per Carrier (#) | Pb (Lead) Free | Pb Free Category | Temp. Range (°C) | Country of Assembly | Country of Wafer Fabrication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8V97051ANLGI | NRND | N/A | Out of Stock | VFQFPN | 1ku | $4.72 | 32# | Tray | 3 | 0 | 490# | Yes | e3 Sn | -40 to 85°C (Tc ≤ 105°C) | TAIWAN | SINGAPORE |
| 8V97051ANLGI/W | NRND | N/A | Out of Stock | VFQFPN | 1ku | $4.72 | 32# | Reel | 3 | 2500# | 0 | Yes | e3 Sn | -40 to 85°C (Tc ≤ 105°C) | TAIWAN | SINGAPORE |
| 8V97051ANLGI8 | NRND | N/A | Out of Stock | VFQFPN | 1ku | $4.72 | 32# | Reel | 3 | 2500# | 0 | Yes | e3 Sn | -40 to 85°C (Tc ≤ 105°C) | TAIWAN | SINGAPORE |
