Quad Digital Controlled Potentiometers (XDCP™); Low Noise/Low Power/I2C® Bus/256 Taps
Jump to Page Section:
Overview
Description

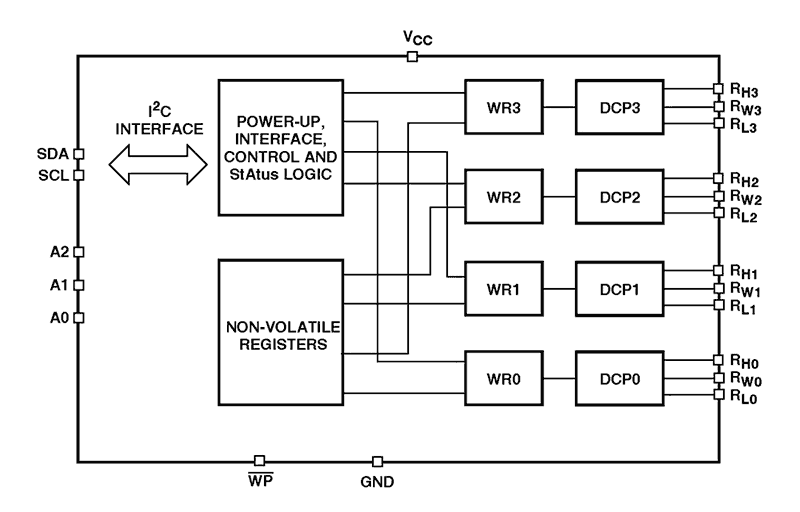

The X95840 integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. Each potentiometer has an associated volatile Wiper Register (WR) and a non-volatile Initial Value Register (IVR), that can be directly written to and read by the user. The contents of the WR controls the position of the wiper. At power up the device recalls the contents of the four DCP's IVR to the corresponding WRs. The DCPs can be used as three-terminal potentiometers or as two-terminal variable resistors in a wide variety of applications including control, parameter adjustments, and signal processing.
Features
- Four Potentiometers in One Package
- 256 Resistor Taps-0.4% Resolution
- I2C Serial Interface
- Three address pins, up to eight devices/bus
- Wiper Resistance: 70Ω Typical @ 3.3V
- Non-Volatile Storage of Wiper Position
- Standby Current <5µA Max
- Power Supply: 2.7V to 5.5V
- 50kΩ, 10kΩ Total Resistance
- High Reliability
- Endurance: 150,000 data changes per bit per register
- Register data retention: 50 years @ T ≤75°C
- 20 Ld TSSOP
- Pb-Free Plus Anneal Available (RoHS Compliant)
Comparison
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.35 MB | |
| Manual - Development Tools | PDF 1.40 MB | |
| Price Increase Notice | PDF 257 KB | |
| Price Increase Notice | PDF 227 KB | |
| Product Advisory | PDF 363 KB | |
| Product Change Notice | PDF 121 KB | |
| Product Change Notice | PDF 120 KB | |
| Application Note | PDF 281 KB | |
| Application Note | PDF 534 KB | |
| Application Note | PDF 513 KB | |
| Application Note | PDF 251 KB | |
| Other | PDF 315 KB | |
| Application Note | PDF 503 KB | |
| Application Note | PDF 287 KB | |
14 items
|
||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
X95840UV20IZ-2.7 Active Samples Available |
TSSOP | Tube | 600 | Get Samples, |
| TSSOP | Reel | 2500 | ||
X95840WV20IZ-2.7 Active Samples Available |
TSSOP | Tube | 600 | Get Samples, |
| TSSOP | Reel | 2500 |
