Overview

System on Module (SoM) solutions are small form-factor, ready-to-use processor modules. SoMs enable customers to accelerate time-to-market for an embedded product and reduce overall project schedule.

This scalable human machine interface (HMI) Smart Mobility ARChitecture (SMARC) SoM solution provides an optimized power and timing tree for RZ/G2 MPUs which drive displays (HDMI and LVDS). It also supports two wireless protocols (Wi-Fi and Bluetooth®) and Gigabit Ethernet interface all on CIP Linux. This helps designers looking at a SoM avoid risk by using a proven solution.

System benefits

  • Powerful RZ/G2/M/N/H on Arm® Cortex A53 and Cortex A57 cores, 2/4GB LPDDR4, 32GB eMMC Flash
  • High performance – Up to 8 cores, PowerVR 3D graphics, H.265 playback, H.264 recoding/playback
  • High reliability - ECC for internal L1 and L2 cache, ECC for external DDR memory interfaces
  • Super Long Term Support (SLTS) - Security maintenance for over 10 years, real-time patches for CIP kernel, Verified Linux Package (VLP) tested and maintained by Renesas.

For ordering information, please visit the RelySys Tech RZ/G2 SMARC SoM Module page.

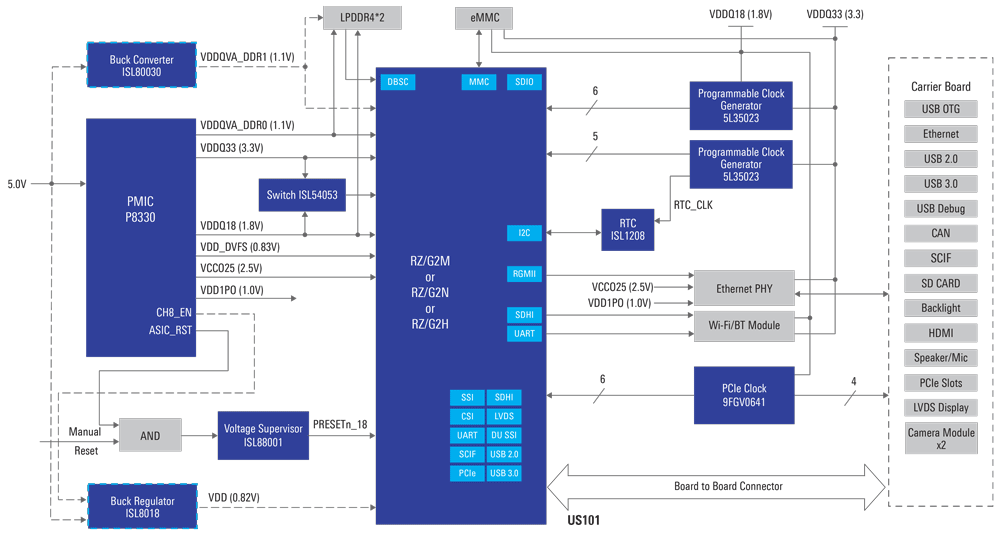

scalable-hmi-smarc-som-with-ai-block-diagram

Related Products

Product Description Featured Document Ordering

Microprocessor
RZ/G2M Dual-core Arm® Cortex®-A57 (1.5GHz) and Quad-core Arm® Cortex®-A53 (1.2GHz) CPUs, with 3D Graphics and 4K Video Encoder/Decoder RZ/G2M Hardware User's Manual Select Specific Device

Buck Converter
ISL80030 3A Synchronous Buck Converter in a 2x2 DFN Package Datasheet Buy/Sample

Buck Regulator
ISL8018 8A Low Quiescent Current High-Efficiency Synchronous Buck Regulator Datasheet Buy/Sample

PMIC
P8330 Integrated Multi-channel PMIC with Inrush Control and Backup Power Datasheet Buy/Sample

Switch
ISL54053 Ultra-Low ON-Resistance, Low Voltage, Single Supply, SPDT Analog Switch Datasheet Buy/Sample

Voltage Supervisor
ISL88001 Ultra-Low Power 3Ld Voltage Supervisors in SC-70 and SOT-23 Packages Datasheet Buy/Sample

Real-Time Clock (RTC)
ISL1208 I2C Real-Time Clock/Calendar, Low Power RTC with Battery Backed SRAM Datasheet Buy/Sample

Programmable Clock Generator
5L35023B VersaClock® 3S Programmable Clock Generator Datasheet Buy/Sample
5P35023B Programmable VersaClock® Clock Generator Datasheet Buy/Sample

PCIe Clock
9FGV0641 6-output 1.8V PCIe Gen1–4 Clock Generator with Zo = 100Ω Datasheet Buy/Sample

Videos & Training

Renesas Winning Combination US101 Scalable SMARC SoM with AI

Renesas' SMARC 2.0 SoM is a Linux-based AI development platform using the RZ/G2 family of Microprocessors suitable for HMI, 3D animation or 4K UHD playback.

Video List
Lab on the Cloud

Lab on the Cloud

Renesas' Lab on the Cloud is an online environment where Renesas solutions, including popular evaluation boards, winning combinations and software, are hosted in a remote lab that customers access and test online.

Scalable HMI SMARC SoM with AI

Renesas' SMARC 2.0 SoM is a Linux-based AI development platform using the RZ/G2 family of microprocessors suitable for human machine interface (HMI), 3-D animation or 4K UHD playback. It offers a turn-key solution for applications like surveillance solutions, object detection, face detection, image processing, computing, gateway etc.
