ADC1210S080F2 demoboard; LVDS/DDR version;
Jump to Page Section:
Overview
Description

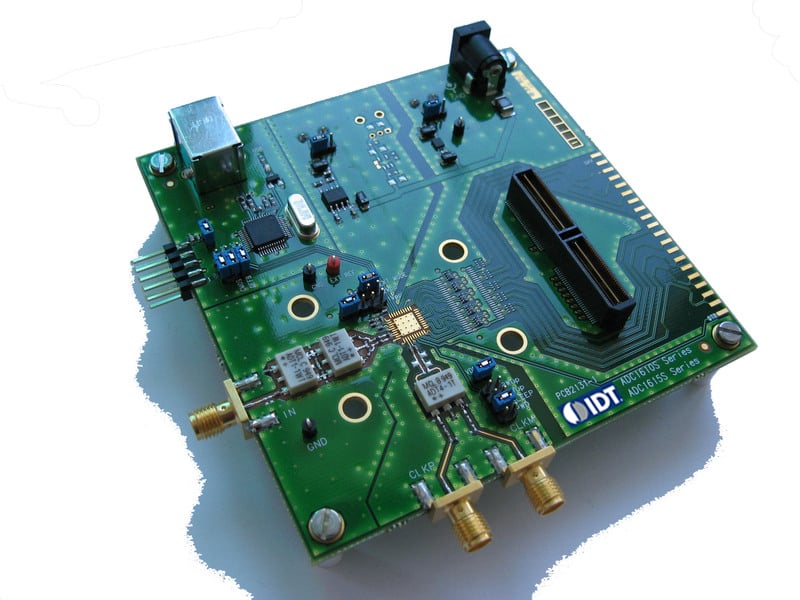

IDTs ADC1210S080F2 demoboard is suitable for dynamic performance evaluations from low to high IF configuration with LVDS DDR output variants. A data-acquisition board can be used during design and prototype to analyze ADC performance.
Features
- LVDS/DDR outputs
- Single power supply (on-board regulators)
- SMA connector for clock and analog input signals
Product Options
Processing table
| BD0 | BOARD | 0 | I | No |
