The SLG46857-A provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time programmable (OTP) Non-Volatile Memory (NVM) to configure the interconnect logic, the IO Pins and the macrocells of the SLG46857-A. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.

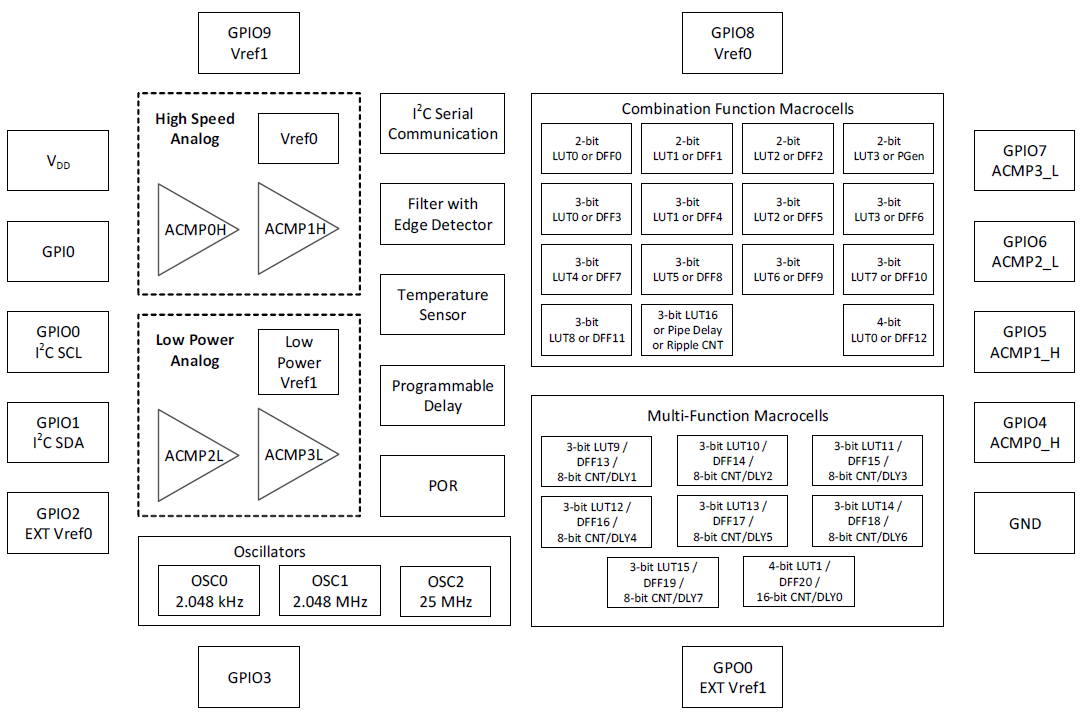

SLG46857-A Block Diagram
SLG46857-A Block Diagram
  • Read Back Protection (Read Lock)
  • Power Supply: 2.5 V (±8 %) to 5 V (±10 %)
  • RoHS Compliant / Halogen-Free
  • TQFN-14 With Wettable Flanks
  • AEC-Q100 Grade 1

Macrocells Overview

  • Two High Speed General Purpose Analog Comparators (ACMPxH);
  • Two Low Power General Purpose Analog Comparators (ACMPxL);
  • Two Voltage References (Vref):
    • Two Vref Outputs;
  • Fifteen Combination Function Macrocells:
    • Three Selectable DFF/Latch or 2-bit LUTs;
    • One Selectable Programmable Pattern Generator or 2-bit LUT;
    • Nine Selectable DFF/Latch or 3-bit LUTs;
    • One Selectable Pipe Delay or Ripple Counter or 3-bit LUT;
    • One Selectable DFF/Latch or 4-bit LUTs;
  • Eight Multi-Function Macrocells:
    • Seven Selectable DFF/Latch or 3-bit LUTs + 8-bit Delay/Counters;
    • One Selectable DFF/Latch or 4-bit LUT + 16-bit Delay/Counter;
  • Serial Communications:
    • I2C Protocol Interface;
  • Programmable Delay with Edge Detector Output;
  • Deglitch Filter or Edge Detector;
  • Three Oscillators (OSC):
    • 2.048 kHz Oscillator;
    • 2.048 MHz Oscillator;
    • 25 MHz Oscillator;
  • Analog Temperature Sensor;
  • Power-On Reset (POR).

アプリケーション

  • In-Vehicle Navigation
  • Infotainment
  • Advanced Driver Assistance Systems (ADAS)
  • Automotive Display Clusters
  • Body Electronics
