16K x 36 Sync, 3.3V Dual-Port, Pipelined, Interleaved I/O's
ページセクションへ移動：
概要
説明

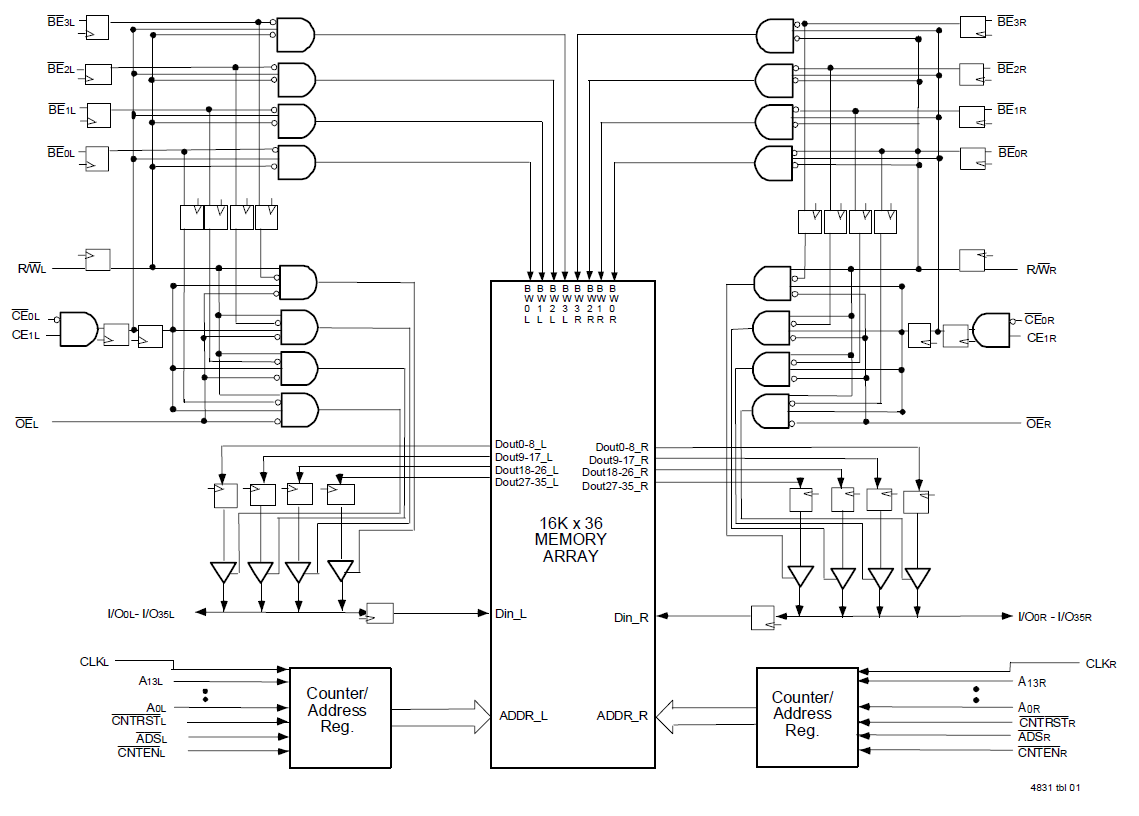

The 70V3569 is a high-speed 16K x 36 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70V3569 can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 3.3V.
特長
- Dual-Port allows simultaneous access of the same memory location
- Pipelined output mode
- Counter enable and repeat features
- Dual chip enables allow for depth expansion without additional logic
- Full synchronous operation on both ports
- Separate byte controls for multiplexed bus and bus matching compatibility
- LVTTL- compatible, single 3.3V (±150mV) power supply for core
- LVTTL compatible, selectable 3.3V (±150mV) or 2.5V (±100mV) power supply for I/Os and control signals on each port
- Available in a 256-pin BGA, 208-pin fpBGA and 208-pin PQFP packages
- Industrial temperature range (-40C to +85C) is available
製品比較
アプリケーション
ドキュメント
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日付 |
| データシート | PDF 389 KB | |
| ガイド | PDF 123 KB | |
| EOL通知 | PDF 645 KB | |
| 製品変更通知 | PDF 24 KB | |
| 製品変更通知 | PDF 252 KB | |
| 製品変更通知 | PDF 194 KB | |
| アプリケーションノート | PDF 198 KB | |
| アプリケーションノート | PDF 156 KB | |
| アプリケーションノート | PDF 225 KB | |
| アプリケーションノート | PDF 97 KB | |
| アプリケーションノート | PDF 154 KB | |
| アプリケーションノート | PDF 112 KB | |
| 製品変更通知 | PDF 729 KB | |
| 製品変更通知 | PDF 16 KB | |
| 製品変更通知 | PDF 290 KB | |
| 製品変更通知 | PDF 80 KB | |
| 製品変更通知 | PDF 38 KB | |
| 製品変更通知 | PDF 26 KB | |
| 製品変更通知 | PDF 197 KB | |
| 製品変更通知 | PDF 150 KB | |
| 製品変更通知 | PDF 13 KB | |
| 製品変更通知 | PDF 40 KB | |
| 製品変更通知 | PDF 274 KB | |
| 製品変更通知 | PDF 44 KB | |
24 items
|
||
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
ご購入 / サンプル |
|
|---|---|---|---|---|---|---|
| 型名 | ||||||
| CABGA | 256 | C | No | Tray | サンプルを入手, | |
| CABGA | 256 | C | No | Reel | ||
| CABGA | 208 | C | No | Tray | サンプルを入手, | |
| CABGA | 208 | C | No | Reel | ||
| CABGA | 208 | C | Yes | Tray | サンプルを入手, | |
| CABGA | 208 | C | Yes | Reel | ||
| CABGA | 256 | C | No | Tray | サンプルを入手, | |
| CABGA | 256 | C | No | Reel | ||
| CABGA | 256 | I | No | Tray | サンプルを入手, | |
| CABGA | 256 | I | No | Reel | ||
| CABGA | 208 | C | No | Tray | サンプルを入手, | |
| CABGA | 208 | C | No | Reel | ||
| CABGA | 208 | I | No | Tray | サンプルを入手, | |
| CABGA | 208 | I | No | Reel | ||
| CABGA | 256 | C | No | Tray | サンプルを入手, | |
| CABGA | 256 | C | No | Reel | ||
| CABGA | 208 | C | No | Tray | サンプルを入手, | |
| CABGA | 208 | C | No | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
サポート
Renesas Samples
注文可能な製品番号を選択
| 発注型名 | サンプル |
|---|---|
| 70V3569S4BC | Availability |
| 70V3569S4BF | Availability |
| 70V3569S4BFG | Availability |
| 70V3569S5BC | Availability |
| 70V3569S5BCI | Availability |
| 70V3569S5BF | Availability |
| 70V3569S5BFI | Availability |
| 70V3569S6BC | Availability |
| 70V3569S6BF | Availability |
