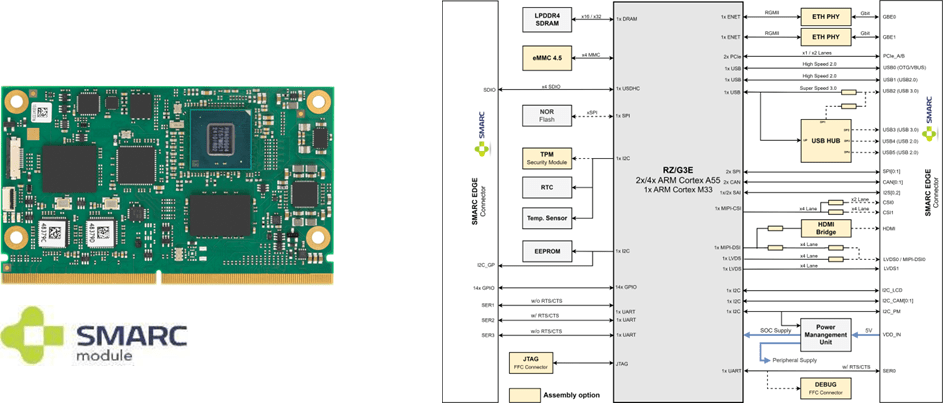

The TRIA SM2S-G3E SMARC 2.2 module family is equipped with the latest cost-effective and power-efficient RZ/G3E processors, manufactured by Renesas. The new module family is compatible with previous Renesas-based modules SMS-G2UL, SM2S-G2L, and SM2S-V2L and provides developers with more performance and features for their projects. For evaluation and design-in of the TRIA SM2S-G3E module, Tria Technologies provides a development platform and a starter kit. Support for Linux is available.
画像
特長
- Fully scalable TRIA product family
- Based on open SMARC 2.2 standard
- Small size form factor: 80x52mm
- Full industrial temperature range -40°C to +85°C
- Designed and manufactured in Germany
- Yocto Linux board support package
- Product longevity up to 15 years
- Up to 8GB LPDDR4 with inline ECC
- Up to 256GB eMMC Flash
- Dual independent display support
- MIPI CSI-2 camera interface
- Dual GbE (supports TSN/ IEEE 1588)
- PCIe Gen. 3, USB 3.2, USB 2.0
- SDIO, CAN-FD, UART, SPI, I2C, I2S
