特長
- CPU: G3M core, Max. 240MHz
- Voltage: 3V to 3.6V
- Package: 292 to 404-pin FBGA
- Memory: SRAM Max. 1.5MB, Program Flash Max. 10MB
- Timer: 16-bit Timer (ch) x 37, Watchdog Timer (ch) x 2, STM x 2unit, GTM(ARU, CMU, TBU, MCFG, ICM, CMP, MON, DTMx3unit,MCSx2unit)
- Analog function: 12-bit A/D Converter (ch) x 40
- On-chip Oscillator Freq. (MHz): 16 MHz
- Others: PLL, Power-On Reset
説明

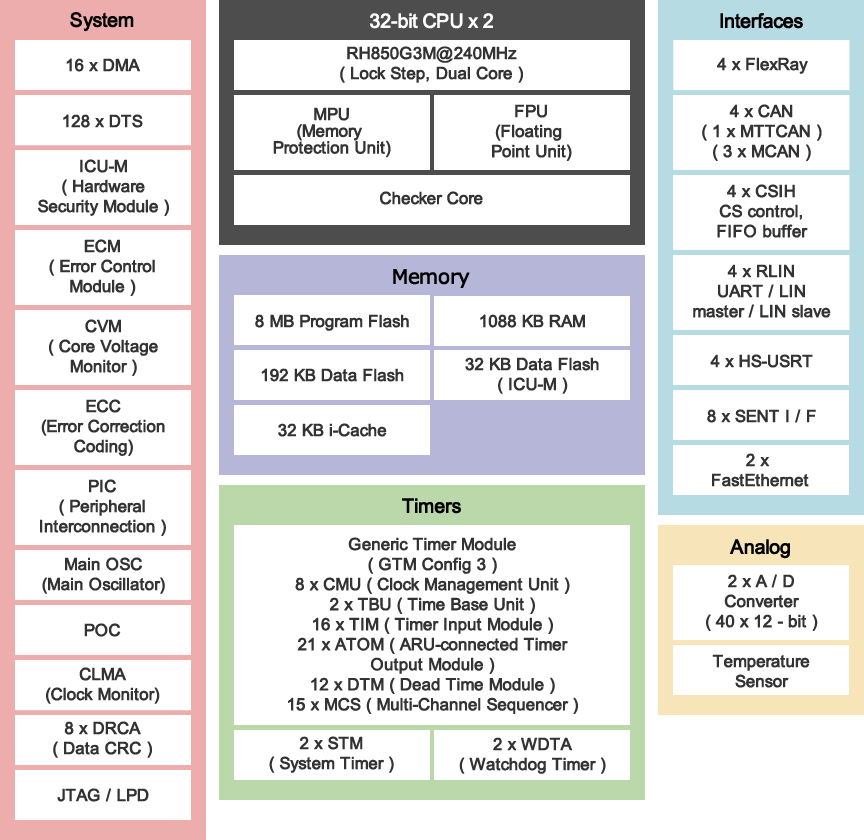

RH850/P1H-Cマイコンは、2ユニットの32ビットRH850G3Mロックステップコア, コードフラッシュ, データフラッシュ, RAMモジュール, DMAコントローラ, 車載アプリケーションに使われる多様な通信インタフェース, A/Dコンバータ, タイマユニットなどの機能を持ち、機能安全ISO26262に準拠した車載アプリケーションに最適です。
パラメータ
| 属性 | 値 |
|---|---|
| Main CPU | G3M |
| Program Memory (KB) | 4096, 8192, 10240 |
| RAM (KB) | 1088, 1536 |
| Supply Voltage (V) | 3 - 3.6, 3.0 - 3.6 |
| I/O Ports | 131 |
| DRAM I/F | No |
| 3D GPU | No |
| Temp. Range (°C) | -40 to +150 |
| Ethernet speed | 100Mbit |
| Ethernet (ch) | 0 |
| EtherCat (ch) (#) | 0 |
| USB FS (host ch/device ch) | ( 0 / 0 ) |
| USB HS (host ch/device ch) | ( 0 / 0 ) |
| USB SS (host ch/device ch) | ( 0 / 0 ) |
| PCI Express (generation and ch) | No |
| SCI or UART (ch) | 0, 4, 8 |
| SPI (ch) | 4 |
| CAN (ch) | 3, 4 |
| CAN-FD (ch) | 3, 4 |
| Wireless | No |
| SDHI (ch) | 0 |
| High Resolution Output Timer | 0 |
| PWM Output (pin#) | 0 |
| 32-Bit Timer (ch) | 0 |
| 16-Bit Timer (ch) (#) | 0 |
| 8-Bit Timer (ch) | 0 |
| Standby operable timer | No |
| Asynchronous General Purpose Timer / Interval Timer (ch) | 0 |
| 16-Bit A/D Converter (ch) | 0 |
| 14-Bit A/D Converter (ch) | 0 |
| 12-Bit A/D Converter (ch) | 16, 32, 40 |
| 10-Bit A/D Converter (ch) | 0 |
| 24-Bit Sigma-Delta A/D Converter (ch) | 0 |
| 16-Bit D/A Converter (ch) | 0 |
| 12-Bit D/A Converter (ch) | 0 |
| 10-Bit D/A Converter (ch) (#) | 0 |
| 8-Bit D/A Converter (ch) | 0 |
| Capacitive Touch Sensing Unit (ch) | 0 |
| Graphics LCD Controller | No |
| MIPI Interfaces (CSI) (ch) | 0 |
| Image Codec | No |
| Segment LCD Controller | No |
| Security & Encryption | Yes |
アプリケーション
- Chassis & Safety
