特長
- True dual-ported memory cells, which allow simultaneous reads of the same memory location
- Separate upper-byte and lower-byte control for multiplexed bus compatibility
- 5962-91662 easily expands data bus width to 32 bits or more
- Interrupt flag and on-chip port arbitration logic
- Full on-chip hardware support of semaphore signaling between ports
- Fully asynchronous operation from either port
- Battery backup operation - 2V data retention
- TTL-compatible, single 5V (±10%) power supply
- Available in 84-pin ceramic PGA and Flatpack packages
説明

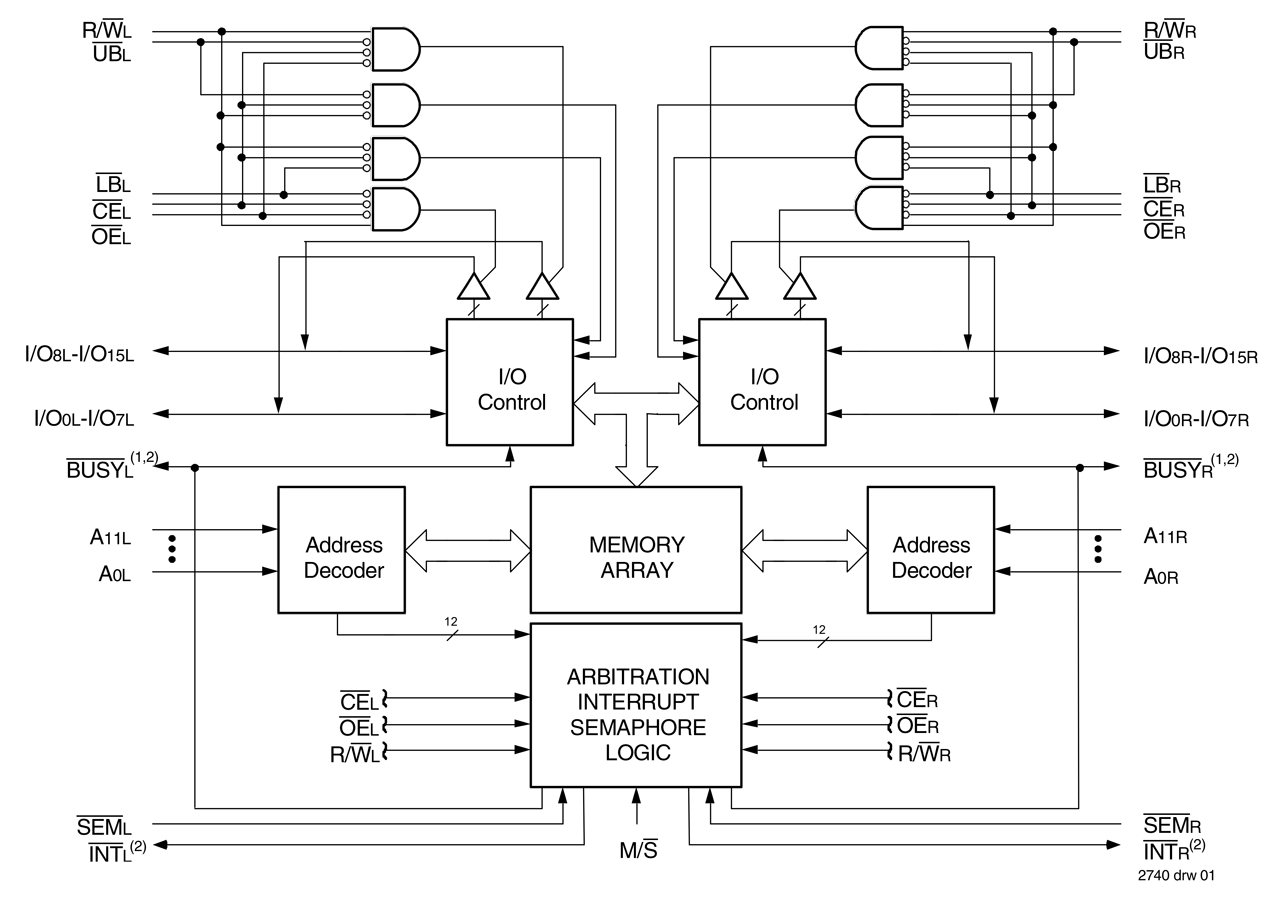

The 5962-91662 (7024) is a high-speed 4K x 16 dual-port static RAM designed to be used as a stand-alone 64K-bit dual-port RAM or as a combination Master/Slave dual-port RAM for 32-bit or more word systems. An automatic power-down feature controlled by the Chip Enable (CE) permits the on-chip circuitry of each port to enter a very low standby power mode. The military-grade product complies with MIL-PRF-38535 QML.
パラメータ
| 属性 | 値 |
|---|---|
| Core Voltage (V) | 5 |
| Bus Width (bits) | 16 |
| Density (Kb) | 64 |
| Pkg. Code | FP84 |
| Interface | Async |
| I/O Type | 5.0 V TTL |
| Access Time (ns) | 55 |
| Temp. Range (°C) | -55 to 125°C |
| Architecture | Dual-Port |
| Organization | 4K x 16 |
| Function | Busy, Interrupt, Master, Semaphore, Slave |
パッケージオプション
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| FPACK | 29.2 x 29.21 x 2.54 | 84 | 1.27 |
