The PTX130R demonstration kit provides an efficient platform for evaluating and developing NFC reader applications on Android™. Built around the PTX130R NFC reader IC, it enables rapid prototyping with a pre-integrated Android software stack based on NCI 2.x, supporting traditional NFC Forum and Point of Sale (PoS) operations as well as advanced features like Soft PoS and Apple VAS/ECP extensions.
特長
- 2W high-power NFC reader kit
- Android Integration Stack (AIS) for Android 12, built on NCI specification
- Plug-and-play software integration for any terminal or host MCU architecture
- Supports NFC P2P (initiator) and Host Card Emulation (HCE)
- DiRAC® technology for electromagnetic interference (EMI) filter-less operation and optimized interoperability
- Comprehensive RF design support with configuration tool and SDKs
アプリケーション
- EMVCo 3.0/3.1 PoS systems
- Android™ devices
- High-performance Internet of Things (IoT) applications
ドキュメント
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| マニュアル－ハードウェア | PDF 1.57 MB | |
| アプリケーションノート | PTX130R AIS Product Support Library
|
|
| アプリケーションノート | Hardware Description PTX130R EB-ST-QFN56-POS_IoT v1.1
AI生成コンテンツ:

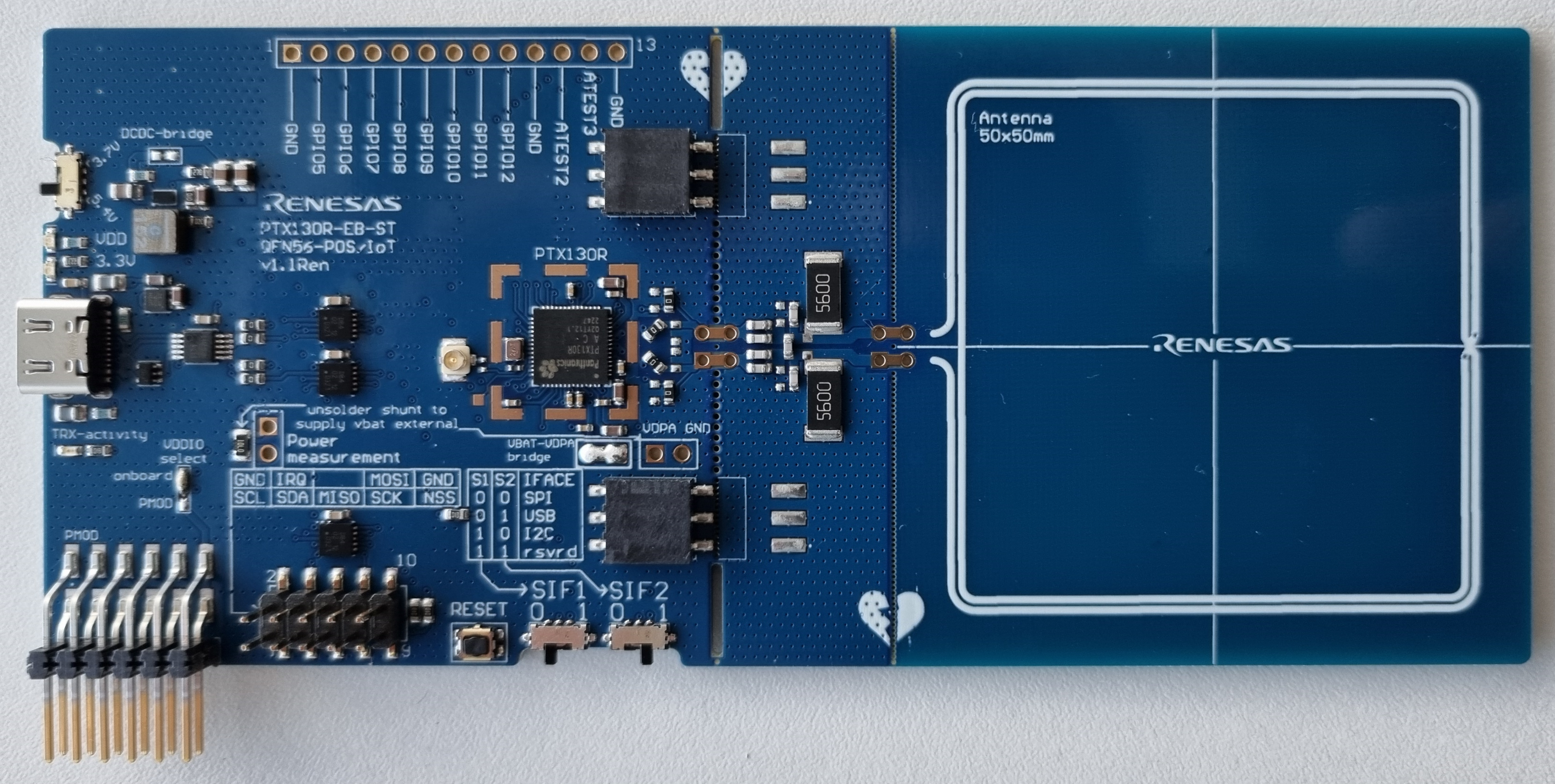

The Evalboard PTX130R v1.1 is powered via USB-C and supports two voltage settings: 3.7V and 5.4V, with 5.4V as the default for compliance testing. It uses a CH340E USB-to-UART bridge for USB communication, with automatic driver installation on Windows 10. The board supports three interfaces—SPI, UART via USB, and I2C—selectable through SIF1 and SIF2 switches. UART connects through the USB-C port, while SPI and I2C connect via a 2x5 pin header. The design files include power supply details, USB interface, interface switching, PMOD, logic level, clocking, debugging, power consumption, schematic, assembly, PCB, and PDF documentation.
|
|
3件
|
||
製品選択
| Part Number | Status | Stock | Budgetary Price (USD) | Sampleable |
|---|---|---|---|---|
| 10009130-PTX130REK | Active | In Stock | 1u | $160 | Available |
ビデオ&トレーニング
The IoT market has been booming over the last few years, to say the least. By 2030 there will be approximately half a trillion IoT devices shipped to the market, and already by the end of 2021, almost 7 billion IoT devices shipped will be NFC enabled.
NFC contributes a big deal to the growth and development of IoT applications, enabling a variety of different features in different setups. Ranging from consumer devices to industry 4.0, electric vehicles, and smart home ecosystems – NFC is an integral part of any application design. Our products at Renesas are designed with the end application in mind.
In this video, we present to you the benefits that PTX100R brings to the IoT arena and what can be achieved by using our industry's best NFC IC.
