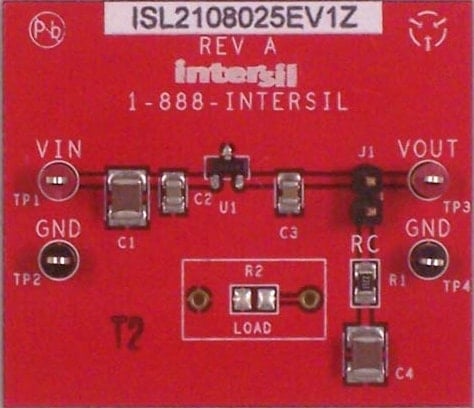

The ISL21080xxEV1Z evaluation boards are designed to measure the performance of the nano power ISL21080 voltage reference. The reference comes in a wide selection of output voltages ranging from 0.9V to 5.0V, and an initial accuracy as low as 0.2% (3.0V to 5.0V options). With a typical supply current of 500nA or less, the ISL21080 family is ideal for extending battery life while reducing cost for general purpose portable applications.
特長
- 10μF bypass capacitor
- 0.01μF bypass capacitor
- 0.01µF load capacitor
- 10µF damper capacitor
- 2.21kΩ damper resistor
- DNP optional load resistor
- ISL21080 voltage reference
- DNP damper jumper
アプリケーション
- Energy harvesting applications
- Wireless sensor network applications
- Low power voltage sources for controllers, FPGA, ASICs, or logic devices
- Battery management/monitoring
- Low power standby voltages
- Portable instrumentation
- Consumer/Medical electronics
- Wearable electronics
- Lower cost industrial and instrumentation
- Power regulation circuits
- Control loops and compensation networks
- LED/Diode supply
製品選択
| Part Number | Status | Stock | Budgetary Price (USD) | Description |
|---|---|---|---|---|
| ISL2108009EV1Z | Active | In Stock | 1u | $22.5 | 300nA NanoPower Voltage References with 0.9 VOUT |
| ISL2108012EV1Z | Active | Out of Stock | 1u | $22.5 | 300nA NanoPower Voltage References with 1.25 VOUT |
| ISL2108015EV1Z | Active | Out of Stock | 1u | $22.5 | 300nA NanoPower Voltage References with 1.5 VOUT |
| ISL2108020EV1Z | Active | Out of Stock | 1u | $22.5 | 300nA NanoPower Voltage References with 2.048 VOUT |
| ISL2108025EV1Z | Active | Out of Stock | 1u | $22.5 | 300nA NanoPower Voltage References with 2.5 VOUT |
| ISL2108030EV1Z | Active | Out of Stock | 1u | $22.5 | 300nA NanoPower Voltage References with 3.0 VOUT |
| ISL2108033EV1Z | Active | Out of Stock | 1u | $22.5 | 300nA NanoPower Voltage References with 3.3 VOUT |
| ISL2108040EV1Z | Active | Out of Stock | 1u | $22.5 | 300nA NanoPower Voltage References with 4.096 VOUT |
| ISL2108050EV1Z | Obsolete | Out of Stock | 300nA NanoPower Voltage References with 5.0 VOUT |
