ISL80505

Active
Product Longevity: 2033

High Performance 500mA LDO

Order Now

Features

  • ±1.8% VOUT accuracy guaranteed over line, load, and TJ = -40°C to +125°C
  • Very low 45mV dropout voltage at VOUT = 2.5V
  • Stable with a 4.7µF output ceramic capacitor
  • Very fast transient response
  • Programmable output soft-start time
  • Excellent PSRR over wide frequency range
  • Current limit protection
  • Thermal shutdown function
  • Available in an 8 Ld DFN package
  • Pb-free (RoHS compliant)
Find Other Products in Linear Regulators (LDO)

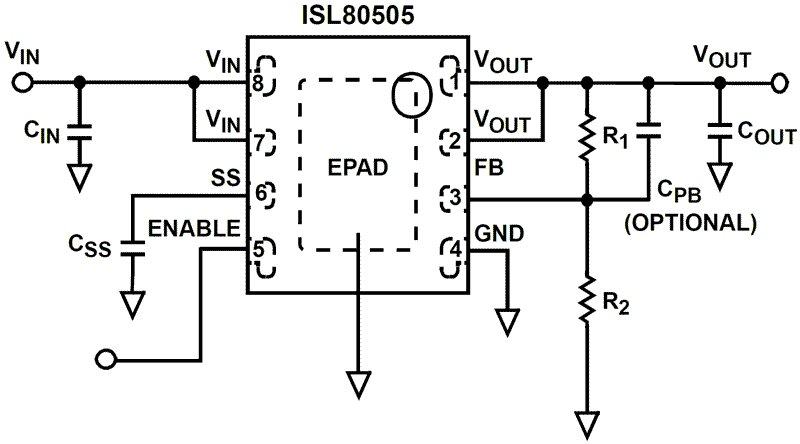

ISL80505 Functional Diagram
ISL80510/05 High Performance LDO Regulators
ISL80505 Functional Diagram
ISL80510/05 High Performance LDO Regulators

Description

The ISL80505 is a single output Low Dropout voltage regulator (LDO) capable of sourcing up to 500mA output current. This LDO operates from input voltages of 1.8V to 6V. The output voltage of ISL80505 can be programmed from 0.8V to 5.5V. A submicron BiCMOS process is utilized for this product family to deliver the best in class analog performance and overall value. This CMOS LDO consumes significantly lower quiescent current as a function of load compared to bipolar LDOs, which translates into higher efficiency and packages with smaller footprints. State-of-the-art internal compensation achieves a very fast load transient response and excellent PSRR. The ISL80505 provides an output accuracy of ±1.8% VOUT accuracy over all load, line and temperature variations (TJ = -40°C to +125°C). An external capacitor on the soft-start pin provides an adjustable soft starting of the output voltage ramp to control the inrush current. The ENABLE feature allows the part to be placed into a low quiescent current shutdown mode.

Parameters

Attributes Value
Input Voltage (Min) (V) 1.8
Input Voltage (Max) (V) 6
Output Voltage (Min) (V) 0.8
Output Voltage (Max) (V) 5.5
Output Current 1 (Max) (A) 0.5
Drop Out Voltage (Typical) 45 @ 500mA
Fixed Output Voltage Option No
PSRR (db) 60
Quiescent Current 2200 µA
Noise (100Hz to 100kHz) (μVrms) 79
Qualification Level Standard

Package Options

Pkg. Type Pkg. Dimensions (mm) Lead Count (#) Pitch (mm)
DFN 3.0 x 3.0 x 0.90 8 0.7

Application Block Diagrams

Smart HMI System with Voice & Display Interfaces Block Diagram
Smart HMI System with Voice & Display Interfaces
Smart HMI system with 32-bit MCU supports GUI, voice I/O, IoT connectivity, and fast development tools.
Torque Control System Block Diagram
Torque Control System
Precision torque control ensures product quality using MCUs with high-precision AFE and reliable sensors.
Force Sensor Solution Block Diagram
Force Sensor System
Force sensor system for accurate detection and calculations of strain gauge measurements.
Vision AI Gateway Block Diagram
Vision AI Gateway
Renesas' Vision AI Gateway design offers high-speed AI processing, enhanced value via edge AI capability, and a reliable power supply.
Interactive block diagram an industrial motor control system features an MPU and MCU for mutual monitoring, power supply ICs, and delta-sigma modulators.
Motor Control System with Industrial Network and Functional Safety
This motor control system integrates MPU and MCU for efficient industrial motor control and networking.
The high-performance surveillance camera interactive block diagram features an MPU design with DRP-AI, delivering powerful AI processing and energy efficiency.
AI-Enabled Surveillance Camera
AI-powered surveillance camera with DRP-AI boosts security with 4K imaging and low power.
SMARC SoM Module for RZ MPUs Block Diagram
SMARC SoM for RZ MPUs
Compact RZ SoMs with SMARC 2.1 offer high-speed interfaces, AI, robust security, and scalability.
HMI SoM with AI Accelerator Block Diagram
HMI SoM with AI Accelerator
Smart Range Hood Block Diagram
Smart Range Hood
Enhanced touch controls and advanced MCUs deliver superior functionality and innovation for smart range hoods.
Digital Illuminometer Block Diagram
Digital Illuminometer
Digital handheld lux meter with a light sensor, OLED, touch keypad, and USB‑charged MCU.
Industrial CAN Sensor Network Block Diagram
Industrial CAN Sensor Network
Industrial CAN network with Arm Cortex-M23 MCU offers reliable, secure communication and robust performance.
Voice Recognition & Smart Control Block Diagram
Smart Voice-Controlled Room Automation
Voice recognition enables hands-free control of devices improving hygiene and supporting multilingual commands.
Iris Scanning Security System Block Diagram
Iris Scanning Security System
Iris scanning boosts security and accuracy in biometrics for high-security environments.
Interactive block diagram of the resolver motor control system features an MCU, full-bridge FET drivers, buck regulators and RS-485 transceivers.
Resolver Motor Control for Small Industrial Robots
Compact robotic system offers precise motion control, robust design, and reduced development time.
Voice Activated DALI Lighting Controls Block Diagram
Voice Activated DALI Lighting Controls
One-chip DALI lighting control design with multi-language voice activation and optimized power.

Applied Filters:

Loading
Loading

Intersil’s single-output low drop-out voltage (LDO) regulators deliver leading edge performance against our competitors – including max dropout that’s nearly 50% lower and peak-to-peak excursions up to 9 times lower, at a highly competitive price. Watch our 1A ISL80510 go head-to-head with a competitor’s product.

Transcript

Hi, I'm Dhananjay Singh, Product Marketing Manager at Intersil Corporation. Here we are introducing a simple and inexpensive, yet high performance single-output, low dropout voltage regulator. The ISL80510 and ISL80505 comprise a family of new LDOs with 1A and 0.5A continuous current capability in pin-to-pin compatible, 3mm x 3mm DFN packets.

The 1A device operates from 2.2V to 6V, while the 0.5A device can be used from 1.8V to 6V. The output of these devices can be adjusted from 0.8V to 5.5V for a wide range of applications including low power RF amplifiers.

The ISL80510 and ISL80505 are designed to provide lowest dropout and best transient performance for sensitive loads. Their compensation loop is designed in a way to keep flat PSRR response over a wide range of frequencies giving you your added security in noisy conditions.

To help our customers, Intersil has designed a very simple and easy-to-use evaluation board to perform basic evaluation. This is a common evaluation board for both ISL80510 and ISL80505. These are the VIN points and these are the VOUT points. Probe points have been placed close to the IC to minimize middleman errors.

If you notice, we have a bunch of jumpers here to minimize bench work in the lab. This jumper is for enabling or disabling of the device and the series of jumpers are for VOUT setting. Basically, by selecting one of these jumpers, the user is selecting one of the possible output voltages of this volt. Users can select a VOUT setting from one of the fixed possible VOUT settings between 1V and 5V.

Here we are doing a one-on-one comparison between ISL80510 and a pin-to-pin compatible competitors part. Since both devices are pin-to-pin compatible, we can use the same board for a fair comparison. This board has ISL80510 on it, while this board has competitors device. Let's take a look at the outcome when we compare the performance of these two boards after testing under similar conditions.

Soft-start ramp, as you can see on this plot, ISL80510 provides a picture-perfect soft-start and shutdown ramp voltage, while the competitors device shows disturbances in both cases. If we look at dropout, the ISL80510 has a dropout that is almost half of the competitors device operating under similar condition.

Now let's have a look at transient performance. As you can see here, the peak-to-peak in competitors device is almost nine times bigger than what Intersil's device is showing. When compared to similar products in market, Intersil's LDO family provides the best cost performance for your sensitive loads.

For more information about these LDOs or any other power products, please visit our website. Thanks for watching.
