VersaClock® 3S Programmable Clock Generator with Integrated Crystal
Jump to Page Section:
Overview
Description

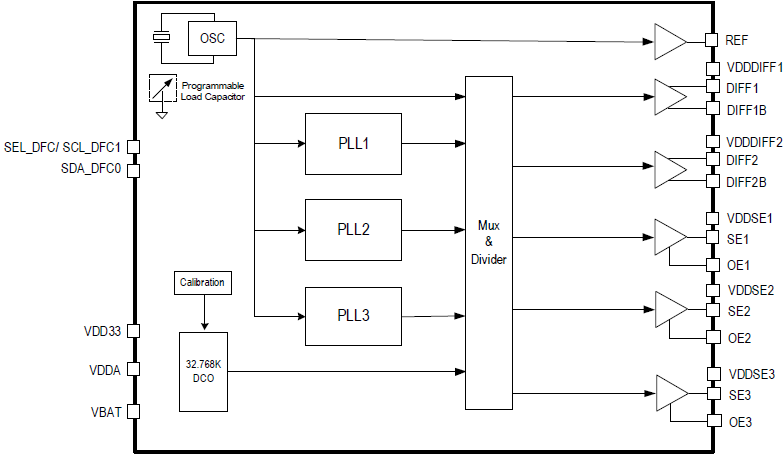

The 5X35023 is a VersaClock programmable clock generator and is designed for low power, consumer, and high performance PCI Express applications. The device is a three PLL architecture design, and each PLL is individually programmable and allowing for up to five unique frequency outputs.
The 5X35023 has built-in unique features such as Proactive Power Saving (PPS), Performance-Power Balancing (PPB), Overshoot Reduction Technology (ORT) and Extreme Low Power DCO. An internal OTP memory allows the user to store the configuration in the device without programming after power up, then program the 5X35023 again through the I²C interface.
The device has programmable VCO and PLL source selection to allow the user to do power-performance optimization base on the application requirements. It also supports one single-ended output and two pair of differential outputs that support LVCMOS, LP-HCSL, LVDS, and LVPECL. A low power 32.768kHz clock is supported with only less than 2μA current consumption for system RTC reference clock.
Features
- Integrated crystal in the package for board space saving
- Configurable OE pin function as OE, PD#, PPS or DFC control function
- Configurable PLL bandwidth/minimizes jitter peaking
- PPS: Proactive Power Saving features save power during the end device power down mode
- PPB: Performance Power Balancing feature allows minimum power consumption base on required performance
- DFC: Dynamic Frequency Control feature allows up to 4 different frequencies to switch dynamically
- Spread spectrum clock support to lower system EMI
- I²C interface
-
Supported by IDT Timing Commander™ software tool
Comparison
| 5X35023 | 5L35021 | 5L35023 | 5P35023 | |
| Outputs (#) | 5 | 5 | 7 | 7 |
| Output Type | LP-HCSL, LVCMOS, LVDS, LVPECL | LP-HCSL, LVCMOS | LP-HCSL, LVCMOS | LP-HCSL, LVCMOS, LVDS, LVPECL |
| Core Voltage (V) | 3.3 | 1.8 | 1.8 | 3.3 |
| Output Voltage (V) | 1.8, 2.5, 3.3 | 1.8 | 1.8 | 1.8, 2.5, 3.3 |
| Pkg. Dimensions (mm) | 4.0 x 4.0 x 1.5 | 3.0 x 3.0 x 1.0 | 4.0 x 4.0 x 0.9 | 4.0 x 4.0 x 0.9 |
| View Product | View Product | View Product |
Applications
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF647 KB
|
Datasheet
|
||
PDF348 KB
|
Application Note
|
||
PDF1.17 MB
|
Application Note
|
||
PDF256 KB
|
Application Note
|
||
PDF406 KB
|
Application Note
|
||
PDF342 KB
|
Application Note
|
||
PDF307 KB
|
Application Note
|
||
PDF480 KB
|
Application Note
|
||
PDF170 KB
|
Application Note
|
||
PDF146 KB
|
Application Note
|
||
PDF133 KB
|
Application Note
|
||
PDF495 KB
|
Application Note
|
||
PDF565 KB
|
Application Note
|
||
PDF438 KB
|
Application Note
|
||
PDF137 KB
|
Application Note
|
||
PDF723 KB
|
Manual - Hardware
|
||
PDF1.65 MB
|
Manual - Software
|
||
PDF392 KB
|
Overview
|
||
PDF1.83 MB
|
Overview
|
||
PDF110 KB
|
Product Change Notice
|
||
PDF53 KB
|
Schematic
|
||
PDF238 KB
|
Technical Brief
|
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
5P35023 and 5X35023 VersaClock 3S Programmable Clock Development Kit
The DEV5P35023 programmable clock development kit is designed to support the 5P35023 and 5X35023 VersaClock 3S devices. It provides a convenient way of configuring and...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
This device is factory-configurable. Try the Custom Part Configuration Utility.
Processing table
| VFQFPN | 24 | I | Yes | Tray | Get Samples, | |
| VFQFPN | 24 | I | Yes | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
VersaClock 3S Low-Power Programmable Clock Generator ICs
A brief introduction to IDT's VersaClock 3S programmable clock generator IC features, benefits, and applications. These clock timing devices provide an optimal combination of performance, power and flexibility.
IDT's VersaClock 3S devices meet the performance requirements of widely used standards including PCI Express® Gen 1/2/3. These new devices are ideal for computing systems, digital cameras, IP set-top boxes, home entertainment, audio systems, multi-function printers, IoT gateways, small-business storage, smart devices, medical equipment and automotive infotainment.
For more information about IDT's VersaClock programmable clock generator devices, visit www.IDT.com/go/VersaClock.
