200MHz Arm® Cortex®-M33, Entry-Line with High Performance & Streamlined Connectivity
Jump to Page Section:
Overview
Description
The Renesas RA6E1 group of 32-bit microcontrollers (MCUs) uses the high-performance Arm® Cortex®-M33 core with TrustZone. The RA6E1 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP) —and is the perfect entry point into the RA Family of microcontrollers. The RA6E1 is suitable for entry IoT applications requiring streamlined feature and connectivity integration including Ethernet, and unprecedented performance with 790.75 CoreMark, which are 3.95CoreMark / Mhz.

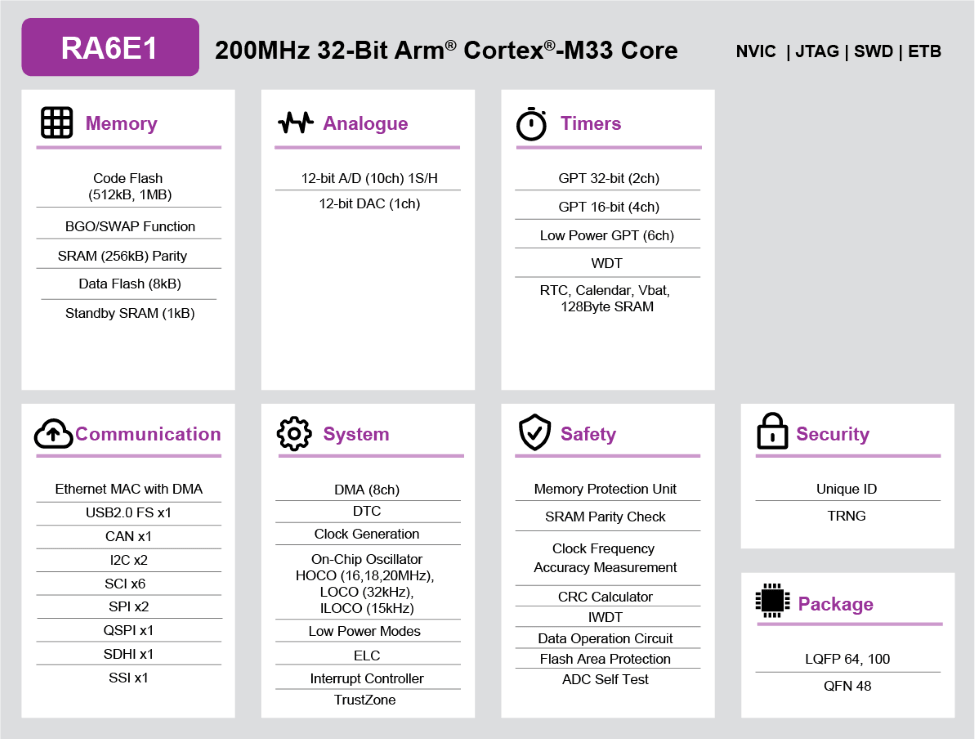

Features
- 200MHz Arm Cortex-M33 with TrustZone
- 512kB – 1MB Flash memory and 256kB SRAM
- 8kB Data Flash to store data as in EEPROM
- 1kB Stand-by SRAM
- Scalable from 48-pin to 100-pin packages
- Ethernet with MAC
- USB 2.0 Full Speed
- CAN 2.0B
- Quad SPI
- SCI (UART, Simple SPI, Simple I2C)
- SPI/I2C multi-master interface
- SDHI and MMC
Applications
| Cloud Gateway Module | |
| Ultra-Small Fingerprint Sensor | |
| Cyberon DSpotter | |
| Edge Voice User Interface (VUI) Solution | |
| Motor Control with Resolver Solution |
Applications
- Wired Ethernet applications
- Enhanced Security (fire detection, burglar detection, panel control)
- Metering (electricity, automated meter reading)
- Industry (robotics, door openers, sewing machines, vending machines, UPS)
- HVAC (heating, air conditioning, boiler control)
- General purpose
Documentation
| Title | Type | Date | |
|---|---|---|---|
Datasheet
|
|||
Manual - Hardware
|
|||
PDF1.91 MB
|
Application Note
|
||
PDF3.12 MB Related Files:
|
Application Note
|
||
PDF81 KB Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF1.00 MB Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF68 KB
|
Application Note
|
||
PDF2.02 MB Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF658 KB
|
Application Note
|
||
PDF2.02 MB
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
PDF160 KB
|
Application Note
|
||
PDF670 KB
|
Application Note
|
||
Application Note
|
|||
PDF57 KB
|
Application Note
|
||
PDF747 KB
|
Application Note
|
||
PDF1.48 MB Related Files:
|
Application Note
|
||
PDF138 KB Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF830 KB
|
Application Note
|
||
PDF1.78 MB Related Files:
|
Application Note
|
||
PDF1.11 MB
|
Application Note
|
||
PDF870 KB Related Files:
|
Application Note
|
||
PDF645 KB
|
Application Note
|
||
Brochure
|
|||
Brochure
|
|||
Flyer
|
|||
Flyer
|
|||
Flyer
|
|||
Flyer
|
|||
General Reliability Literature
|
|||
PDF652 KB
|
Guide
|
||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
Other
|
|||
Product Change Notice
|
|||
PDF419 KB
|
Product Reliability Report
|
||
PDF2.82 MB
|
Release Note
|
||
PDF3.02 MB
|
Release Note
|
||
PDF2.64 MB
|
Release Note
|
||
PDF2.87 MB
|
Release Note
|
||
PDF2.32 MB
|
Release Note
|
||
PDF3.00 MB
|
Release Note
|
||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Tool News - Note
|
|||
Tool News - Note
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
PDF289 KB
|
White Paper
|
||
White Paper
|
|||
White Paper
|
|||
White Paper
|
|||
White Paper
|
|||
White Paper
|
Design & Development
Software & Tools
Software & Tools
| E2 emulator Lite [RTE0T0002LKCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX]Downloads: | Emulator | Renesas |
| E2 emulator [RTE0T00020KCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX]Downloads: | Emulator | Renesas |
| e² studio - information for RA FamilyEclipse-based Renesas integrated development environment (IDE). [Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ] | IDE and Coding Tool | Renesas |
| E2 Emulator (With Programming Function)On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RE, RX, RL78, RH850, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] | Programmer (Unit/SW) | Renesas |
| E2 Emulator Lite (With Programming Function)On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RX, RL78, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] | Programmer (Unit/SW) | Renesas |
| PG-FP6Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C] | Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI)Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0]Downloads: | Programmer (Unit/SW) | Renesas |
| Sensor Software Modules for Renesas MCU PlatformsMiddleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products. Downloads: | Sensor | Renesas |
| Flexible Software Package (FSP)FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required.Downloads:
Securing your IP and Protecting Sensitive DataHow to Solve the 6 Top Security Challenges of Embedded IoT DesignSecurity for the Connected WorldSecure Internet Communication for IoT ApplicationsThe Benefits of Using Arm® TrustZone® in Your Design
RA Azure IoT Cloud Connectivity SolutionRA Arm® TrustZone® Tooling PrimerMigrating Projects to New FSP VersionGetting Started with Low Power Applications Package Application ProjectFPB-RA6E1 Example Project BundleGetting Started with Low Power Applications Package for RA6M3 and RA4 Groups Application ProjectConverting Applications from e² studio to IAR or Keil for RA – Application NoteRA6 Secure Bootloader Using MCUboot and Internal Code FlashRA6 Secure Firmware Update using MCUboot and Flash Dual Bank – Application ProjectFPB-RA6E1 Example Project Bundle
|
Software Package | Renesas |
| RA Smart ConfiguratorThe Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain. | Solution Toolkit | Renesas |
| Security Key Management ToolKey wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys. Downloads: | Solution Toolkit | Renesas |
Sample Code
Sample Code
| Title | Type | Date | |
|---|---|---|---|
ZIP2.96 MB Related Files:
|
Sample Code |
||
[Toolchains=GCC Arm Embedded|9.3.1.20200408] [Software=RA FSP|v3.6.0] [Board=FPB-RA6E1] ZIP7.47 MB Related Files:
Compiler: GNU Arm Embedded IDE: e2 studio |
Sample Code |
||
ZIP4.73 MB Related Files:
|
Sample Code |
||
ZIP7.36 MB Related Files:
|
Sample Code |
||
MCUboot is a secure bootloader for 32-bit MCUs. It defines a common infrastructure for the bootloader,
defines system flash layout on microcontroller systems, and provides a secure bootloader that enables easy
software update
[Toolchains=GCC Arm Embedded|9.3.1.20200408] [Software=RA FSP|v4.2.0] [Board=EK-RA6M3;EK-RA6M4] ZIP29.00 MB Related Files:
Compiler: GNU Arm Embedded IDE: e2 studio |
Sample Code |
||
[Software=FSP|v4.0.0] ZIP29.61 MB Related Files:
Compiler: GNUARM-NONE IDE: e2 studio |
Sample Code |
||
ZIP9.12 MB |
Sample Code |
||
Related Files:
Function: Security Compiler: GNU ARM Embedded, ICCARM IDE: e2 studio, IAR EWARM |
Sample Code |
||
ZIP2.01 MB Related Files:
IDE: e2 studio |
Sample Code |
||
[Toolchains=GCC Arm Embedded|9.2.1.20191025] [Software=RA FSP|v2.0.0] [Board=EK-RA6M4] ZIP881 KB Related Files:
Compiler: GNU Arm Embedded IDE: e2 studio |
Sample Code |
Boards & Kits
Boards & Kits
RA6E1 Fast Prototyping Board
The RA6E1 Fast Prototyping Board comes equipped with a R7FA6E10F2CFP microcontroller and is an evaluation board specialized for prototype development for a variety of...
Featured Documents:
RA6E1 Voice User Reference Kit
Easy-to-use hardware platform for Voice User Interface (VUI) solutions based on the RA6E1 MCU.
This VUI partner enabled solution is based on the RA family of 32-bit...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
PLP |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
RTC |
LVD |
DMA |
I/O Ports |
Timer |
ADC |
DAC |
CAN Interface |
Ethernet |
USB |
Human Machine Interface |
Bit Size |
CPU |
Temp. Range |
Security & Encryption |
Buy / Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2037 Dec | 1024 | 8 | 256 | 100 | LFQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 76 | 16-bit x 4-ch, 32-bit x 2-ch | 12-bit x 11-ch | 12-bit x 1-ch | CAN x 1ch | Yes | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| 2037 Dec | 512 | 8 | 256 | 100 | LFQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 76 | 16-bit x 4-ch, 32-bit x 2-ch | 12-bit x 11-ch | 12-bit x 1-ch | CAN x 1ch | Yes | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| 2037 Dec | 1024 | 8 | 256 | 64 | LFQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 42 | 16-bit x 4-ch, 32-bit x 2-ch | 12-bit x 7-ch | 12-bit x 1-ch | CAN x 1ch | No | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| 2037 Dec | 512 | 8 | 256 | 64 | LFQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 42 | 16-bit x 4-ch, 32-bit x 2-ch | 12-bit x 7-ch | 12-bit x 1-ch | CAN x 1ch | No | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| N/A | 1024 | 8 | 256 | 48 | HWQFN | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 28 | 16-bit x 3-ch, 32-bit x 1-ch | 12-bit x 5-ch | 12-bit x 1-ch | CAN x 1ch | No | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| N/A | 512 | 8 | 256 | 48 | HWQFN | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 28 | 16-bit x 3-ch, 32-bit x 1-ch | 12-bit x 5-ch | 12-bit x 1-ch | CAN x 1ch | No | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| N/A | 1024 | 8 | 256 | 100 | LFQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 76 | 16-bit x 4-ch, 32-bit x 2-ch | 12-bit x 11-ch | 12-bit x 1-ch | CAN x 1ch | Yes | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID | |||
| N/A | 1024 | 8 | 256 | 100 | LFQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 76 | 16-bit x 4-ch, 32-bit x 2-ch | 12-bit x 11-ch | 12-bit x 1-ch | CAN x 1ch | Yes | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| N/A | 512 | 8 | 256 | 100 | LFQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 76 | 16-bit x 4-ch, 32-bit x 2-ch | 12-bit x 11-ch | 12-bit x 1-ch | CAN x 1ch | Yes | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| N/A | 1024 | 8 | 256 | 64 | LFQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 42 | 16-bit x 4-ch, 32-bit x 2-ch | 12-bit x 7-ch | 12-bit x 1-ch | CAN x 1ch | No | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| N/A | 512 | 8 | 256 | 64 | LFQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 42 | 16-bit x 4-ch, 32-bit x 2-ch | 12-bit x 7-ch | 12-bit x 1-ch | CAN x 1ch | No | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| N/A | 1024 | 8 | 256 | 48 | HWQFN | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 28 | 16-bit x 3-ch, 32-bit x 1-ch | 12-bit x 5-ch | 12-bit x 1-ch | CAN x 1ch | No | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||
| N/A | 512 | 8 | 256 | 48 | HWQFN | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 28 | 16-bit x 3-ch, 32-bit x 1-ch | 12-bit x 5-ch | 12-bit x 1-ch | CAN x 1ch | No | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Companion Products
play_circle_filledVideos & Training
RA6E1 200 MHz Arm® Cortex®-M33 Entry-line MCU with Unparalleled Performance and Connectivity Options
Overview of the RA6E1 32-bit MCU group featuring an optimized balance of high performance and connectivity options for smart systems and cloud gateways.
Video List
News & Blog Posts
| The RA MCU Family is Made to Help Solve Your Design Challenges | Blog Post | Sep 25, 2021 |
Pin Count / Memory Size
| Flash/RAM | 1MB / 256kB | ● | ● | ● |
|---|---|---|---|---|
| 512kB / 256kB | ● | ● | ● | |
| Pin Count Package Size Pitch |
48-pin QFN 7x7mm 0.5mm |
64-pin LQFP 10x10mm 0.5mm |
100-pin LQFP 14x14mm 0.5mm |
|
