Overview
Description

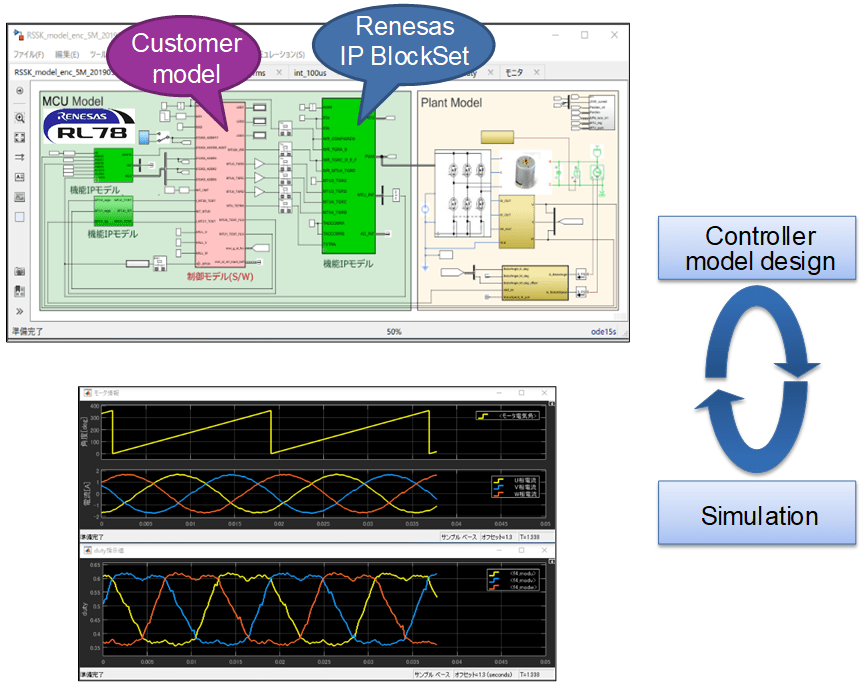

This is a MATLAB®/Simulink® model of the peripheral functions installed on the actual device. It provides simulation blocks that reproduce hardware for motor/inverter control with high accuracy. By combining this blockset and user model, it is possible to examine and check the operation of an actual system on the model.
MATLAB®, Simulink® are trademarks or registered trademarks of The MathWorks, Inc.
Features
- Provides Simulink models of the peripheral functions installed on the actual device.
- Timer RDe (TRD)
- 12-bit A/D Converter (AD)
- Application Accelerator Unit (AAU)
Target Devices
