Name: RV1S9160A - High CMR, 15Mbps CMOS Output, Low Forward Current(IF) 3.3V/5V Operation, 5-PIN SOP Photocoupler
Brand: Renesas Electronics Corporation
SKU: RV1S9160A - High CMR, 15Mbps CMOS Output, Low Forward Current(IF) 3.3V/5V Operation, 5-PIN SOP Photocoupler
Price: 0.84289 USD
Availability: InStock

Features

High-Speed communication (15 Mbps）
High temperature operation (-40 to +125°C）
High common mode (dv/dt) tolerant (CM_H, CM_L = ±50 kV/μs MIN.）
High isolation voltage (BV = 3750 Vr.m.s.）

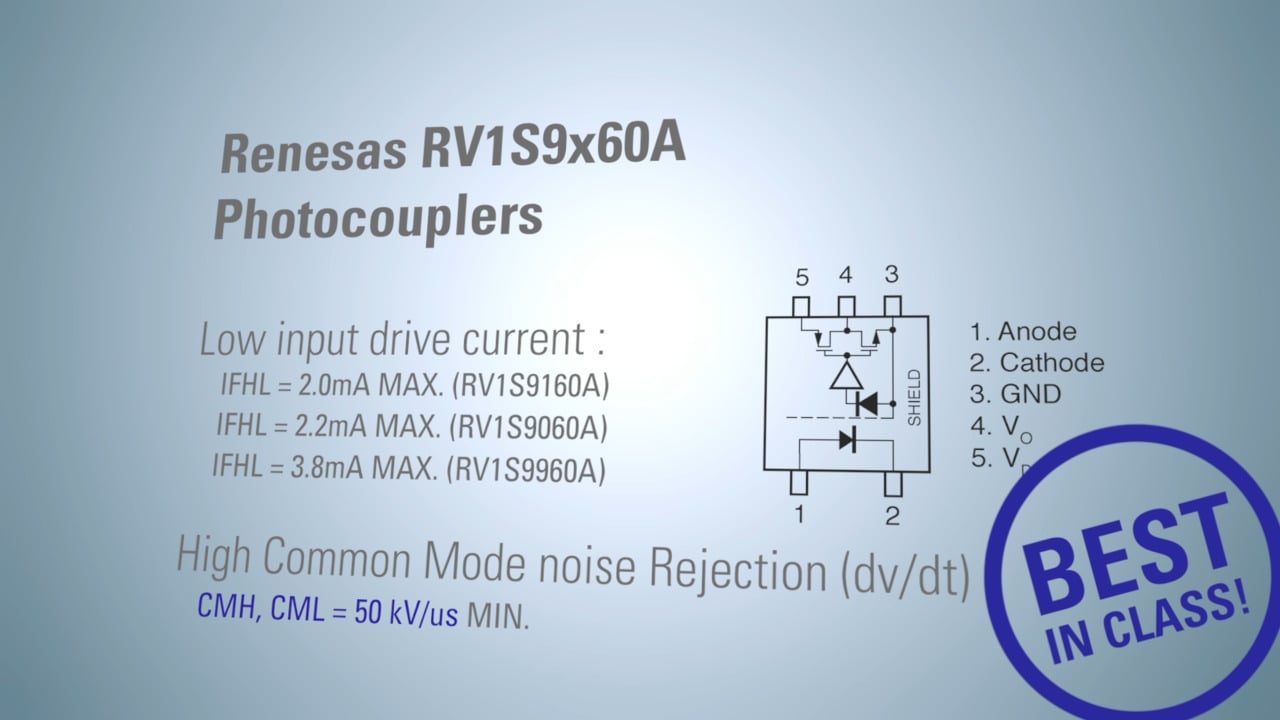

Low input drive current (IFHL = 2.0 mA MAX.)
Low voltage power supply operation (VDD = 2.7 V~5.5 V）
Low pulse width distortion (PWD = 20 ns MAX.)
Ordering number of tape product : RV1S9160ACCSP-100x#KC0：2500 pcs/reel
Pb free product
Safety standards approval UL ：UL1577, Double protection CSA ：CAN/CSA-C22.2 No.62368-1, Basic insulation VDE ：DIN EN 60747-5-5 (Option)

Find Other Products in High-Speed CMOS Output Photocouplers / Optocouplers

Description

The RV1S9160A is a photocoupler featuring high-speed switching up to 15Mbps with active low output logic which consist of an AlGaAs LED on the input side and an integrated circuit with a photodiode on the output. This product enables to low current operation on 3. 3V/5V power supply with high noise-tolerant CMR:50kV/us min. and high temperature operation up to Ta=125°C in logic interface circuit.

Parameters

Attributes	Value
Channels (#)	1
Data Speed (bps)	15 Mbps
Output Type	CMOS
Absolute max. rated Power Supply Voltage (V)	6
Isolation Voltage (Vrms)	3750
IDDH max. (mA)	2
IDDL max. (mA)	2
VOL max. (V)	0.1
IFHL (Max) (mA)	2
tPHL/tPLH max. (ns)	60/60
SW PWD max. (ns)	20
CMTI min. (kV/µs)	50
Creepage Distance (mm)	4.2
Safety Standard UL (UL1577)	Approved
Safety Standard VDE (EN IEC 60747-5-5)	Approved
Safety Standard CSA (CAN/CSA C22.2 62368-1)	Approved
