Overview
Description
The SLG46855 programmable mixed-signal matrix IC provides a small, low-power component for commonly used mixed-signal functions. The users creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG46855. This highly versatile device allows for a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.
Features
- Read Back Protection (Read Lock)
- Power Supply: 2.5V (±8%) to 5V (±10%)
- Operating Temperature Range: -40°C to 85°C
- RoHS-Compliant/Halogen-Free

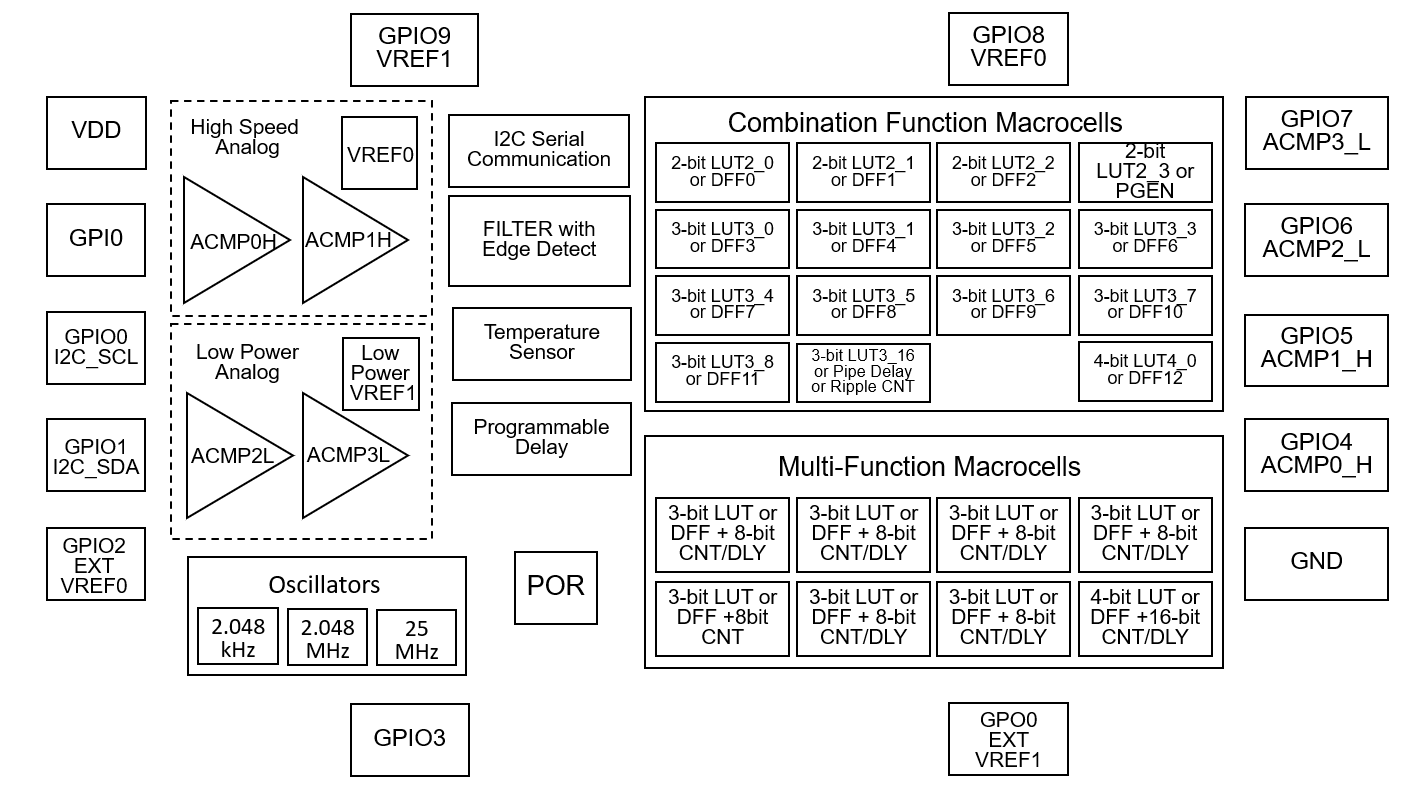

- Macrocells Overview
- Two High-Speed General-Purpose Analog Comparators (ACMPxH)
- Two Low-Power General-Purpose Analog Comparators (ACMPxL)
- Two Voltage References (Vref)
- Two Vref Outputs
- Fifteen Combination Function Macrocells
- Three Selectable DFF/Latch or 2-bit LUTs
- One Selectable Programmable Pattern Generator or 2-bit LUT
- Nine Selectable DFF/Latch or 3-bit LUTs
- One Selectable Pipe Delay or Ripple Counter or 3-bit LUT
- One Selectable DFF/Latch or 4-bit LUTs
- Eight Multi-Function Macrocells
- Seven Selectable DFF/Latch or 3-bit LUTs + 8-bit Delay/Counters
- One Selectable DFF/Latch or 4-bit LUT + 16-bit Delay/Counter
- Serial Communications: I2C Protocol Interface
- Programmable Delay with Edge Detector Output
- Deglitch Filter or Edge Detector
- Three Oscillators (OSC)
- 2.048kHz Oscillator
- 2.048MHz Oscillator
- 25MHz Oscillator
- Analog Temperature Sensor
- Power-On Reset (POR)
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 2.43 MB | |
| Application Note | PDF 634 KB | |
| Application Note | PDF 373 KB | |
| Application Note | PDF 1.76 MB | |
| Application Note | PDF 1.49 MB | |
| Device Errata | PDF 400 KB | |
| Application Note | PDF 390 KB | |
7 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Go Configure Software Hub Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
|
Software Package | Renesas |
1 item
|
||
Boards & Kits
Development
SLG46855V-SKT
Active
GreenPAK SLG46855 Development Kit with Socket Adapter
The SLG46855V-SKT includes the SLG4SA14-16x20 socket adapter and 50 SLG46855V samples.
Development
SLG46855V-DIP
Active
GreenPAK SLG46855 20-Pin DIP Prototyping Board
The SLG46855V-DIP 20-pin DIP prototyping board is perfect for breadboarding and fast prototypes. It requires the DIP Adapter (SLG4SA-DIP) to use it with the Advanced Development Board.
Recommended Documents:
Development
SLG4DVKADV
Active
GreenPAK Advanced Development Board
The GreenPAK Advanced Development Board provides full programming, emulation, and testing functions for the GreenPAK devices - for use with SLG46xxxX-SKT / SLG47xxxV-SKT socket kits.
It works in tandem with the GreenPAK Designer software (built into Go Configure™ Software Hub), and it allows...
Recommended Documents:
Test this Board Remotely
Available on Lab on the Cloud, use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Development
SLG4SA-DIP
Active
GreenPAK DIP Adapter for GreenPAK Advanced Development Board
The GreenPAK™ DIP Adapter for the GreenPAK Advanced Development Board allows for using the SLG46xxxV-DIP and SLG47xxxV-DIP prototyping boards with the GreenPAK Advanced Development Board. It acts as the bridge between the advanced and DIP development platforms.
Recommended Documents:
Development
SLG4DVKGSD
Active
GreenPAK Serial Debugger Board (GSD)
GreenPAK Serial Debugger (GSD) device can be used for programming GreenPAK products with multiple-time Non-Volatile Memory (NVM) or for configuring the interconnect logic, the IOs, and the macrocells of all GreenPAK chips with I²C interface. It is very helpful in the late stages of development...
Recommended Documents:
Development
SLG4DVKLITE
Active
GreenPAK Lite Development Board
The GreenPAK Lite Development Board provides full programming, emulation, and testing functions for GreenPAK devices, working in a pair with the Go Configure™ Software Hub. Board functionality is provided by the RX66T MCU from Renesas.
Recommended Documents:
Development
SLG4DVKLITEINTRO-KIT
Active
GreenPAK Introduction Kit Lite
The SLG4DVKLITEINTRO GreenPAK™ Introduction Kit is perfect for customers starting new development with the GreenPAK programmable mixed-signal products.
GreenPAK Introduction Kit includes:
- SLG4DVKLITE with a USB...
Recommended Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
Product Options
