Overview
Description

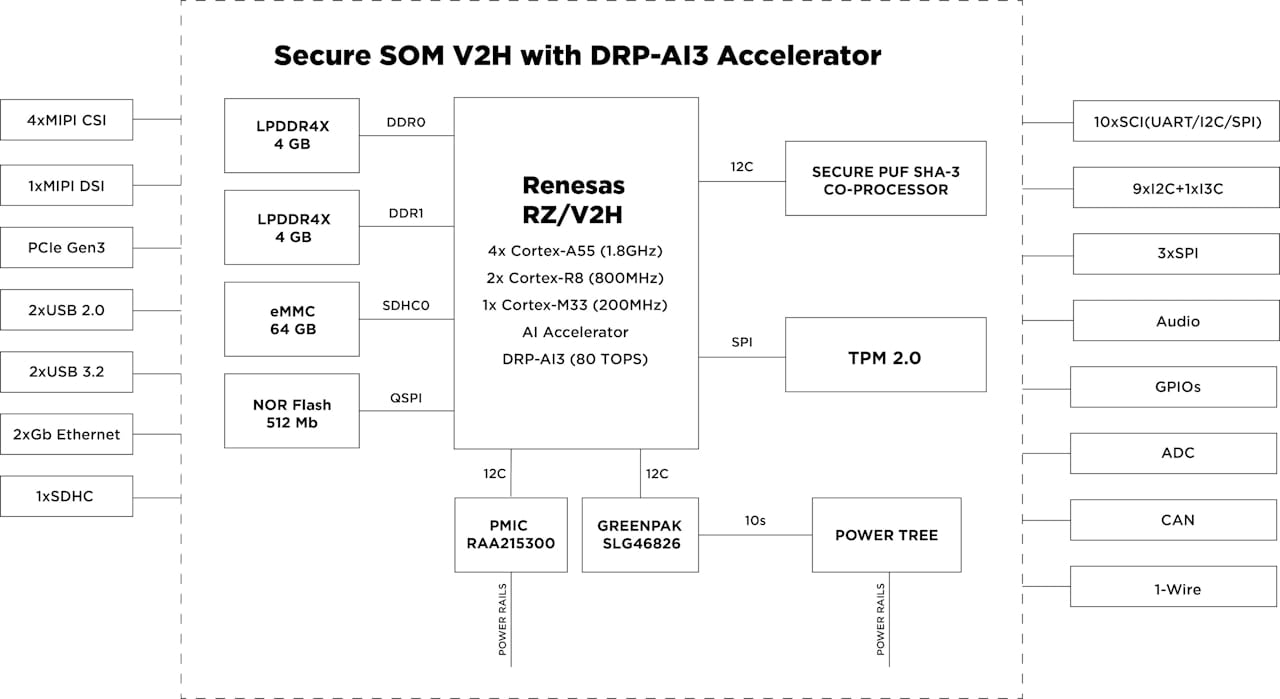

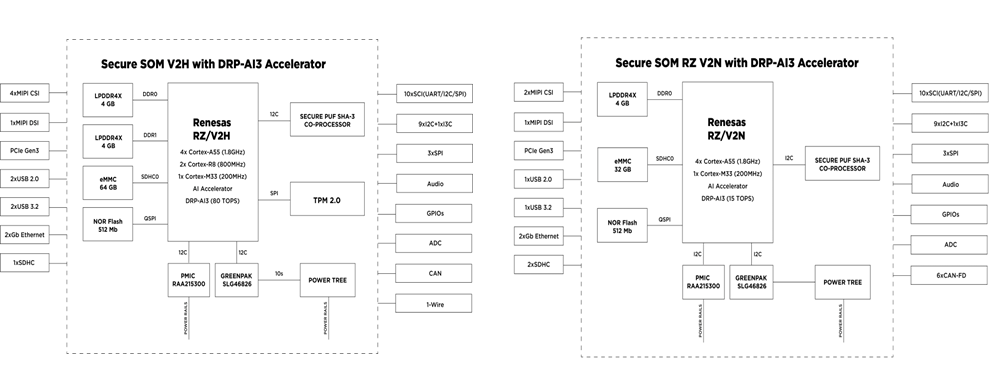

The OneKiwi Secure V2H SOM (System on Module) is a high-performance, cost-effective module designed for a range of AI-driven vision applications. Powered by a Renesas RZ/V2H processor, the SOM is also integrated with an advanced security IP module and PUF secure SHA-3 coprocessor for local artificial intelligence (AI) driven data processing through running applications in a secured environment.
Features
- RZ/V2H quad-core Cortex®-A55 1.8GHz, Cortex-M33 CPU, Dual Cortex-R8, VPU, ISP, GPU
- DRP-AI3 as high-speed AI inference processing and excellent power efficiency
- Storage eMMC 64GB and RAM 8GB LPDDR4X
- Advanced security IP module protecting integrity and authenticity of embedded systems
- Small form factor (W x L x H): 65mm x 40mm x 6mm
- Form factor can be customized to SMARC, OSM open standard
- Support additional hole for heatsink mounting
- Supports Yocto Linux and Ubuntu 22.04
