Features
- 6 differential 3.3V LVPECL outputs1,244.16 / 622.08MHz
- 1,244.16 / 622.08MHz 622.08 / 311.04MHz
- 311.04 / 155.52MHz 155.52 / 77.76MHz
- 77.76/38.88MHz
- Three selectable differential reference clock inputsClock frequency range: 19MHz to 622MHz
- REF_CLKx, nREF_CLKx pairs can accept the followingdifferential input level: LVPECL
- Intrinsic jitter: 0.017mUIRMS @ 622MHz
- Output skew: 200ps (maximum)
- Optional external VCXO possible
- Simple external loop filter
- Lock detect output signal
- Full 3.3V operating supply
- Low power operation 0.6W (typical)
- -40°C to 85°C ambient operating temperature
- Available in lead-free (RoHS 6) packages
Description

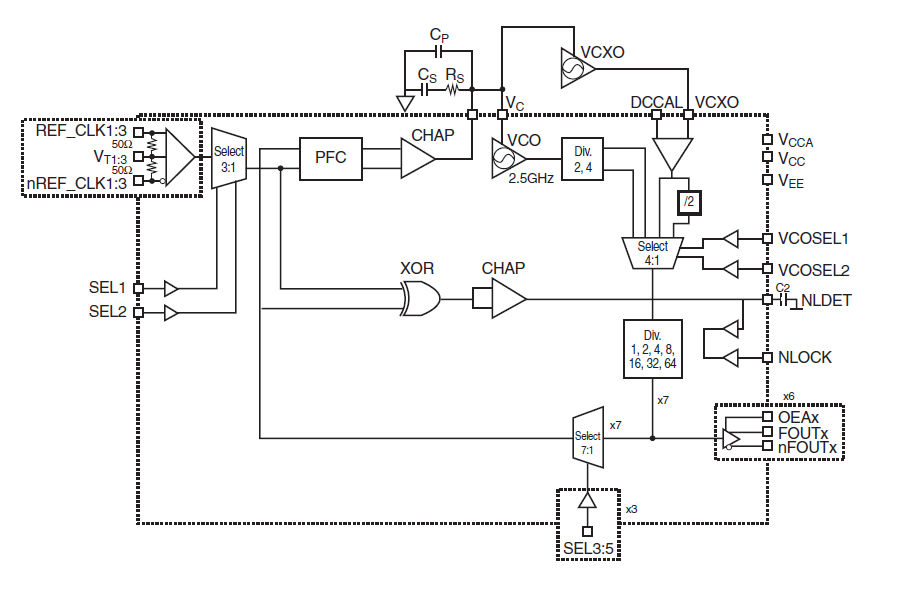

The 843S06 is a low voltage, low skew 3.3V LVPECL Clock Synthesizer. The device targets clock distribution in SDH/SONET telecommunication systems but is well suited for a wide range of applications requiring high performance high-speed clock synthesis. The device implements a fully integrated multiplying PLL including:
