Package Information
| Lead Count (#) | 48 |
| Pkg. Code | PVG48 |
| Pitch (mm) | 0.64 |
| Pkg. Type | SSOP |
| Pkg. Dimensions (mm) | 15.9 x 7.5 x 2.3 |
Environmental & Export Classifications
| Pb (Lead) Free | Yes |
| ECCN (US) | NLR |
| HTS (US) | 8542390000 |
| Moisture Sensitivity Level (MSL) | 1 |
Product Attributes
| Lead Count (#) | 48 |
| Pb (Lead) Free | Yes |
| Carrier Type | Tube |
| Bus Width (bits) | 16 |
| Core Voltage (V) | 5 |
| Function | Buffer/Line Driver |
| Length (mm) | 15.9 |
| MOQ | 300 |
| Moisture Sensitivity Level (MSL) | 1 |
| Package Area (mm²) | 119.3 |
| Pb Free Category | e3 Sn |
| Pitch (mm) | 0.64 |
| Pkg. Dimensions (mm) | 15.9 x 7.5 x 2.3 |
| Pkg. Type | SSOP |
| Qty. per Carrier (#) | 30 |
| Qty. per Reel (#) | 0 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Speed Grade | A |
| Tape & Reel | No |
| Temp. Range | -40 to 85°C |
| Thickness (mm) | 2.3 |
| Width (mm) | 7.5 |
Description

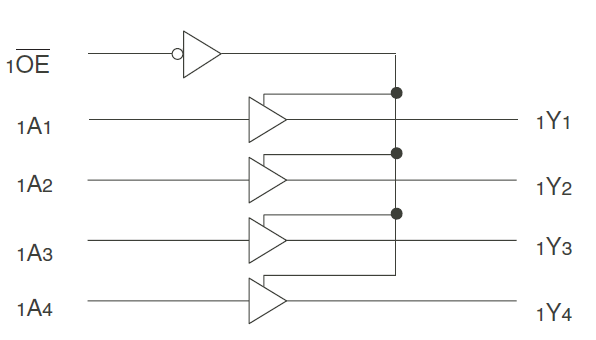

The 74FCT166244T 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation. The three-state controls allow independent 4-bit, 8-bit or combined 16-bit operation. The 74FCT166244T operates at -40C to +85C
