Features
- True Dual-Ported memory cells which allow simultaneous access of the same memory location
- Flow-through or Pipelined output mode on either port via the FT/PIPE pin
- Counter enable and reset features
- Dual chip enables allow for depth expansion without additional logic
- Full synchronous operation on both ports
- Separate upper-byte and lower-byte controls for multiplexed bus and bus matching compatibility
- LVTTL- compatible, single 3.3V (±0.3V) power supply
- Available in a 100-pin TQFP and fpBGA packages
- Industrial temperature range (–40C to +85C) is available

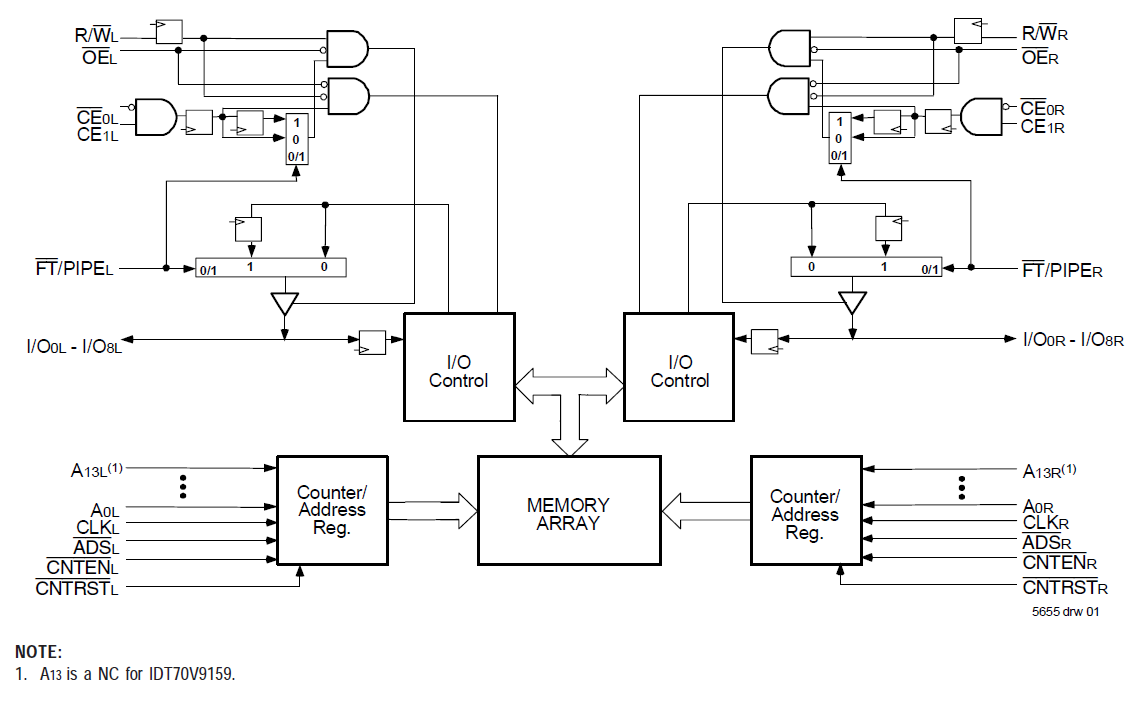

70V9169 - Block Diagram
Description
The 70V9169 is a high-speed 16K x 9 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode.
| Part Number | Status | Samples | Stock | Package | Lead Count (#) | Temp. Grade | Pb (Lead) Free | Carrier Type |
|---|---|---|---|---|---|---|---|---|
| 70V9169L6BF | Obsolete | N/A | Out of Stock | CABGA | 100# | C | No | Tray |
| 70V9169L6PF | Obsolete | N/A | Out of Stock | TQFP | 100# | C | No | Tray |
| 70V9169L6PF8 | Obsolete | N/A | Out of Stock | TQFP | 100# | C | No | Reel |
| 70V9169L6PFG | Obsolete | N/A | Out of Stock | TQFP | 100# | C | Yes | Tray |
| 70V9169L6PFG8 | Obsolete | N/A | Out of Stock | TQFP | 100# | C | Yes | Reel |
| 70V9169L7BF | Obsolete | N/A | Out of Stock | CABGA | 100# | C | No | Tray |
| 70V9169L7BFI | Obsolete | N/A | Out of Stock | CABGA | 100# | I | No | Tray |
| 70V9169L7PF | Obsolete | N/A | Out of Stock | TQFP | 100# | C | No | Tray |
| 70V9169L7PF8 | Obsolete | N/A | Out of Stock | TQFP | 100# | C | No | Reel |
| 70V9169L7PFGI | Obsolete | N/A | Out of Stock | TQFP | 100# | I | Yes | Tray |
| 70V9169L7PFGI8 | Obsolete | N/A | Out of Stock | TQFP | 100# | I | Yes | Reel |
| 70V9169L7PFI | Obsolete | N/A | Out of Stock | TQFP | 100# | I | No | Tray |
| 70V9169L7PFI8 | Obsolete | N/A | Out of Stock | TQFP | 100# | I | No | Reel |
| 70V9169L9BF | Obsolete | N/A | Out of Stock | CABGA | 100# | C | No | Tray |
| 70V9169L9PF | Obsolete | N/A | Out of Stock | TQFP | 100# | C | No | Tray |
| 70V9169L9PF8 | Obsolete | N/A | Out of Stock | TQFP | 100# | C | No | Reel |
