This Low-Voltage Motor Controller for 2/3 Wheelers reference design features a traction motor inverter capable of driving motors up to 3kW at 48V, providing a complete demonstration platform for motor control applications. Deliverables include inverter hardware design files (schematics and Gerber) and peripheral sample code. The application accelerator unit (AAU) handles core field-oriented control (FOC) functions, complemented by application-level software (ASW) generated via MATLAB-based model development for system management. GreenPAK™ ICs support phase overcurrent protection and signal level shifting, while flux concentrators enable accurate phase current sensing. Typical applications include low-voltage traction drives for electric 2- and 3-wheelers such as e-scooters, e-bikes, and e-rickshaws.

Features

The power stage can drive up to a 3kW motor.
Support is available to scale the 48V power stage of the inverter, as per customer requirements.
GreenPAK ICs are used for low BOM count phase overcurrent fault detection.
The PMIC enhances safety and reliability, meeting ASIL B standards for critical automotive applications.

Applications

Electric & Hybrid Vehicles (EV/HEV)

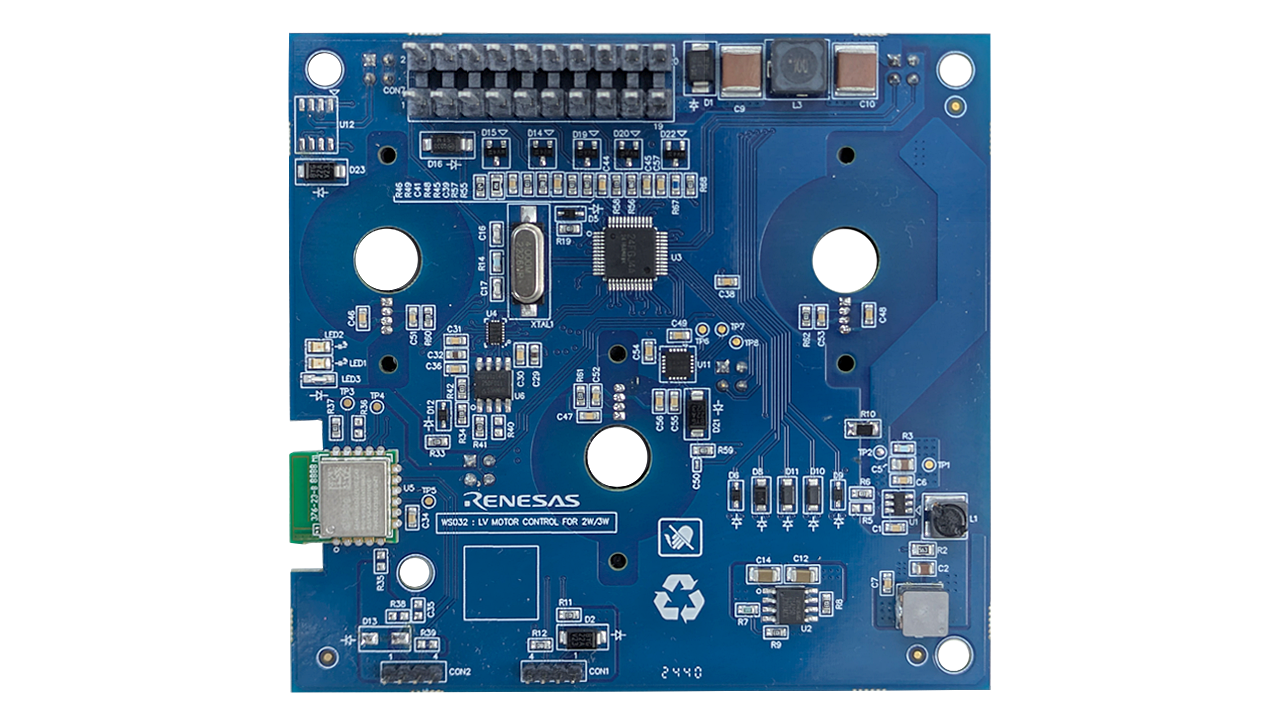

WS032-LVMOTCTL-REFZ Low-Voltage Motor Controller Board - Top

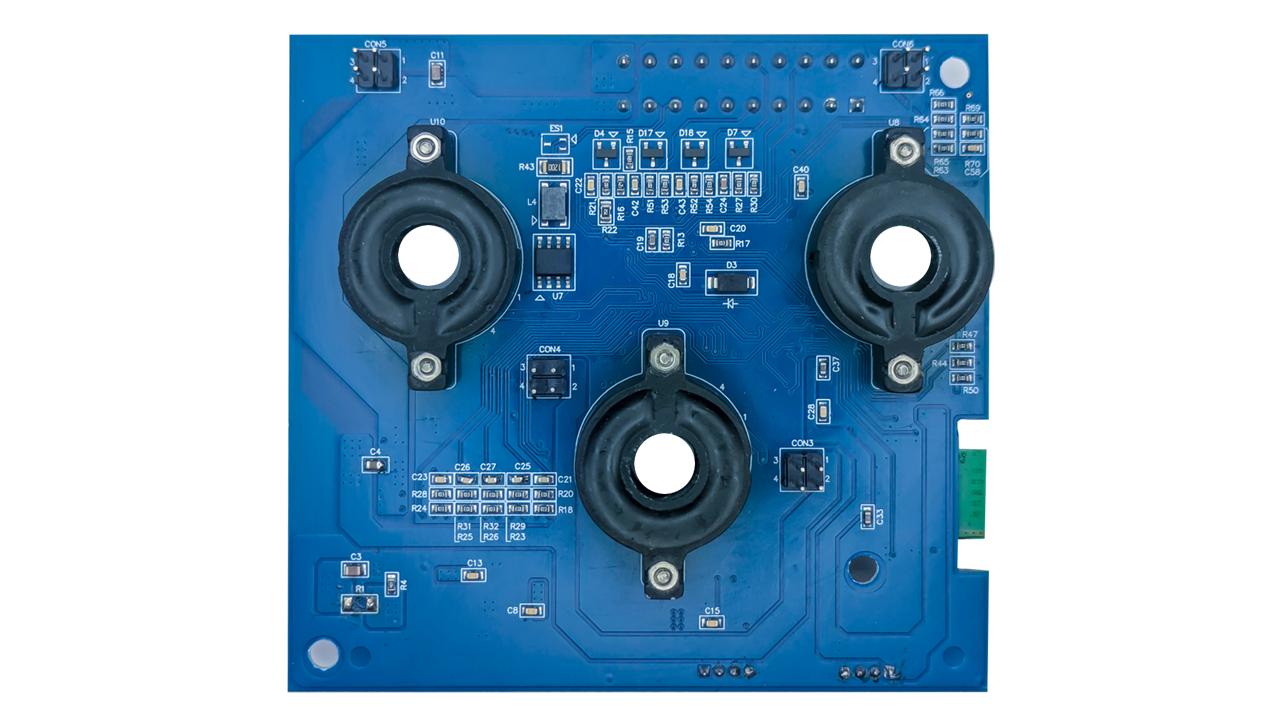

WS032-LVMOTCTL-REFZ Low-Voltage Motor Controller Board - Bottom

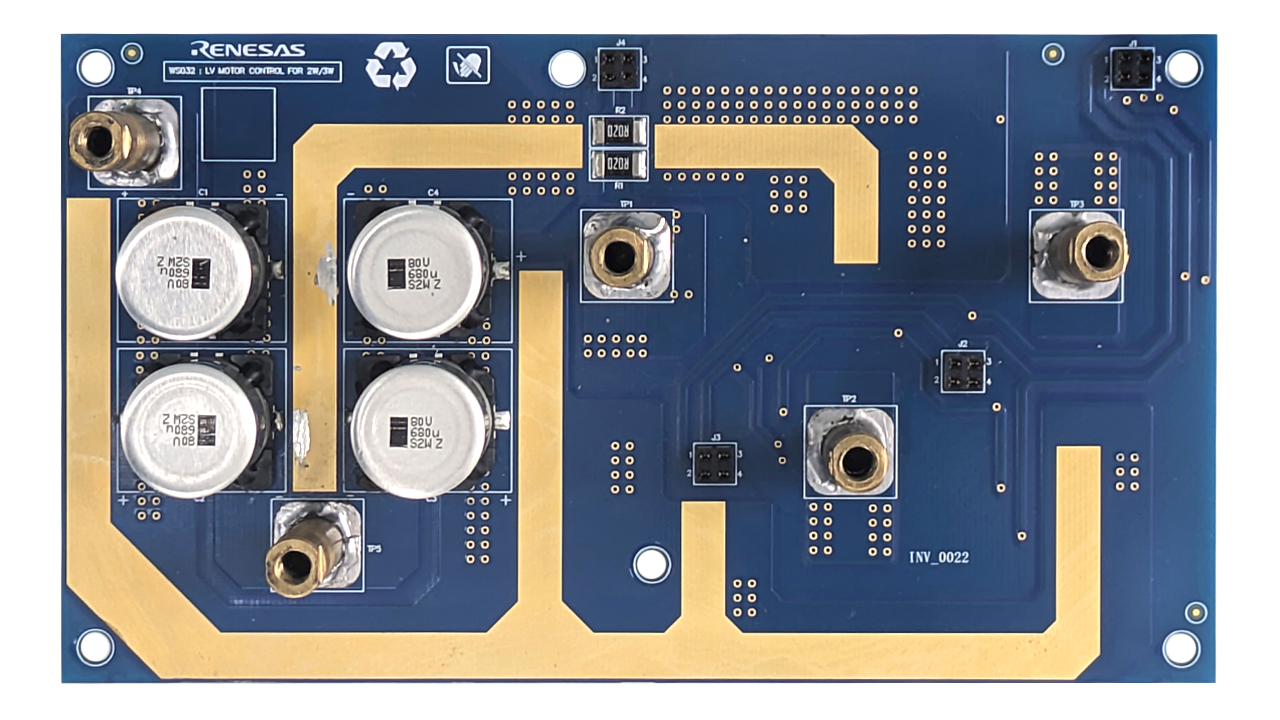

WS032-LVMOTCTL-REFZ Low-Voltage Motor Controller Power Board - Top

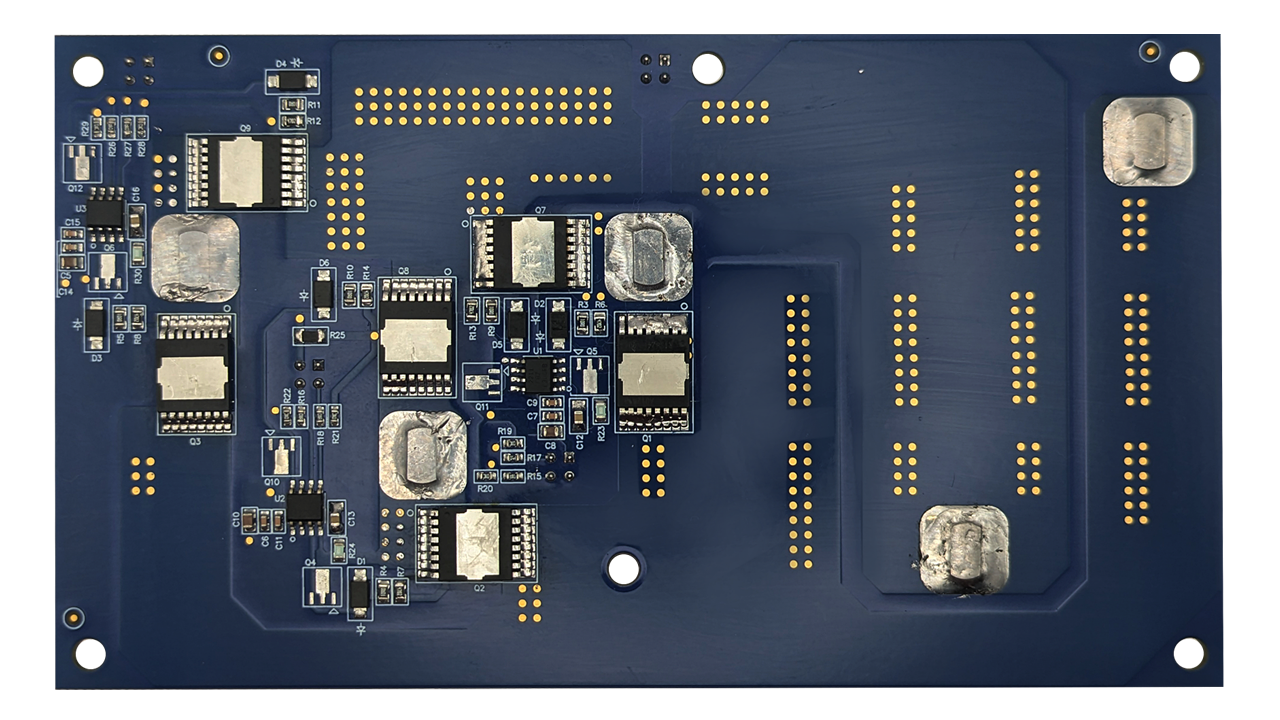

WS032-LVMOTCTL-REFZ Low-Voltage Motor Controller Power Board - Bottom

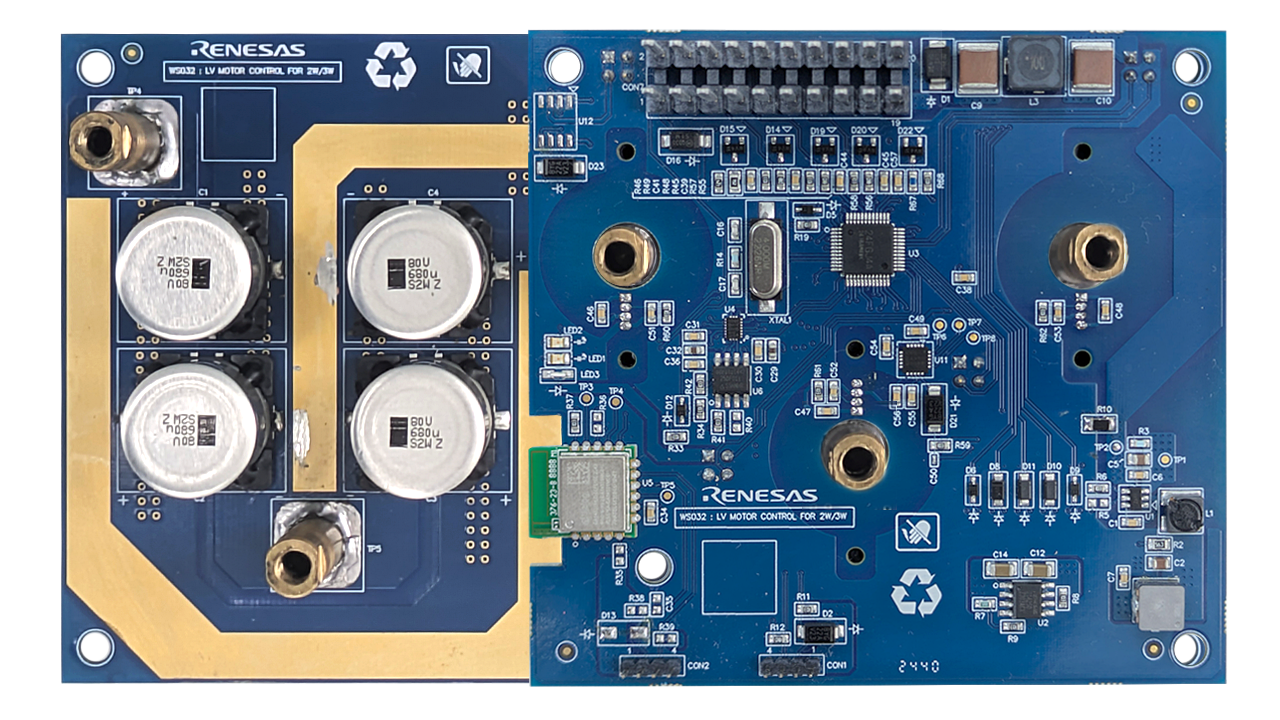

WS032-LVMOTCTL-REFZ Low-Voltage Motor Controller Power Board Connected to Motor Controller Board

Products in the Design

3D illustration featuring top and bottom views of module ic chip package with 16 lead count

Bluetooth Low Energy

DA14531MOD

SmartBond TINY Bluetooth Low Energy Module

Datasheet

3D illustration featuring top and bottom views of HWQFN IC chip package with 32 lead count.

RL78 Low-Power 8 & 16-Bit MCUs

RL78/F24

Next Generation Actuator and Sensor Microcontroller

Datasheet

AT25DF011	1 Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory with Dual Read Support
HIP2211	100V, 3A Source, 4A Sink, High Frequency Half-Bridge Drivers with HI/LI Input
RAA211230	24V, 3A Synchronous Buck Regulator with Current Mode COT
RAA214250	20V, 500mA Linear Regulator
RBA190N15YAPF-6UA04	150V, 190A, 3.9mΩ, REXFET-1 N-Channel Power MOSFET in TOLT for Automotive
SLG46538	GreenPAK Programmable Mixed-Signal IC, Dual Supply VDD, 17 GPIOs, 4 ACMPs, I2C, ASM
SLG46625-A	Automotive GreenPAK Programmable Mixed-Signal IC (Grade 1), VDD Range: 1.71-5V, 18 GPIOs, 6 ACMPs, ADC (8-bit, SAR), SPI
